Summary of Contents for GoldX PowerCore GXSE-R100

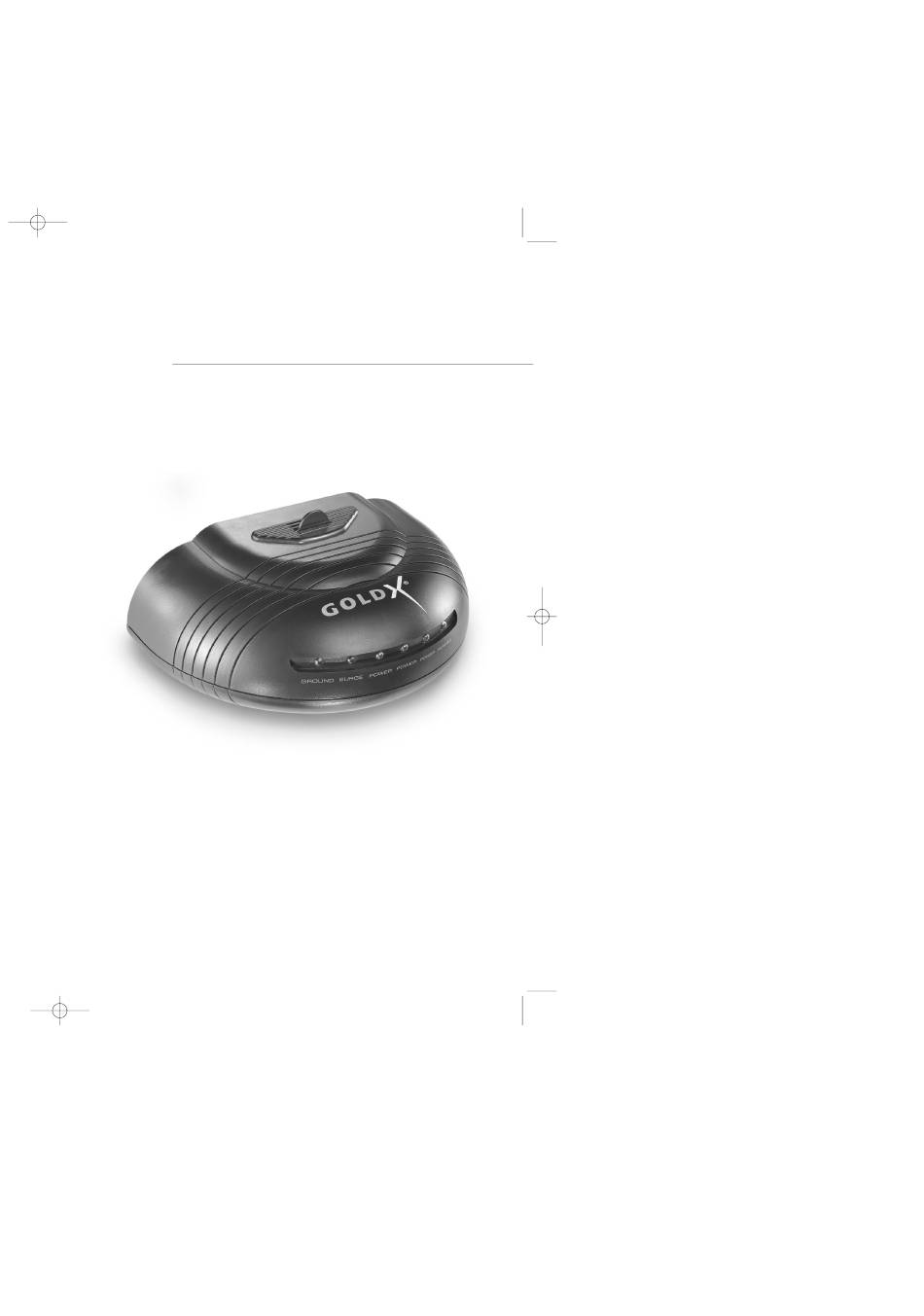

- Page 1 PowerCore System...

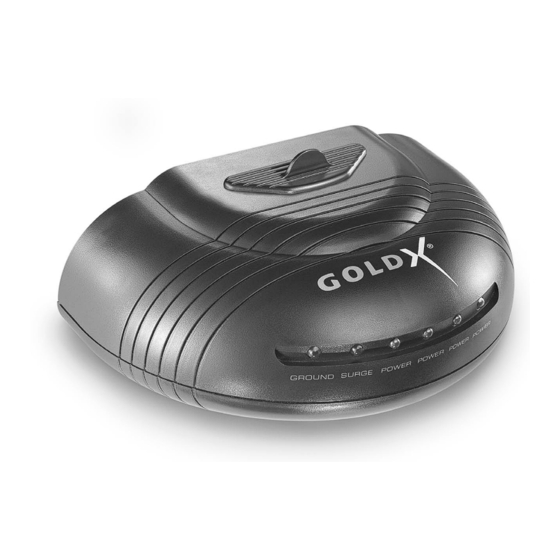

- Page 2 Thank you for purchasing the GoldX PowerCore System. The PowerCore System is the patented and patent-pending centerpiece of the GoldX PowerCore series of products. It is a modular surge protector with interchangeable modules for surge protection on your power, phone, cable and Ethernet lines The PowerCore System also is a hub power supply for the PowerCore series of devices.
-
Page 3: Safety Precautions
Safety Precautions Please review all instructions before installing the PowerCore System • Only for use indoors in a dry environment. • All household wiring must be properly grounded. • Do not rest any object on the power cord. • Do not spill any liquid on the PowerCore System. •... -
Page 4: Using The Mounting Bracket
Using the Mounting Bracket – If you choose to use the Mounting Bracket with the PowerCore System, you will need at least four standard metal screws. – Place the Mounting Bracket in the preferred location. – Insert the screws into the slots on the bottom of the Mounting Bracket. –... - Page 5 Using the LAN Module If you plan to use a device that requires a RJ45 patch cable, please configure the cables as shown below: Secondary Device Computer Insert the RJ45 patch cable leading from the outside into the secondary device (i.e.
- Page 6 Removing the PowerCore System Modules Surge Protection Module Pull the latch slightly away from the module. Place your finger underneath the latch and push upward until the Surge Protection Module is partially ejected from the slot. Remove the Surge Protection Module from the PowerCore System...
- Page 7 PowerCore System that provides 56 Watts of power for multiple PowerCore devices. All GoldX PowerCore devices feature a DC Plug and a DC Jack in the center of the unit to pass power up to the next device, as needed.
-
Page 8: Troubleshooting
The Grounding LED is The PowerCore System is connected not on. into a 2-prong wall power outlet. Please connect the PowerCore System directly into a 3-prong grounded wall power outlet. Contacting GoldX Products Internet: www.goldxproducts.com Technical Support: techsupt@goldxproducts.com Sales: info@goldxproducts.com... - Page 9 Reimbursement. If all of the above requirements are met and the GoldX PowerCore System failed to provide protection, JDI will reimburse the claimant for the connected equipment at fair market value or for the repair of the connected equipment at customary and reasonable rates (at JDI’s option) up to the maximum U.S.
- Page 10 Appendix A Glossary High-speed data transmission medium Broadband Designed by Apple Computer , FireWire (also Firewire ® known as i.Link ® and IEEE-1394) is a high-speed technology for connecting computers and consumer electronic devices. Abbreviation of Local Area Network. A LAN is a system that links together electronic office equipment such as computers and printers to form a network within a building.
- Page 11 Appendix B USB Devices GXUSB-104 4 Port USB Hub GX2A5V 5V, 2A Power Adapter for the GXUSB-104 GXU-2116 16ft. (4.6m) USB Active Extension Cable GXMU-3000 USB PC-PC Network Cable GXMU-1200 6ft. (1.8m) USB Serial Adapter GXMU-1284 6ft. (1.8m) USB IEEE 1284 Printer Adapter FireWire Devices GXF-2115 15ft.
