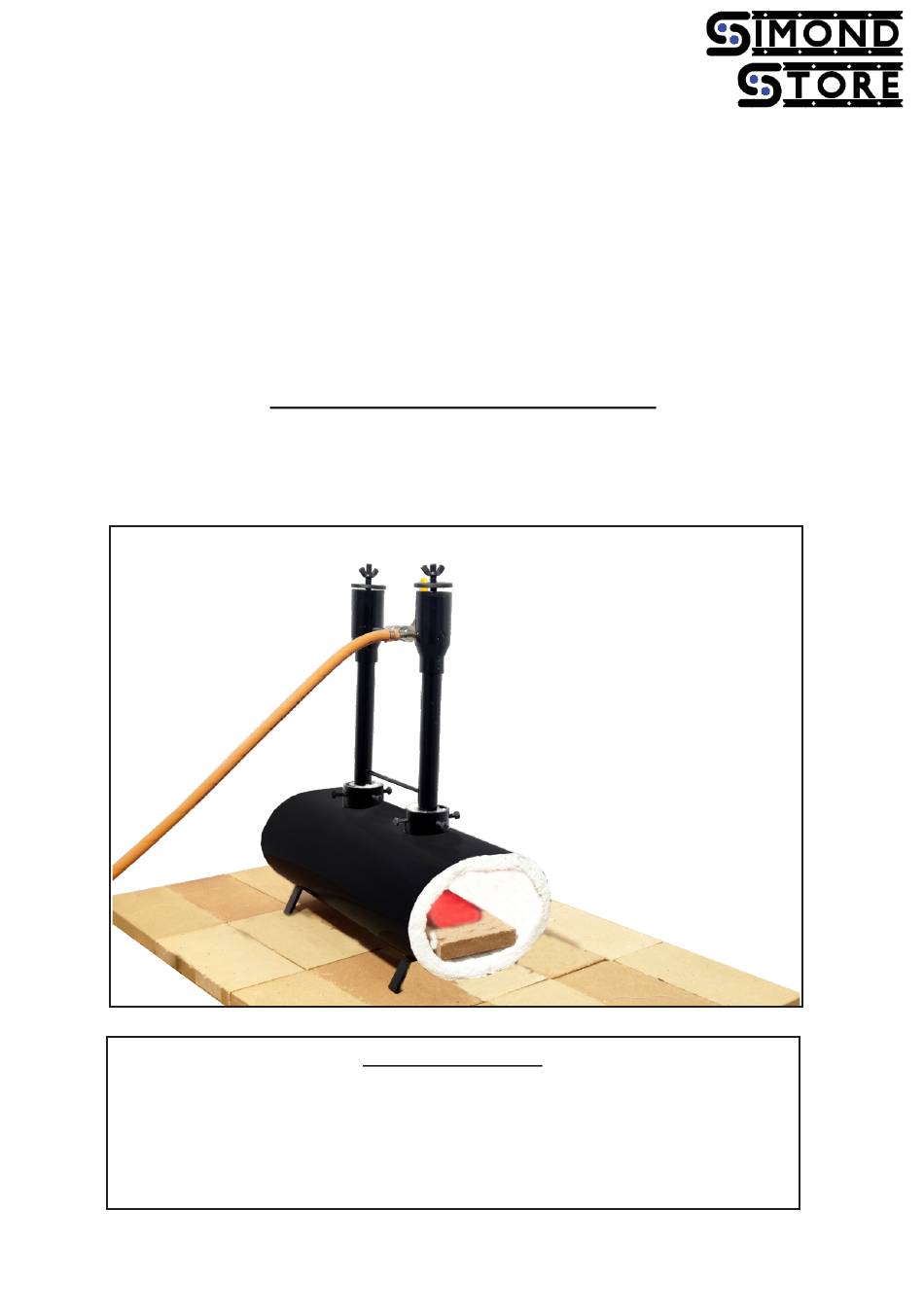

- Page 1 USER MANUAL & ASSEMBLY INSTRUCTIONS PROPANE FORGE Important Notes Keep this Instruction Manual with you at the time of Assembly and Operation. This will guide you the right way. For the Adult use only. A Product by Simond Store www.simondstore.com...
-
Page 2: Table Of Contents
INDEX Introduction to Simond Store Description Where to Use Warning Safety Instructions Forge Body and Accessories with Identification Part List Unboxing Assembly Instructions Double Burner Oval Propane Gas Forge System Specifications Heat Guard Application Instruction Operating Instruction Burner Troubleshooting Solution Double Burner BTU Chart &... -
Page 3: Introduction To Simond Store
We have earned customer satisfaction by providing quality product in timely manner. Description Propane Forge is inevitable product for a Blacksmith, Hobbyist, Jeweler & Knife makers. It is ideal for heating and bending of metals, tempering and heat treatment of small knives & agriculture use small tools. -
Page 4: Safety Instructions
Safety Instructions Safety should be always in the first priority. Ÿ Use this Propane Forge after reading these entire instructions for the proper and safe Ÿ operation. Always use this Propane Forge on a hard level non-combustible surface. This Propane Forge Ÿ... -

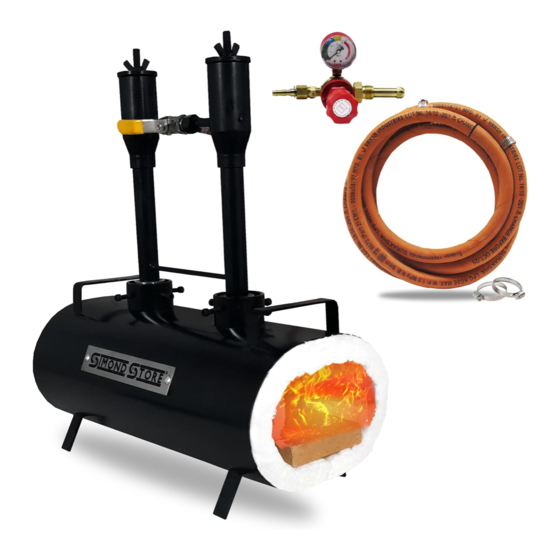

Page 5: Forge Body And Accessories With Identification
Forge Body & Accessories with its Identification Complementary-Maintainance Kit www.simondstore.com Page 3 of 13... -
Page 6: Part List
Part List Part Description Picture Qty. Forge Body Forge Double Burner Set Part- A & B 6.5' 2 Meter Gas Hose Part-C with Clamps Refractory Fire Brick Part-D Gas Pressure Regulator Part-E with Manometer Teflon Tape Part-F Heatguard Part-G Spanner Part-H Filling Gap of Burner &... -
Page 7: Unboxing
Unboxing Unwrap all the mentioned parts as per above list. Ÿ Assembly Instructions Surface Preparation by placing Refractory Fire Brick, Castable or Concrete. Ÿ Ÿ Place Forge over the plain surface. You may prepare it by placing refractory bricks or by using castable Ÿ... - Page 8 Connect the Pre-Assembled Burner Part A &Part B with Part C (Which is Hose). Connect one end of Ÿ hose with the Burner inlet pipe and other end with the Part E (Gas Pressure Regulator). Use clamps for proper tightening of hose at both end. At the top of the Part B you can see wing nut with washer which can be rotated clockwise and anti- Ÿ...
- Page 9 Why this gap filling is necessary? To Prevent the heat loss. Ÿ Heat Loss damage this area of Ÿ furnace. Pre-Rigidized Ceramic Fiber Insulation. Connect Gas regulator with the propane Cylinder. Don't forget that pressure regulator has left thread. Check Ÿ...
-
Page 10: Double Burner Oval Propane Gas Forge System
Double Burner Oval Propane Gas Forge System Specifications Forge Type Double Burner Oval Forge (MS) Shape Oval Burner Double Burner Inside Floor 1” Thick Refractory Fire Brick – 2 Nos. Forge Body Construction 16 Gauge (1.5mm) MS Forge Internal Dimensions 3.2”... -
Page 11: Heat Guard Application Instruction
Heat Guard Application Instruction Heat Guard Refractory Coating: Heat guard Refractory Coating is water based refractory coatings. This coating is used for coating of ceramic fibre lining to protect them against heat, flue gases and fumes. It prevents heat loss. It reflects radiant heat to the hot zone from the insulation surface that reduces the energy needed to achieve the target temperature thus it saves fuel. -
Page 12: Operating Instruction
So you can clean orifice or you can replace it by new one. So youdon't need to worry when you buy Forge from Simond Store. What problems you may face in “PROPANE GAS BURNER?”... - Page 13 Our Burner includes following kit: Burner set Orifice : One attached with each individual burners& two extra Orifice with the burner set. T Spanner : It is a tool for fittings of orifice. Spanner Guide Pipe : It is an orifice mounting guide pipe thru which the T Spanner can reach to the proper position to replace orifice very easily.
- Page 14 Keep & Store this user manual for future reference. Ÿ www.simondstore.com Page 12 of 13...
-
Page 15: Double Burner Btu Chart & Calculation
Propane Pressure (PSI): This data are collected based on theoretical calculation it may be vary by product design but specification & application remain same. www.simondstore.com Page 13 of 13... - Page 16 Propane Gas Burner Regulator & Hose-Clamp Blacksmith Tongs Blacksmith Envil Ceramic Fiber Rigidizer Refractory Firebrick Refractory Coating Additional Information All the refractory materials are easy to replace and available to buy at our store. Please Visit www.simondstore.com www.simondstore.com Page 13 of 13...
