Assured PERFORMANCE ACHRYH-7638 Quick Start Manual

1. Mount siren speaker facing downward in Engine compartment of vehicle. Mount in an
area were siren speaker will not get submerged in water. Mount siren speaker at least
14" from battery.

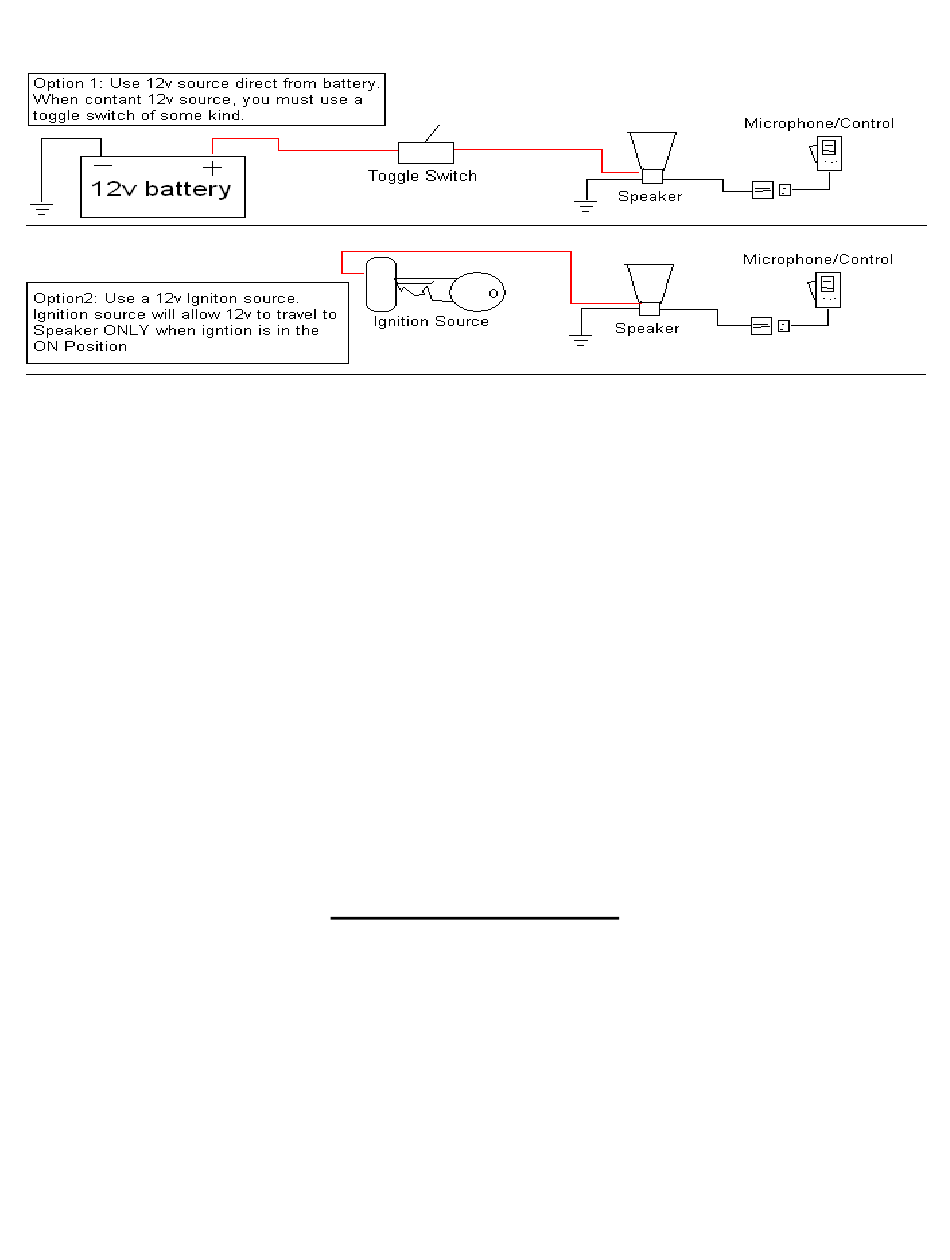

2. Connect RED
ignition source (option 2). Using inline fuse is recommended.
3. Connect the BLACK wire to a GROUND or Negative Battery Post.
4. Run the microphone lead wire inside the cab of vehicle.
5. Plug microphone coiled wire into microphone lead wire (similar to a phone jack). Plug
microphone in BEFORE connecting the 12v power source.
The reason you want to use a toggle switch or connect via an ignition source is because
speaker will draw micro amps even when not in use. It may drain you battery after time.
Problem: Siren is not working, not making any noise at all.
Solution: (1)Check the fuse. (2)Be sure you have 12v going to the red lead on speaker. (3)Be
sure toggle switch (if using a toggle) is in "ON" position. (4)If using ignition source, be sure
ignition is in "ON" position.
If all above is good, and still no sound from siren speaker. Hook siren leads directly to 12v
battery. If still issue, Call Us.
Assured Performance-PN: ACHRYH-7638
wire from Siren to a toggle switch circuit (option 1) or a POSITIVE 12V
Trouble Shooting
