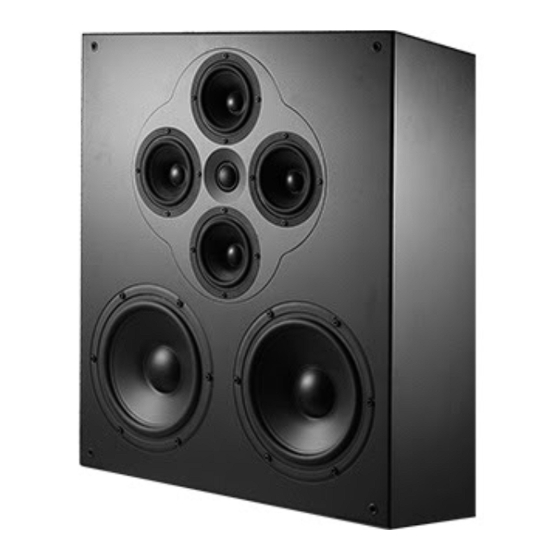

Summary of Contents for MP Speaker E5T
- Page 1 Speaker Nature Sound Speaker System Owner`s Manual Installation Guide Desiened and Engineered by MPspeaker...
- Page 2 Introducation Welcome to MPSpeaker Congratulations on your purchase of a MP loudspeaker system. The MP range of products have been painstakingly engineered in the United States to offer genuine state-of-the-art performance. Partnered with suitable equipment, MP loudspeakers and subwoofers will provide audio performance far beyond that of their competitors and will equal or better the performance of products costing many times their purchase price.
- Page 3 Connection Options Glossary Connections Toconnectyourspeakertoyourreceiveryouwillneedstandard2conductor,strandedspeaker wire.Forinstructionson installation,pleasereadbelow. Preparing the Wire 1) Separate the last 4" of your speaker wire into two pieces. 2) Strip 1/2" off the shielding off of the end of each wire (see A below). 3) Twist the exposed copper strands with your fingers until they are tightly unified. Be sure there are no “flyaway”strands (see B below).
- Page 4 Connection Options Glossary Note: As you make your connections, be sure to connect the positive terminals on your receiver to the positive terminals on your speakers. Most two conductor wire has screen printing on one side to help you differentiate between the two strands (see image below). CAUTION RISK OF ELECTRIC SHOC K DO NOT OPEN...
- Page 5 Speaker placement guidelines MP Enclosure Systems are highly flexible in application and can be used in stereo pairs, 5.1 home theatre systems, or any variety of combinations for faithful sound reproduction. In general, stereo speakers are placed approximately 12' from each other but room acoustics play a large role in acoustic performance so we recommend experimenting if you have placement options available.
- Page 6 Speaker placement guidelines Stereo Separation Place both left and right speakers with tweeters at ear height. If your installation requirements are for surround channel, place them slightly higher. If placed on a bookshelf or integrated into a cabinet, keep the cabinet front edge and bookshelf or cabinet edge flush.
- Page 7 Product Specification Specification Model: E5T Tweeter Dome..........Silk composite material Tweeter Diameter..........1"(25mm) Woofer Cone............ Composite woven-fiberglass Woofer Diameter..........5.25"(133mm) Frequency Response........45----20KHz Impedance............4ohms Power Handling..........5-120watts Sensitivity............88dB Diameter............927x160x200 Model: E5B Tweeter Dome..........Silk composite material Tweeter Diameter..........1"(25mm) Woofer Cone............ Composite woven-fiberglass Woofer Diameter..........
- Page 8 Desiened and Engineered by MPspeaker...
