TM

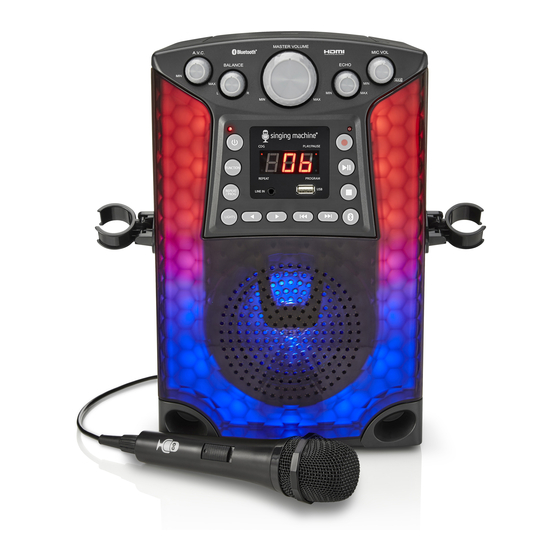

SML633
INSTRUCTION MANUAL /
MANUAL DE INSTRUCCIONES /
MODE D'EMPLOI
www.singingmachine.com
The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
The Singing Machine® es una marca registrada de The Singing Machine Co., Inc.
The Singing Machine® est une marque déposée de The Singing Machine Co., Inc.
Advertisement
Table of Contents
Related Manuals for The Singing Machine SML633
Summary of Contents for The Singing Machine SML633
- Page 1 MODE D’EMPLOI www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc. The Singing Machine® es una marca registrada de The Singing Machine Co., Inc. The Singing Machine® est une marque déposée de The Singing Machine Co., Inc.
-
Page 2: Important Safety Information
Warnings FCC WARNING: This equipment may generate or use radio frequency energy. CAUTION Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. RISK OF ELECTRIC SHOCK The user could lose the authority to operate this equipment if an unauthorized DO NOT OPEN change or modification is made. - Page 3 Included What’s in the box. Main Unit Manual AC Adapter Wired Microphone — E2 —...
-
Page 4: Location Of Controls (Front)
Location of Controls (Front) Display 1. MIC 2 VOLUME control 10. FUNCTION Button STOP Button 2. Auto Voice Control 11. REPEAT/PROGRAM BLUETOOTH pairing Button Button 3. USB Port 12. VOICE EFFECTS Button Skip Forward 4. MASTER VOLUME Button Control 13. Mic Holders SKIP BACK Button 5. -
Page 5: Top View
Location of Controls (Top/Rear) TOP VIEW REAR VIEW 1. CD Door 3. DC IN Jack 2. CD open 4. MIC 2 Jack 5. MIC 1 Jack 6. HDMI Jack 7. LINE OUT Jack — E4 —... - Page 6 Connection Connecting the Microphone(s) Microphones: Connect a microphone into Mic jack 1 as well as Mic jack 2 (when desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone cord as it will cause damage to the encased wiring.
- Page 7 Connection Connecting to AC Power Insert the AC power cord into a conveniently located AC outlet having 120V AC, 60Hz. Note: Make all connections before connecting to AC power. Connecting to LINE IN Jack Connect an external device by using an To External Unit appropriate cable (3.5mm audio cable not AUDIO OUTPUT...
- Page 8 Connection Connecting to Line Out Jack This unit can be connected to another audio system for greater audio output via 3.5mm AUX cord (not included). Plug one end of AUX cord into the Line Out jack located on the back of the machine.
- Page 9 Operation Playing a CDG This unit is designed to play CDs and CDGs bearing the identification logo respectively. If the disc does not conform to the standard, it may not play properly. Notes: • What is a CD+G? A CD+G (CD+Graphics) is the standard format for most karaoke discs that will display the words on the screen.
- Page 10 Operation Playing a CDG (Continued) Adjust the volume to a comfortable level using the MASTER VOLUME control. Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Adjust the MIC 1 or MIC 2 VOLUME control as desired. Increasing this will increase the volume of respective microphone.
- Page 11 Operation Playing a CDG (Continued) SKIP: Advance or go back one track by pressing the button. REPEAT: During playback, press the REPEAT/PROG button once to repeatedly play the selected song; the Repeat indicator will blink. Press the REPEAT/ PROG button a second time to repeatedly play the whole CD;...
- Page 12 Operation Playing a CDG (Continued) PAUSE: During playback, if you wish to pause the disc momentarily, press the button; the PLAY/PAUSE indicator will blink. Press again to resume normal playback. Press the button to stop playback. VOICE EFFECTS: Repeatedly press the VOICE EFFECTS button to select from ECHO, FEMALE, MALE, CHIPMUNK, ROBOT or RADIO vocal effect.
- Page 13 Operation Playing Songs from the USB Connect the unit as described previously. Press the button to turn the unit on. Insert a USB flash drive into the USB port on the unit. Make sure to download music from the Karaoke store. Repeatedly press the FUNCTION button to select the USB mode;...
- Page 14 Operation Playing Songs from the USB (Continued) Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Adjust the MIC 1 or MIC 2 VOLUME control as desired. Increasing this will increase the volume of respective microphone. AUTO VOICE CONTROL can be activated by rotating the AVC control.
- Page 15 Operation Playing Songs from the USB (Continued) SKIP: Advance or go back one track by pressing the button. You can also skip ahead 10 files/ tracks using the SKIP 10+ button. REPEAT: During playback, press the REPEAT/PROG button once during playback, the Repeat indicator will blink and the current track will be repeated.
- Page 16 Operation Playing Songs from the USB (Continued) PROGRAM: You can program up to 20 tracks for playback in any desired order. While in Stop mode, press the REPEAT/PROG button; Program indicator will blink and “P00”appear. Select the first track using buttons, then press the REPEAT/ PROG button.
- Page 17 Operation Using a Bluetooth Device Connect the unit as described previously. Press the button to turn the unit on. Press the button or repeatedly press the FUNCTION button to select the Bluetooth mode; “bt” will appear in the display and flashing. The unit automatically searches for and pairs a previously paired Bluetooth device (if previously...
- Page 18 Operation Using a Bluetooth Device (Continued) To control your Bluetooth device from this unit, press the button to start playback. Press button during playback to pause the song. Adjust the volume to a comfortable level using the MASTER VOLUME control on this unit as well as the volume on your Bluetooth device.
- Page 19 Operation Using a Bluetooth Device (Continued) VOICE EFFECTS: Repeatedly press the VOICE EFFECTS button to select from ECHO, FEMALE, MALE, CHIPMUNK, ROBOT or RADIO vocal effect. Select “EF0” to sing without any voice effect. RECORD YOUR VOCAL PERFORMANCE: To record your singing as well as the music, press the button.
- Page 20 Operation Using the LINE IN Jack Connect the unit as described previously. Press the button to turn the unit on. Connect the external unit to the LINE IN Jack on the front of this unit. Connecting an external unit will allow the audio to be played through your Singing Machine.
- Page 21 Operation Using the LINE IN Jack (Continued) Adjust the MIC 1 or MIC 2 VOLUME control as desired. Increasing this will increase the volume of respective microphone. Adjust the balance between the speakers using the BALANCE control. VOICE EFFECTS: Repeatedly press the VOICE EFFECTS button to select from ECHO, FEMALE, MALE, CHIPMUNK, ROBOT or...
-
Page 22: Operation
.mp3 .cdg files to USB flash drive. Download Store. • Remove (eject) the USB flash drive from your computer. Turn on the Singing Machine and connect the USB Download your selected purchase(s) from flash drive. the Singing Machine Digital Locker to your USB flash drive. -
Page 23: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the button to turn power on. • Confirm that the AC adapter is connected securely to the back of the unit. •...
