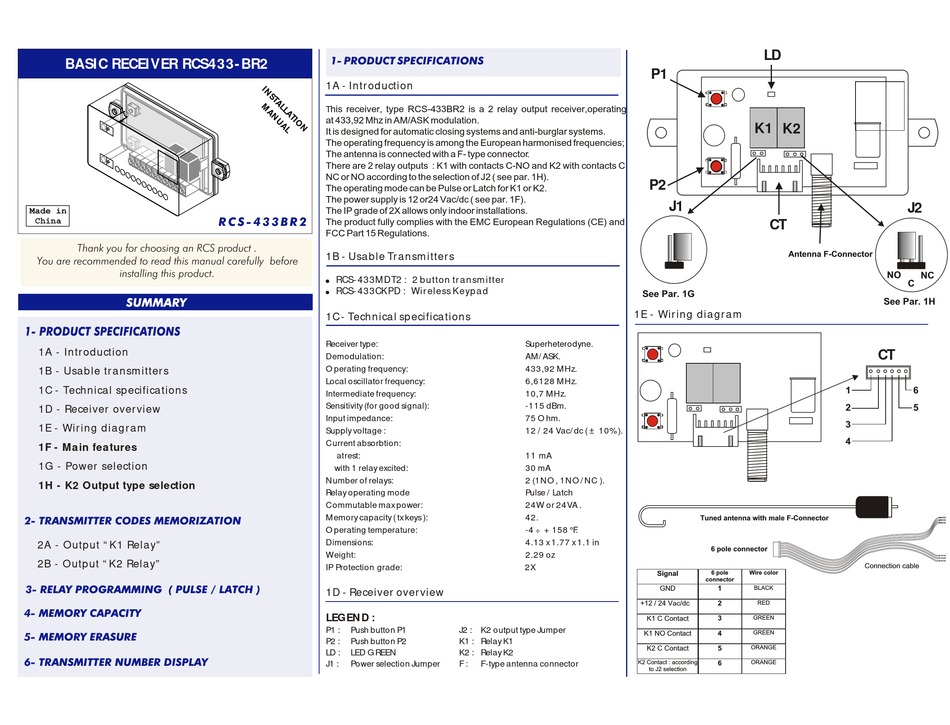

Remote Control RCS433-BR2 Quick Start Manual

BASIC RECEIVER RCS433- BR2
1
Made in
China
Thank you for choosing an RCS product .
You are recommended to read this manual carefully before
installing this product.
SUMMARY
1- PRODUCT SPECIFICATIONS
1A - Intr od uction
1B - Usa b le tr a nsm itter s
1C - Technica l sp ecifica tions
1D - Receiver over view
1E - Wir ing d ia g r a m
1F - Ma in fea tures
1G - Power selection
1H - K2 Output type selection
2- TRANSMITTER CODES MEMORIZATION
2A - Outp ut " K1 Rela y"
2B - Outp ut " K2 Rela y"
3- RELAY PROGRAMMING ( PULSE / LATCH )
4- MEMORY CAPACITY
5- MEMORY ERASURE
6- TRANSMITTER NUMBER DISPLAY
1- PRODUCT SPECIFICATIONS
1A - Intr od uction
his receiver, type RCS-433BR2 is a 2 relay output receiver,operating
T
at 433,92 Mhz in AM/ASK modulation.
It is designed for automatic closing systems and anti-burglar systems.
The operating frequency is among the European harmonised frequencies;
The antenna is connected with a F- type connector.
There are 2 relay outputs : K1 with contacts C-NO and K2 with contacts C,
NC or NO according to the selection of J2 ( see par. 1H).
The operating mode can be Pulse or Latch for K1 or K2.
The power supply is 12 or24 Vac/dc ( see par. 1F).
The IP grade of 2X allows only indoor installations.
R C S - 4 3 3 B R 2
The product fully complies with the EMC European Regulations (CE) and
FCC Part 15 Regulations.
1B - Usa b le Tr a nsm itter s
! RCS- 433MDT2 : 2 b utton tr a nsm itter
! RCS- 433CKPD : Wir eless Keyp a d
1C - Technica l sp ecifica tions
Receiver type:
Demodulation:
O perating frequency:
Local oscillator frequency:
Intermediate frequency:
Sensitivity (for good signal):
Input impedance:
Supply voltage :
Current absorbtion:
at rest:
with 1 relay excited:
Number of relays:
Relay operating mode
Commutable max power:
Memory capacity ( tx keys ):
O perating temperature:
Dimensions:
Weight:
IP Protection grade:
1D - Receiver over view
LEGEN D :
P1 : Push button P1
P2 : Push button P2
LD : LED G REEN
J1 : Power selection Jumper
1E - Wir ing d ia g r a m
Superheterodyne.
AM/ ASK.
433,92 MHz.
6,6128 MHz.
10,7 MHz.
-115 dBm.
75 O hm.
12 / 24 Vac/ dc ( ± 10% ).
11 mA
30 mA
2 (1NO , 1NO / NC ).
Pulse / Latch
24W or 24VA .
42.
-4 + 158 °F .
÷
4.13 x 1.77 x 1.1 in
2.29 oz
2X
J2 : K2 output type Jumper
K1 : Relay K1
K2 : Relay K2
K2 Contact : according
F : F-type antenna connector
LD
P1
K1 K2
P2
J1
CT
Antenna F-Connector
See Par. 1G
Tuned antenna with male F-Connector
6 pole connector
Signal 6 pole Wire color
connector
GND 1 BLACK
+12 / 24 Vac/dc 2 RED
K1 C Contact 3 GREEN
K1 NO Contact 4 GREEN
K2 C Contact 5 ORANGE
ORANGE
6
to J2 selection
J2
NO NC
C
See Par. 1H
CT
1 6
2 5
3
4
Connection cable
