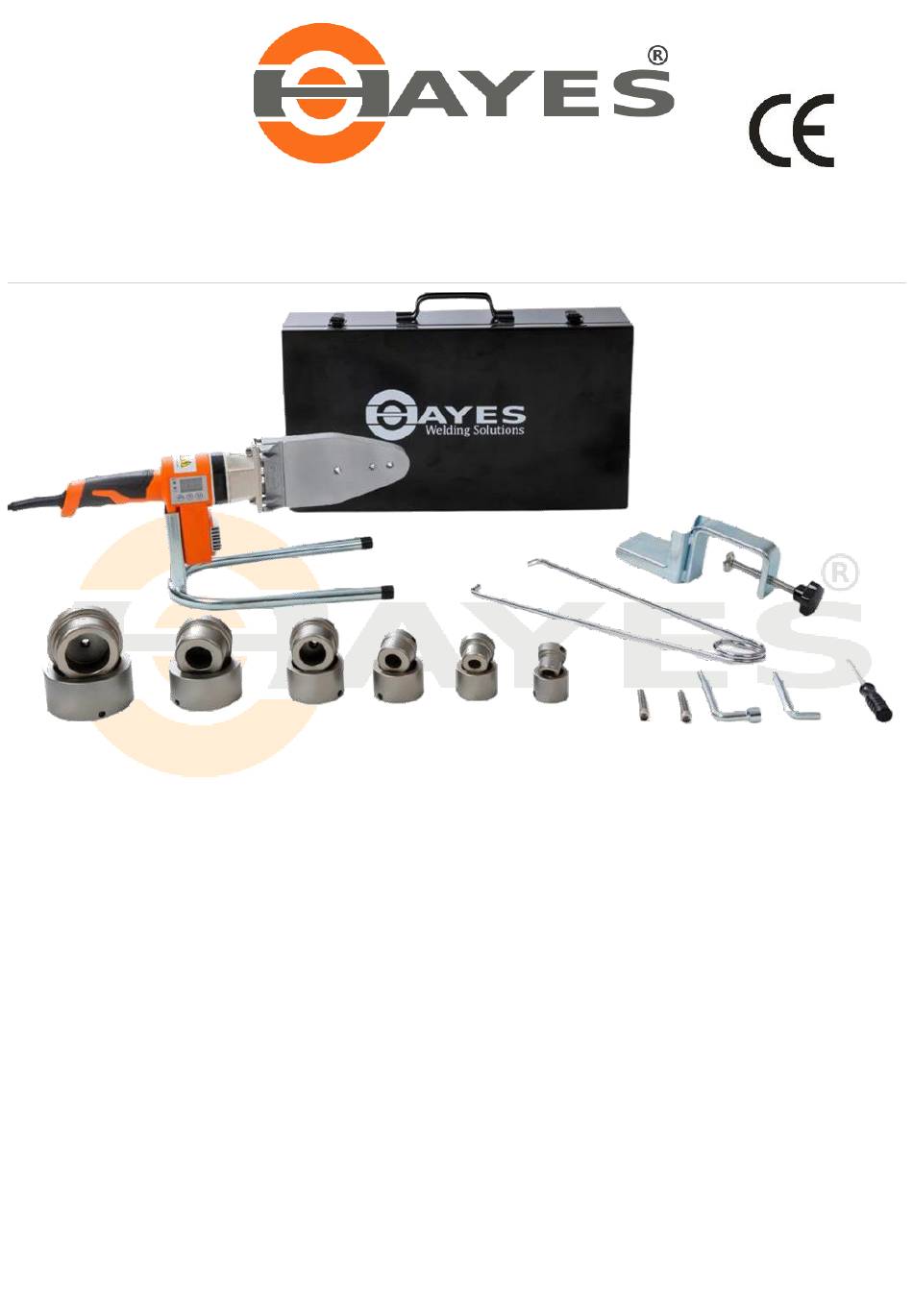

Hayes HY PRO Series Manual

Socket Fusion Pipe Welder
HY PRO Series
DESCRIPTION
The HAYES HY PRO Series is the new digital socket fusion pipe welder (heating tool) that is
suitable for joining a variety of thermoplastic pipes and fittings for different applications in the
industry. This machine can weld HDPE (Polyethylene), PP-R (Polypropylene), PB
(Polybutene).
Our heating tool is designed and manufactured according to the American international
standard ASTM F2620. Our line of ancillary accessories such as heating adapters, cold ring
pliers and chamfer/depth gages are manufactured to ASTM F1056 guidelines, which will
assist in completing a quality fusion consistently if the pipe manufacturer's procedures are
followed carefully.
We offer a variety of options for all our customer's needs. Our goal is to deliver world class
guaranteed plastic pipe fusion tools with fast shipping for a very competitive price.
PROCEDURE / APPLICATION
Definition according to the ASTM F2620: The socket fusion technique consists of
simultaneously heating both the external surface of the pipe end and the internal surface of
the socket fitting to a designated temperature, then fuse them together by application of a
sufficient force. Thereby resulting in fusion.
Socket fusion tools consist of a heating tool, heating adapter, cold rings pliers and
chamfer/depth gages.
