Summary of Contents for Air Comm Systems ACS PA100 F

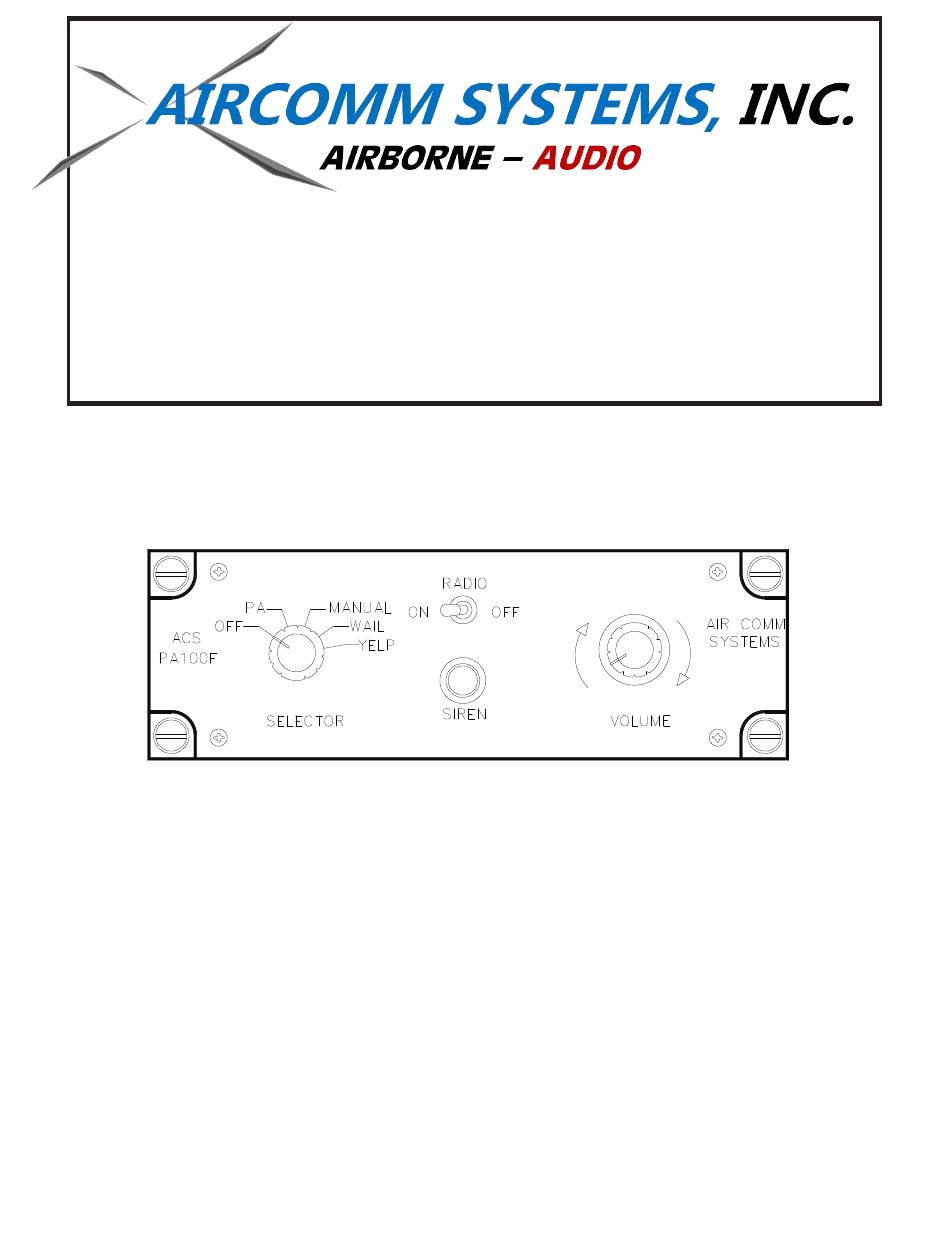

- Page 1 PA/Siren System Control Unit Installation and Operations Manual ACS PA100(F/D) Control Unit Air Comm Systems, Inc 37610 Sky Canyon Dr., Hangar 51 Murrieta, CA 92563 Ph: 951-677-0101 ~ Fx: 951-677-0701 Info@AirCommSystems.com ~ www.AirCommSystems.com...
-
Page 2: Table Of Contents
Page Physical Installation Page Connector Schematic Page Operation Method of Operation Page Controls Page Controls (Selector Switch) Page Instruction for Continued Airworthiness Instruction for Continued Airworthiness Page Warranty Information Air Comm Systems Warranty Page Air Comm Systems, Inc. Page 2... -
Page 3: Physical Dimensions
One (1) 25 pin AMP D-Sub miniature female mating connector complete with crimp pins, hood, and slide lock. The connector pin configuration of the ACS PA100(F/D)F Control Unit rear connector and the recommended wire size for the aircraft cable harness is shown on the following page. Air Comm Systems, Inc. Page 3... -
Page 4: Connector Schematic
14VDC or 28VDC and clearly marked as such on the unit’s data tag. Pre-fabricated cable harnesses are available from Air Comm to expedite installation — consult our sales department for details. Air Comm Systems, Inc. Page 4... -
Page 5: Method Of Operation
5 — Manual Siren Operation Set the SELECTOR switch to the MANUAL position. Depress the SIREN button or, if connected, activate the auxiliary switch. The toggle switch (S5) must be in the RADIO OFF position. Air Comm Systems, Inc. Page 5... -
Page 6: Controls
MANUAL or PA, incoming radio messages will be amplified by the electronic siren. When using the PA or siren functions, the switch should be in the OFF position. Volume can be controlled by the VOLUME control. Air Comm Systems, Inc. Page 6... -
Page 7: Controls (Selector Switch)
PA position when the siren’s radio broadcast function is to be used. D — WAIL In this position the siren will produce a continuous “wailing” sound, up or down in frequency. E — YELP In this position a continuous rapid “warbled” tone is generated. Air Comm Systems, Inc. Page 7... -
Page 8: Instruction For Continued Airworthiness
Cables with quick release connectors interconnect control, amplified apeakers, circuit breaker and audio/mixer. PURPOSE: To provide instructions for the maintenance and inspection of the Air Comm Systems, Inc. Model ACS-PA100F PA/Siren System. This manual provides instructions supplementing the aircraft maintenance manual. These instructions only supercede the aircraft manual in the indicated areas. -
Page 9: Warranty Information
Warranty Information Warranty Information Air Comm Systems, Inc. warrants each new product to be free from defective material and workmanship and agrees to remedy any defect or to furnish a new part in exchange for any defective unit provided an examination discloses such defect occurred under normal use and service, and provided the defective unit is delivered to us, with transportation charges prepaid, within 1 year from the date of acceptance of equipment by the owner.
