Summary of Contents for Konig Security SEC-PCC10

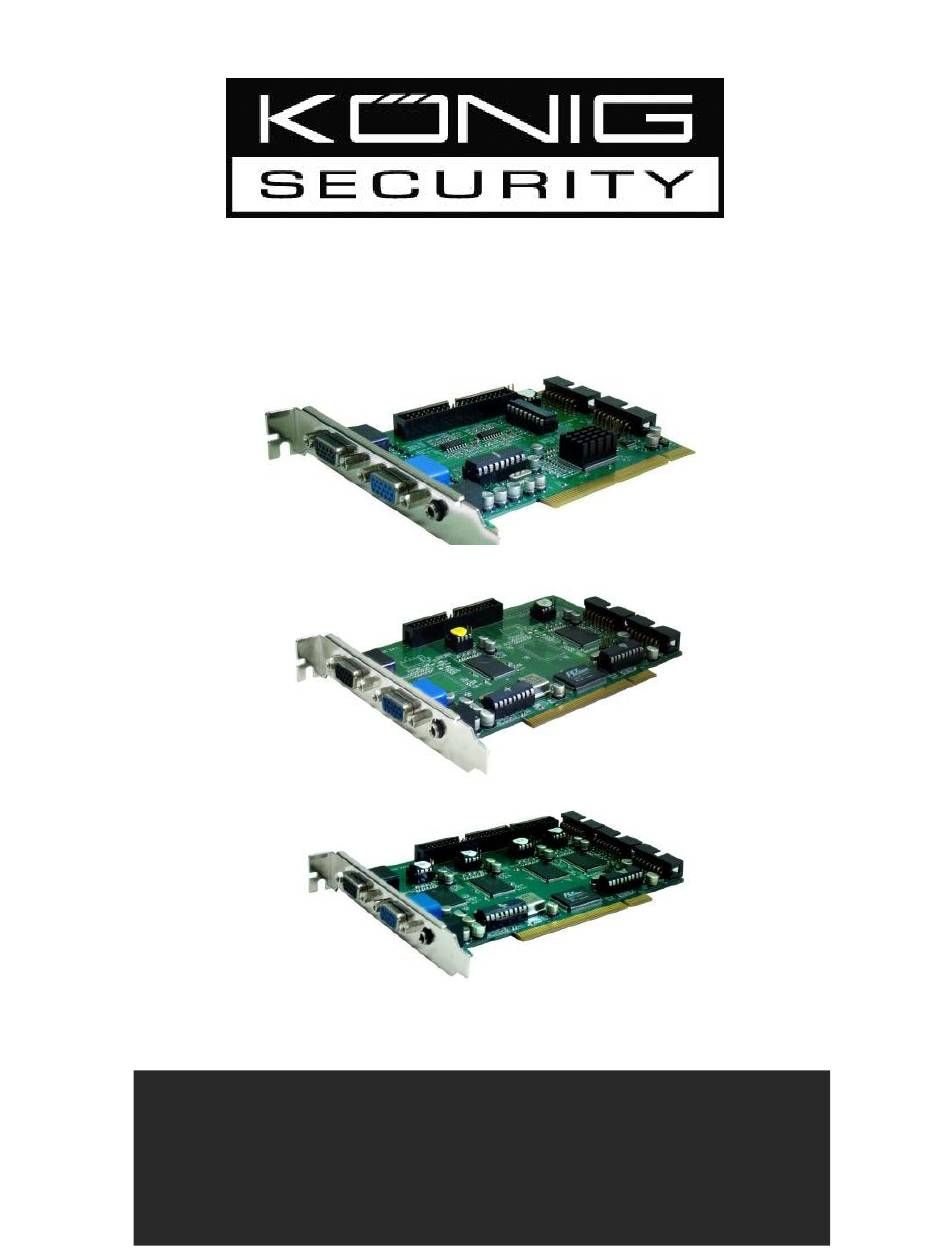

- Page 1 SEC-PCC10 – SEC-PCC20 – SEC-PCC30 PCI SECURITY CARD ADVANCED ENGLISH MANUAL...
-
Page 2: Installation
Installation 1. Turn off the PC’s power and unplug the power cable. 2. Open the PC’s cover and plug the capture card into an empty PCI Slot. 3. Make sure the card is firmly seated and aligned. Mother board Card 1 PCI Slot1 PCI Slot2 Card 2... - Page 3 Watch Dog Connection The Watch Dog Connection will allow the card to reboot the PC automatically when it detects problems with the PC. A) Connect the reset cable, which is connected with the motherboard, with the Watch dog connection of the card. B) Connect the supplied cable with the jumpers on the motherboard and the Watchdog connection of the card.
- Page 4 “Administrator” and password “1234” needs to be used to log in to the DVR System. Cable connection Below figure shows the connection cable for camera and audio of the SEC-PCC30. Connection of SEC-PCC10 (4CH video, 1CH audio) and SEC-PCC20 (8CH video, 2CH audio) are similar.
- Page 5 Additional I/O card Digital I/O card with 4 relay inputs, 3 alarm outputs and a RS485 to RS232 (com port) converter for PTZ control (model: SEC-PCCDIO suitable for SEC-PCC series) SEC-PCC30 Relay Out 1~3 Alarm Input 1~4 RS-485+ RS-485- RS-Ground Connect the Mini Power cable from PC to J5 SEC-PCCDIO...
- Page 6 Main Monitor Panel Name Description 1 Camera Snapshot Click on the number to snapshot the video image of each channel, the snapshot images will be saved at “C:\DVR\bin\snapshot” 2 Screen Division The selection of different screen division layout. (Please refer to the chapter 3 for detail information) 3 Date/Time The current date and time 4 Message...
- Page 7 9 Reserved Reserved function 10 Screen lock This function can lock up the monitor screen to prevent unauthorized access of video 11 P/T/Z Click to switch to the panel for Pan/Tilt/Zoom control (Please refer to the chapter 6 for detail information) 12 Video Playback Click to switch to the control panel for Video Playback (Please refer to the chapter 7 for detail information)
- Page 8 Event Log List Panel Click on “ ” in main monitoring panel to get into the panel of Event log list:...
- Page 9 Name Description Events list table List up to 500 events with “Trigger Time”, “Event Type”, “Sensor ID”, “CCD ID” and “Description”. Note: an “ ” icon in front of event indicate a video clip come with the event. Event list search Search events by specifying Trigger Time, Event Type and CCD ID Return to main panel Click to return to the main monitor panel...
- Page 10 Name Description Video Time Total recorded period Backup Time Time period to be backup into external storage Backup Path Click to browse the backup path of external storage Safe Capacity The Safe Capacity of external storage CD Burning Backup to CD-RW Backup Click to start to backup 4.1.
- Page 11 Name Description Message Display the current operation Smart search Click to get into Smart Search Dialog (Refer to 6.1 for detail information) Audio Click to select channel to play with Audio Search by Date & time Search video by input specified Date and Time Playback control Play, Pause, Stop, Rewind, Previous frame, Next frame Fast rewind...
- Page 12 the index on the Slide-Bar In “End column shows the End Time of the total recorded period in the storage. Video Slide Bar Video Searching by sliding control bar (Refer to 6.5 for detail information) 5.1. Smart Search Please click on the “ ”...
- Page 13 5.2. Playback control buttons 5.2.1. Play video at different speed Click on the “ ” to switch video playback speed at: 2X, 4X, 6X, 8X, 10X, 1/2X, 1/4X, 1/6X, 1/8X and 1/10X speed. 5.2.2. Rewind video at different speed Click on the “ ”...
- Page 14 Click “ ” to save the image of the selected camera. The image files can be saved as Bitmap Files(*.bmp) or Jpeg Files(*.jpg) 5.3.2. Save Video Files Please select “recording file” to save the video of camera as AVI. Please specify the Start Time and End Time, and select the camera then click on the “Select”...
- Page 15 Step 3 Click on “ ” to print out the image of selected camera 5.5. Quick search video with Slide-Bar (Add the picture of the slide-bar here) Users can use the mouse to click and drag the Slide-Bar to search the video quickly. And the in the “Now”...
- Page 16 Step3 The Image Viewer for digital zoom with show up: (Add the picture of Image viewer ) Click on the Left Mouse Button to zoom in. Click on the Right Mouse Button to zoom out. P/T/Z Control Panel Click on the “ ”...
- Page 17 Name Description Call Preset Points Click on different number to move the speed dome to different preset points Click on “Set” to setup preset points Direction control Move Up, Down, Left, Right, Click on “Auto” to enable automatically panning among preset points Speed Control Adjust Pan &...
- Page 18 Name Description Save Password Enable this Item will allow PC to automatically login after reboot Recording Setting Select which disk to be used for video storage. Must specify at least 500MB as safe storage. Notification Type Click on “ ” to setup the week schedule of each kind of Notification Type.
- Page 19 notification will work only in the valid time period in the week schedule setup by user.. [Schedule of E-Mail Notification]: The E-Mail notification will be enabled according to the week schedule setup by user here. There are two kinds of event types can be notified via E-Mail: Motion Detect &...
- Page 20 Click on “ ” to get into the dialogue to clear the recorded file. The default password is 1234. The user can also change the password in this dialogue. 7.2. User Setting...
