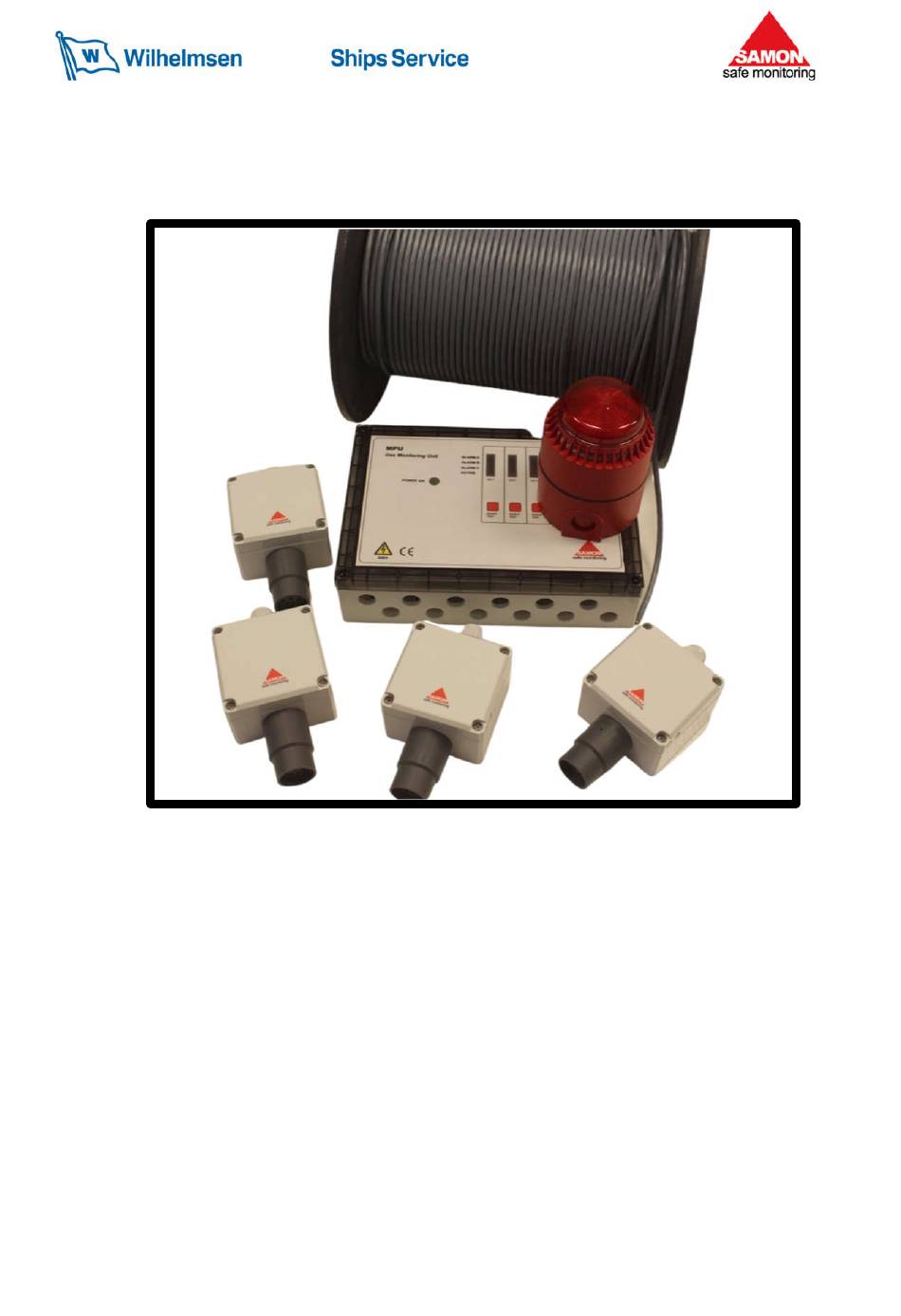

- Page 1 REFRIGERANT LEAK MONITOR KIT 6CH Installation & Service guide for HFC/HFO gas detectors in marine applications...
-
Page 2: Table Of Contents
Installation & Service guide for HFC/HFO gas detectors in marine applications Refrigerant leak monitor kit 6 channels Table of Contents FEATURES ............................... 3 WIRING DIAGRAMS ..........................5 FUNCTION ............................... 8 4.1 AUTO/MANUAL ALARM RESET ......................9 4.2 ALARM TIME DELAY (T1) ........................9 RESET/TEST/SERVICE-BUTTON ( 7) ..................... -
Page 3: Features
Installation & Service guide for HFC/HFO gas detectors in marine applications 1. FEATURES The refrigerant Leak Monitor Kit 6CH offer an ideal solution for multipoint surveillance of machinery room and walk-in freezer rooms where refrigerant gases may be present. The kit is... - Page 4 LEDs. They are suitable for monitoring all HFC and HFO refrigerants. The 4 x New MP-DS-HFC-4000 detectors are equipped with the new SEN027 Self Sense sensor. Additional 2 detectors can be purchased separately to fully utilize all channels in MPU6C if required.
-
Page 5: Wiring Diagrams
Installation & Service guide for HFC/HFO gas detectors in marine applications 2. WIRING DIAGRAMS... - Page 6 Installation & Service guideline for HFC/HFO gas detectors in marine applications...
- Page 7 Installation & Service guideline for HFC/HFO gas detectors in marine applications Fig. 2-4 Wiring diagrams...
-
Page 8: Function
Installation & Service guideline for HFC/HFO gas detectors in marine applications 3. FUNCTION LED A LED B n 3 ALARM RESET: ON=AUTO, OFF=MANUELL n 4 FAULT DELAY: ON=4h DELAY, OFF= NO DELAY LED C POWER TEST TERMINAL ALARM A ALARM B... -
Page 9: Auto/Manual Alarm Reset
Installation & Service guideline for HFC/HFO gas detectors in marine applications 4.1 AUTO/MANUAL ALARM RESET DIP switch (5) no3 on each channel’s control card manages the alarm reset function. “ON” enables Auto reset and “OFF” enables Manual reset, via depressing “Reset/Test/Service”-button (7). -
Page 10: Internal Buzzer And 24Vdc Auxiliary Output
Installation & Service guideline for HFC/HFO gas detectors in marine applications 4.4 INTERNAL BUZZER AND 24VDC AUXILIARY OUTPUT The internal buzzer (1) and 24VDC output can be activated by the DIP-switch (4) on the terminal board and can be user configured to operate from alarm concentration A(no1), B(no2) or C(no3). -
Page 11: Location/Installation
Installation & Service guideline for HFC/HFO gas detectors in marine applications LOCATION/INSTALLATION HFC, HFO, HCFC H3 = 20 cm X = 50 cm Y = 20 cm... -
Page 12: Alarm Levels / Changing Alarm Levels
Correct location of the detector is essential to ensure optimum operation of the system. Special consideration must be given to air movement and whether the gas to be detected is heavier or lighter than air. For gases heavier than air (e.g., Refrigerants (HFC, HCFC)) the sensor should ideally be located approximately 20cm above floor. -
Page 13: Function Control
Installation & Service guideline for HFC/HFO gas detectors in marine applications Alarm levels Gas concentration Nominal GV-offset Refrigeration gas: Sensor type [ppm] [ppm] [ppm] R134a SEN 027 0,4 V 1000 2000 R404a / R507C SEN 027 0,4 V 1000 2000... -
Page 14: Troubleshooting
Installation & Service guideline for HFC/HFO gas detectors in marine applications TROUBLESHOOTING When we are troubleshooting, we recommend checking these following steps: Reset alarm on the test / reset-button if possible. Check sensor value and calibrate if necessary / possible. -
Page 15: Claim/Warranty Procedure
Installation & Service guideline for HFC/HFO gas detectors in marine applications CLAIM/WARRANTY PROCEDURE Before contacting SAMON for a claim, be sure to have read this guideline and most importantly tested the sensor in the correct way. As our experience is that 99% of all claims in the end is sensor related. - Page 16 Installation & Service guideline for HFC/HFO gas detectors in marine applications APPENDIX 1 R404a / R507a Range 0 – 4000 ppm R407f Range 0 – 4000 ppm...
- Page 17 Installation & Service guideline for HFC/HFO gas detectors in marine applications R407C Range 0 – 4000 ppm R448a / R449a Range 0 – 4000 ppm...
- Page 18 Installation & Service guideline for HFC/HFO gas detectors in marine applications R513a Range 0 – 4000 ppm R417a Range 0 – 4000 ppm...
- Page 19 Installation & Service guideline for HFC/HFO gas detectors in marine applications R410a Range 0 – 4000 ppm Range 0 – 4000 ppm...
