Summary of Contents for Eurobil FLY-TN

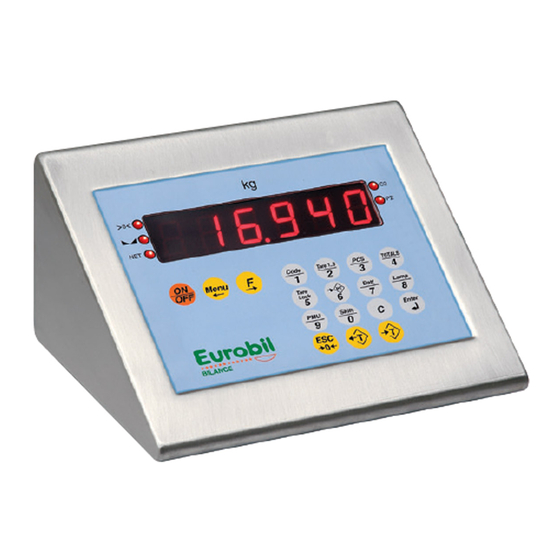

- Page 1 EUROBIL INSTRUCTIONS FOR USE AND INSTALLATION Display FLY-TN EXTENDED / NUMBER KEYBOARD Page...
- Page 2 EUROBIL INSTRUCTIONS OF USE AND INSTALLATION Display FLY TN (extended / number keyboard) 28/6/2004 CALIBRATION MODE JULY 2003 ISSUE No. of REV. DATE REASON OF REVISION Page...
-
Page 3: Table Of Contents
EUROBIL CONTENTS TECHNICAL CHARACTERISTICS __________________________________________________________ 4 CONNECTIONS __________________________________________________________________________ 5 INTERNAL CONNECTIONS OF THE INSTRUMENT _______________________________________ 5 EXTERNAL CONNECTIONS ___________________________________________________________ 5 2.2.1 Power Supply _____________________________________________________________________ 5 2.2.2 Load cells (platform / balance) ________________________________________________________ 6 2.2.3 Serial interface RS232 ______________________________________________________________ 6 KEYBOARD _________________________________________________________________________ 7... -
Page 4: Technical Characteristics
EUROBIL 1 TECHNICAL CHARACTERISTICS Power supply of the instrument Battery of 6 Vdc – External power supply of 230 Vac 7 Vdc Maximum absorption Operating temperature -10°C +40°C (max. humidity: 85%, without condensation) Storing temperature -20°C +50°C Display (max) 6 digits - red 7-segment LEDs (h 20 mm) -
Page 5: Connections
EUROBIL 2 CONNECTIONS 2.1 INTERNAL CONNECTIONS OF THE INSTRUMENT POWER SUPPLY + SIGNAL + SIGNAL – POWER SUPPLY – REFERENCE + REFERENCE - PIN 1 TX PIN 2 GND PIN 3 RX PIN 3 BATT + 2.2 EXTERNAL CONNECTIONS The connectors are available in the rear part of the instrument. Identify those of your interest in the figure shown herebelow. -
Page 6: Load Cells (Platform / Balance)
EUROBIL 2.2.2 Load cells (platform / balance) Weighing platforms are generally provided with a cable for the connection with the display, therefore they have a circular 9-pole connector that will be screwed on that which the instrument is provided with. -
Page 7: Keyboard
EUROBIL 2.3 KEYBOARD The keyboard consists of 17 keys + 1 ON/OFF function key. Main functions: 10 number keys, from 0 to 9 1 ENTER key 1 C key 1 key of semiautomatic zero (->0<-) 1 key of semiautomatic tare ( 1 MENU key for entering the programming menu 1 key for switching the NET/PIECES display. -
Page 8: Installation
EUROBIL 3 INSTALLATION 3.1 GENERAL RULES This instrument will be installed according to the following instructions: Avoid unstable supporting surfaces and, if necessary, use the special support for wall application, make sure that the fastening screws have got grip on. -
Page 9: Operational Functions
EUROBIL 4 OPERATIONAL FUNCTIONS: 4.1 SWITCHING THE INSTRUMENT ON/OFF Switch the instrument on by pressing the key All the display units will be enabled for some seconds to undergo an operational check. Then the display will start the zero search. -
Page 10: Clearing The Tare
EUROBIL 4.4 CLEARING THE TARE Clear the tare by pressing the key 4.5 SELECTING THE DISPLAY OF NET WEIGHT / PIECES Pressing the key will alternately select the display of net weight and pieces (pieces, only if a sampling operations has been carried out). -
Page 11: Selecting Stored Tares
EUROBIL 4.8 SELECTING STORED TARES Pressing the key will lead to display the message for some seconds. “ ” COD T Then set a number (1 to 9) corresponding to a stored tare. Pressing ENTER will confirm the insertion of this tare. -
Page 12: Inserting The Unitary Average Weight
EUROBIL 4.11 INSERTING THE UNITARY AVERAGE WEIGHT Pressing the key will lead to set the known Unitary Average Weight (UAW) [PMU is the acronym of “Peso Medio Unitario”, that is unitary average weight, in Italian]: set the UAW in grams confirm this datum (pressing ENTER) The piece counter is enabled and the display will switch to PIECES. -
Page 13: Display Total
EUROBIL Before starting the operations described above, the instrument will check whether the printer is • on line. After a printing with reset, the message will be printed at the bottom of the “ T O T A L S R E S E T”... -
Page 14: Entering The Programming Menu
EUROBIL will alternately enable / disable the lock of tare value. Pressing the key for the first time will lead to display the word “LOCK” for some seconds, to indicate that the entered tare value is locked; therefore, when the load is removed, the tare will not be reset. -
Page 15: Programming Preset Tares
EUROBIL will enter the programming menu. The menu items will be displayed in the following order, but only if the relevant function has been enabled during the set-up. These items are selected with the keys Enter the selected function by pressing the key... -
Page 16: Programming The Progressive Number Of Weighing Operations
EUROBIL 5.2 PROGRAMMING THE PROGRESSIVE NUMBER OF WEIGHING OPERATIONS P_prog: The current progressive number of weighing operations is displayed clear the displayed value (<C>) set the new value of the progressive number of weighing operations (9999 max.) confirm the set value (ENTER) ... -
Page 17: Control Of Communications
EUROBIL 6 CONTROL OF COMMUNICATIONS This function is used to define the modes of use of the serial interface, while the communication parameters are fixed (9600baud, NOparity, 8bit, 1Stopbit). Switch the instrument on by keeping the key pressed The word “serial” will de displayed after the switching-on test... -
Page 18: Type Of Protocol
EUROBIL 6.1.1.1 Type of protocol Choose one of the proposed protocols, with the keys ▬► ◄▬ : Then confirm with ENTER BASIC Possible selections BASIC Net weight, tare, UAW, pieces WEIGHT Only weight REPEAT Data for the weight repeater 6.1.1.2 Network address The type of network communication will require that the address (from 1 to 32) is specified. -
Page 19: Communication Protocols
EUROBIL 6.2 COMMUNICATION PROTOCOLS This chapter will describe the available commands and record tracks that can be controlled by this display. The communication parameters are preset (9600 baud, NO parity, 8 bit, 1 Stopbit). Various communication modes are possible and a specific example can be seen herebelow: BIDIRECTIONAL <command>[<parameters>]CR... -
Page 20: Record Tracks
EUROBIL 6.4 RECORD TRACKS <ind> Field Byte Description 1 ADDRESS 80H+balance number (from 01H to 20H) <data> BASIC record Field Byte Description 1 STATUS Balance status 0=unstable 2=stable 3=zero centre 2 TARE Tare on the balance, with decimal point o lb (a seconda del comando) -
Page 21: Calibrating The Instrument
EUROBIL 7 CALIBRATING THE INSTRUMENT 7.1 Entering the calibration mode The access to the calibration consists in opening the instrument and pressing a pushbutton included in the CPU CAPACITY Limit RANGE 1 DIVISION CALIBRATION 0 CALIB. SAMPLE WEIGHT FILTER STABILITY AUTOM. -
Page 22: Setting The Metrologic Parameters
EUROBIL 7.2 Setting the metrologic parameters 7.2.1 Setting the capacity ENTER : Start setting CAPACITY NUMBER KEYS + CLEAR KEY: Setting ENTER : End of setting 7.2.2 Setting the limit of the first weighing range (for multi-interval instruments) ENTER : Start setting... -
Page 23: Adjusting Zero
EUROBIL 7.2.4 Adjusting zero ENTER : Carry out the adjustment of zero CAL 0 7.2.5 Adjustment of Sample Weight ENTER : Start setting CAL SW NUMBER KEYS + CLEAR KEY: Setting ENTER : End of setting and calibration of sample weight 7.2.6 Digital filter... -
Page 24: Stability Standards
EUROBIL 7.2.7 Stability standards ENTER : Start setting STAB NUMBER KEYS + CLEAR KEY: Setting ENTER : End of setting VALUE DIVISIONS SECONDS 7.2.8 Automatic zero setting field at the switching on (percentage of capacity) ENTER : Start setting AUT0... -
Page 25: Zero Tracking (Tenths Of Divisions)
EUROBIL 7.2.9 Zero tracking (tenths of divisions) ENTER : Start setting IN 0 NUMBER KEYS + CLEAR KEY: Setting ENTER : End of setting 7.2.10 Zero tracking (intervention time) This parameter (0..5) enables to adjust the intervention time. ENTER : Start setting... -
Page 26: Gravity (G) Of The Calibration Place
EUROBIL 7.3.1.1 Gravity (g) of the calibration place GCAL ENTER : Start setting NUMBER KEYS + CLEAR KEY: Setting 9.810 ENTER : End of setting 7.3.1.2 Gravity (g) of the place of use ENTER : Start setting GUSO NUMBER KEYS + CLEAR KEY: Setting ENTER : End of setting 9.810... - Page 28 EUROBIL Eurobil s. r.l. Via Olona, 183/C - 21013 Gallarate (VA) ITALY Tel – 0331/793449 Fax 0331/793825 e-mail commerciale@eurobil.it uff.tecnico@eurobil.it assistenza@eurobil.it Page...
Need help?
Do you have a question about the FLY-TN and is the answer not in the manual?
Questions and answers

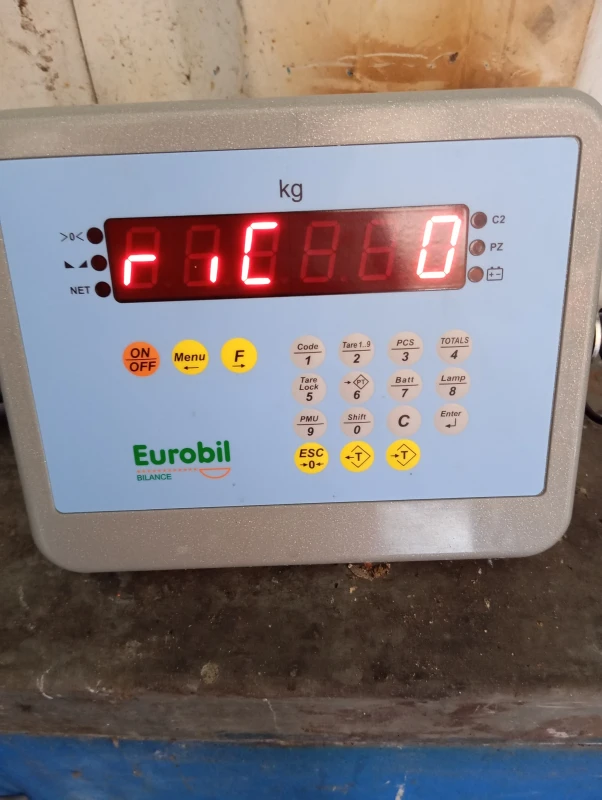

Porque mi báscula no trabaja solo me pone este letrero
If your Eurobil FLY-TN scale is not working and displaying a message, it could be due to one of the following reasons:
1. Battery Low (BATT Message): If the display alternates between "BATT" and the weight, the battery charge is low. The scale will automatically turn off if the charge falls below the minimum threshold. Try recharging or replacing the battery.
2. Tare Lock Activated (LOCK Message): If "LOCK" appears on the display, the tare value is locked, preventing it from resetting when the load is removed. Press the tare key again to unlock it.
3. Self-Switching Off Enabled: If the scale turns off unexpectedly, it may have the self-switching-off function enabled. This happens if the weight remains stable at the minimum level for a set time without any key press.
4. Connection Issues: Ensure all internal and external connections, including the power supply and load cells, are properly connected.
If the issue persists, refer to the manual for troubleshooting or check for any error codes displayed.
This answer is automatically generated
Cómo ensender la balanza por primera ves
To turn on the Eurobil FLY-TN scale, follow these steps:
1. Ensure the scale is properly connected to the power supply.
2. Press the power button to switch on the instrument.
The scale should then initialize and be ready for use.
This answer is automatically generated
