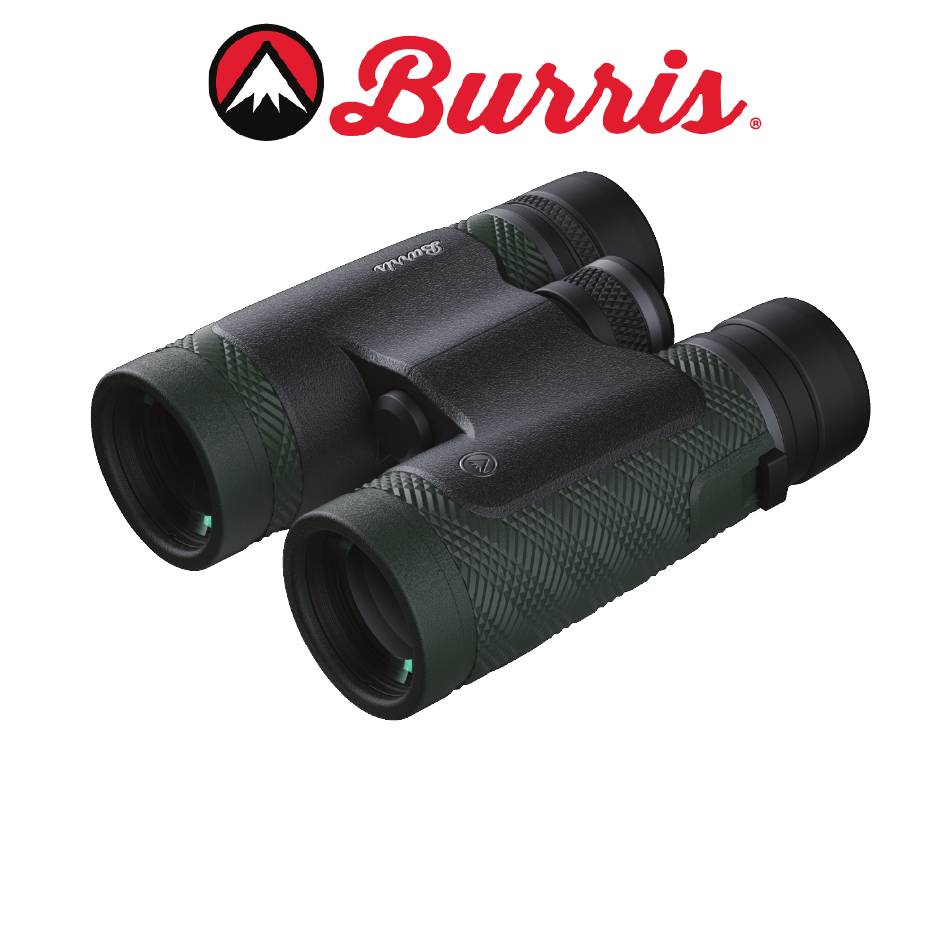

- Page 1 D R O P T I N E H D B I N O C U L A R User Guide...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Overview................Product Map ............... Eyepiece Adjustments ............Focusing the Binocular ............Care and Maintenance ............8x42 mm Specifications ............10x42 mm Specifications ............ Warranty................Burris Droptine HD Binocular User Guide... -
Page 3: Overview
Congratulations on purchasing a Burris Droptine HD Binocular! ® Hunters have trusted Burris optics for over 40 years and the Droptine HD binoculars continue the tradition of reliability, affordability and performance. High-performance lenses and BaK 4 prisms produce sharper images and edge-to-edge clarity. -
Page 4: Product Map
ADJUSTABLE EYECUPS ADJUSTABLE DIOPTER CENTER NECK FOCUS HARNESS KNOB LOOP TRIPOD ADAPTER OBJECTIVE LENS Burris Droptine HD Binocular User Guide... -
Page 5: Eyepiece Adjustments
Eyecup Adjustment The eyecups on the Droptine HD binoculars are adjustable to ensure a full field of view. Twist the eyecups up for normal use, or turn them down when wearing eyeglasses or sunglasses. IPD Adjustment The Inter-pupillary Distance or IPD is the distance between the center of your left and right eye. -
Page 6: Focusing The Binocular
Focusing the Binoculars Your Droptine HD binoculars can be set up for your eyes with two simple steps: 1. Find the diopter adjustment ring located below the right eyecup. Start with the diopter adjustment set to zero with the two hash marks aligned. -
Page 7: Care And Maintenance
Care & Maintenance The Droptine HD binocular is fully waterproof and fogproof. In the event that the lenses are subjected to dust, dirt or mud, follow these steps to clean and protect the lens surface. Failure to remove grit before final cleaning can damage lens coatings. -
Page 8: 8X42 Mm Specifications
5.2 mm Eye Relief 0.7 in. IP Distance Range 55 mm - 73 mm Eyecups Adjustable, Aluminum Nitrogen Filled Waterproof IPX7 Weight 25.6 oz Dimensions 5.8”x5.3”x2.1” Neck Strap Yes, Neoprene Objective Lens Cover Included Burris Droptine HD Binocular User Guide... -
Page 9: 10X42 Mm Specifications
4.2 mm Eye Relief 0.6 in. IP Distance Range 55 mm - 73 mm Eyecups Adjustable, Aluminum Nitrogen Filled Waterproof IPX7 Weight 25.6 oz Dimensions 5.8”x5.3”x2.1” Neck Strap Yes, Neoprene Objective Lens Cover Included Burris Droptine HD Binocular User Guide... - Page 10 10 | Burris Droptine HD Binocular User Guide...
-
Page 11: Warranty
You can be confident that the optic you purchased is built to the most exacting standards. You can count on Burris to perform every time you use it. We’re so confident in the craftsmanship of our products that we back them with a no questions asked Forever Warranty. - Page 12 Burris Company • 331 East 8th St., Greeley, CO 80631• 1-888-440-0244 BurrisOptics.com • Facebook.com/BurrisOptics INSTR-9270...
