Summary of Contents for designer's image 211-4501

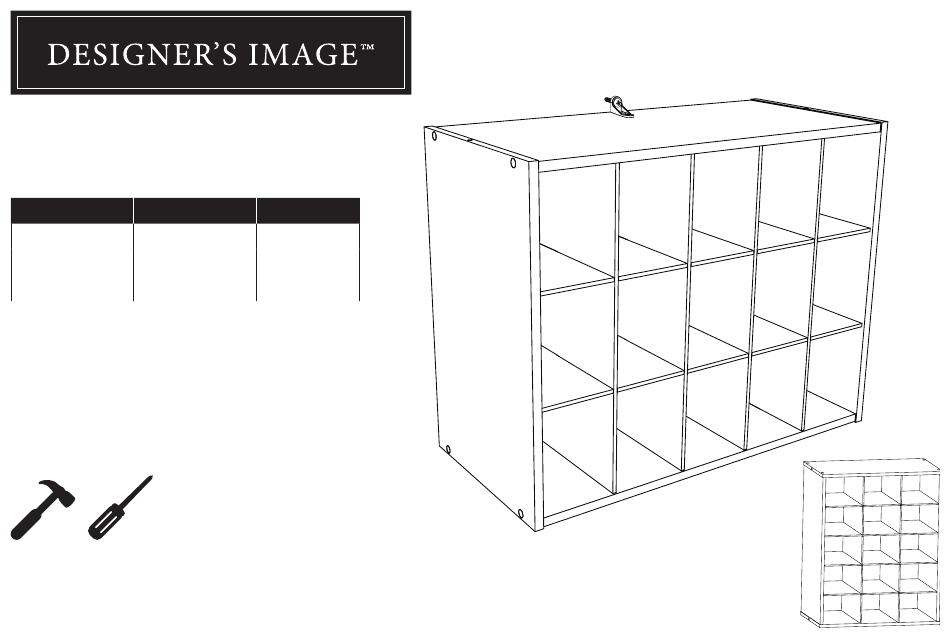

- Page 1 Stackable 15-Cube Organizer Assembly Instructions Reference # Finish 211-4501 3679 White 211-4500 3678 Java 211-4610 14594 Charcoal Tools Needed: hammer screwdriver Optional Assembly 01-13957-00 11/20...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS WARNING • This unit contains small parts which could be a choking hazard for small children. Children should be STOP under adult supervision at all times or serious injury could occur. • Always unload unit prior to moving the unit. The weight of personal belongings can cause the unit to become unstable and either tip or collapse. - Page 3 HARDWARE (H1) x 8 (H2) x 8 (H3) x 2 (H4) x 2 assembly screw screw cover dowel hole plug #5 mm x 38 mm (H5) x 1 (H6) x 1 (H7) x 1 (H8) x 20 L-bracket L-bracket screw wall screw nail #10 x 1/2 in.
-
Page 4: Description Quantity
DESCRIPTION QUANTITY side panel shelf back panel 4-slot cross piece 2-slot cross piece finished unfinished edge edge Unfinished edges are shaded in gray in the illustrations throughout this document. It is important to understand how finished edges go together. Take a moment to lay out all the wood pieces and note the finished and unfinished (raw wood) edges. - Page 5 STEP 1 Unfinished edges of unit facing up. (H1) x 4 assembly screw #5 mm x 38 mm 1. Use four assembly screws (H1) to attach side panels (A) to shelf (B). 2. Be sure to arrange pieces so all unfinished edges are facing the same way.
- Page 6 STEP 2 (H1) x 4 (H2) x 8 assembly screw screw cover #5 mm x 38 mm 1. Attach shelf (B) to side panels with four assembly screws (H1) and then cover all screw heads with a screw cover (H2).
- Page 7 STEP 3 For stacking units only - cut back panel first. For single & stacking unit(s). If stacking, place cut hole here (H8) x 20 nail 1. If you plan to stack units, use scissors or utility knife to cut a 3/4 in. x 1-1/4 in. hole in top center location of back panel. 2.
- Page 8 STEP 4 WARNING All units MUST be wall fastened to the wall. wall stud stud short long panel wall panel stud Min. 1/2 in. wall Max. (H5) x 1 (H6) x 1 (H7) x 1 stud 1 in. L-bracket L-bracket screw wall screw #10 x 1/2 in.
- Page 9 STEP 5 All smooth, finished edges up. All smooth, finished edges face out. 1. Slide together 4-slot cross pieces (D) and 2-slot cross pieces (E) as shown. 2. Slide assembled cross pieces into finished unit.
- Page 10 STEP 6 WARNING Do NOT stack more than one unit on top of each another. for stacking for single unit (H3) x 2 (H4) x 2 dowel hole plug Single unit only when mounted vertically. Can not stack. 1. Install dowels (H3) or hole plugs (H4). 2.
