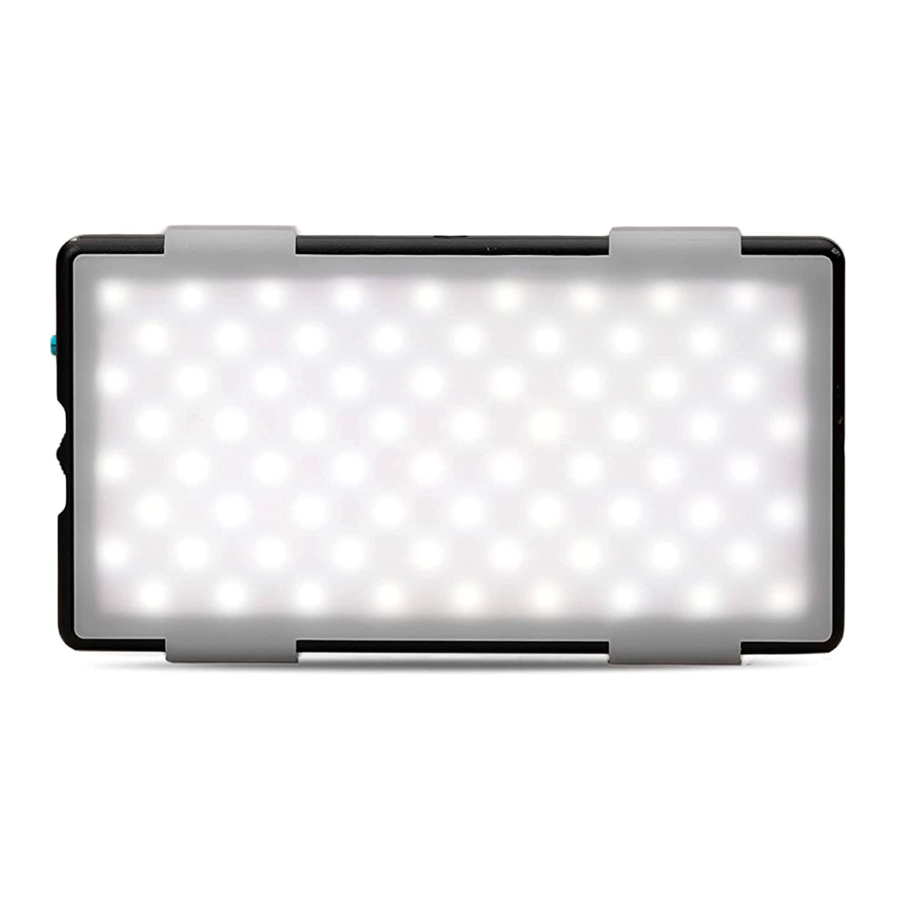

Lume Cube PANEL PRO - Led Lamp Manual

Get to know your Device

What's in the box

How To Use

Turn on/off

Press and hold blue power/mode button for 2 seconds.

Select modes

Once your Panel Pro is powered on, tap the blue power/mode button to toggle between modes. The mode indicator (>) will move to your mode selection.

• Level - Brightness adjustment
• Temp - Color Temperature adjustment
• Color - Color Hue adjustment
• Scene - Preset Lighting Effects
• Strobe – Strobe Light Settings

Adjust Modes

Once you have selected a mode, use the adjustment dial to select your setting within that mode. Turn adjustment dial towards (+) to increase setting and (-) to decrease setting. Hold adjustment dial in the direction you intend for a quicker flow through settings.

Interface Icon

Modes

Level – Brightness Adjustment

Adjust brightness from 1% brightness to 100% brightness in increments of 1%. When in Level mode, turn adjustment dial towards (+) to increase or (-) to decrease brightness.

Note that the Estimated Run Time reading in the upper left side of screen will change automatically to reflect Estimated Run Time at each Brightness level.

Temp - Color Temperature Adjustment

Adjust color temperature, cooler or warmer, between 3000k (warm) and 5700k (cool). When in Temp mode, turn adjustment dial toward (+) for cooler and (-) for warmer color temperature.

Color- Hue Adjustment

Choose from 360º color options (for limitless color options, use the Lume Cube smartphone app). When in Color mode, turn the adjustment dial towards (+) and (-) to scroll through the color options. Once you've found a setting you like, remember the Color number to return to that exact color at a later date. To scroll the color options quickly, hold the dial down in the direction you chose.

Scene - Preset Lighting Effects

Choose from 4 creative effects - Police Lights, Fire, Lightning, and Loop (which loops through all colors). When in Scene mode, use adjustment dial (up or down) to scroll through creative effects.

Strobe - Strobe Adjustment

Choose from 10 levels/speeds of strobe light settings. When in Strobe mode, use the adjustment dial to scroll through strobe settings.

Product Specs

1. Charging time: 2.5 - 3 hrs for a fullcharge
2. Built-in lithium battery: 3.8VDC 3800mAh
3. Power: 10W
4. Color temperature: 3000K-5700K
5. Color rendering Index (CRI): Ra>96+
6. Dimming range: 1-100% (in 1% increments)
7. LED diodes: 263
8. Lumens: 1000Lm
9. LUX: 1500Lux @0.5m
10. Battery life @ CT5700K: 3.5 hour run time at 50% brightness.
11. Battery life RGB: 3.10 hour run time at 50% brightness.
12. Charging port: USB Type-C
13. Charging power supply: 5V1A/5V2A
14. Three (3) 1/4" 20 tripod mounts
15. Product dimension: 6.02 inches (W) x 3.15 inches (H) x.43 inches (D)
16. Net weight: 200g

Lume Cube App

• The Lume Cube App gives you ultimate wireless control of your Panel Pro.
• Remotely control Brightness, Color Temperature, Color Hue, Scene Lighting Effects, and Strobe features.
• Significantly expand your Color Hue control with thousands of color options.
• Monitor battery levels on all devices.
• Control multiple Lume Cube lights individually or simultaneously.

Download your Lume Cube App from the App Store or Google Play.

Precautions

1. After charging is complete, unplug the power cord.
2. If you have not used the product for a long period of time, charge the battery before using the product again. Otherwise, the product cannot be turn on without power.
3. In order to prolong the service life of the battery, it is recommended to charge and maintain it every three months.

Warnings

1. Please keep it dry. Do not touch this product with wet hands. Do not immerse the product in water or expose to rain.
2. With built-in lithium battery, prohibit disassembly, impact, extrusion or put into fire.
3. Do not use in the presence of flammable gases, otherwise may cause an explosion or fire.
4. Do not use, store or charge in high temperature environment or closed space under direct degrees.
5. Please use the specified charger to charge the battery and use it within the specified voltage and temperature range in accordance with the correct operating instructions.
6. This product involves a battery, please strictly follow the corresponding operating specifications for the use of the battery, otherwise it may cause an explosion or fire.

Warranty & Support

1. This product is guaranteed for one year and the built-in battery is warranted for 12 months.
2. Warranty is calculated from the date of first purchase of the product. Please Register at
   www.lumecube.com/register
3. For all Customer and Technical Support needs, email SUPPORT@LUMECUBE.COM.

FCC Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

FOLLOW US ON SOCIAL MEDIA!

@LUMECUBE

Tutorials: lumecube.com/tutorials

Join the Lume Cube User Group (Facebook)
facebook.com/groups/lumecubeusersgroup

Share your content on social with #litbylume
