UESI-LF
Watersaving
Urinal
Installation
Guide
Approval For Manufacture
gn
Date
MELBOURNE
SYDNEY
Britex Place Mirra Crt
16 Northumberland Drv
Bundoora VIC 3083
Taren Point NSW 2229
t (03) 9466 9000
t (02) 9531 2100
e vic@britex.com.au
e nsw@britex.com.au
TITLE:
PERTH
BRISBANE
Unit 1/8 Principal Link
19 Manilla St
Malaga WA 6090
East Brisbane QLD 4169
t (08) 9249 5464
t (07) 3363 2400
Drawing:
e wa@britex.com.au
e qld@britex.com.au
UESI-LF Installation Guide | QID 1.11 | Rev 3 | 9 Mar 2023
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
UESI-LF
ADELAIDE
Water Saving Urina
The Britex Group
SA State Office
t 1300 764 744
e sa@britex.com.au
SD-2609.2
DO NOT
Advertisement
Table of Contents
Related Manuals for Britex UESI-LF
Summary of Contents for Britex UESI-LF

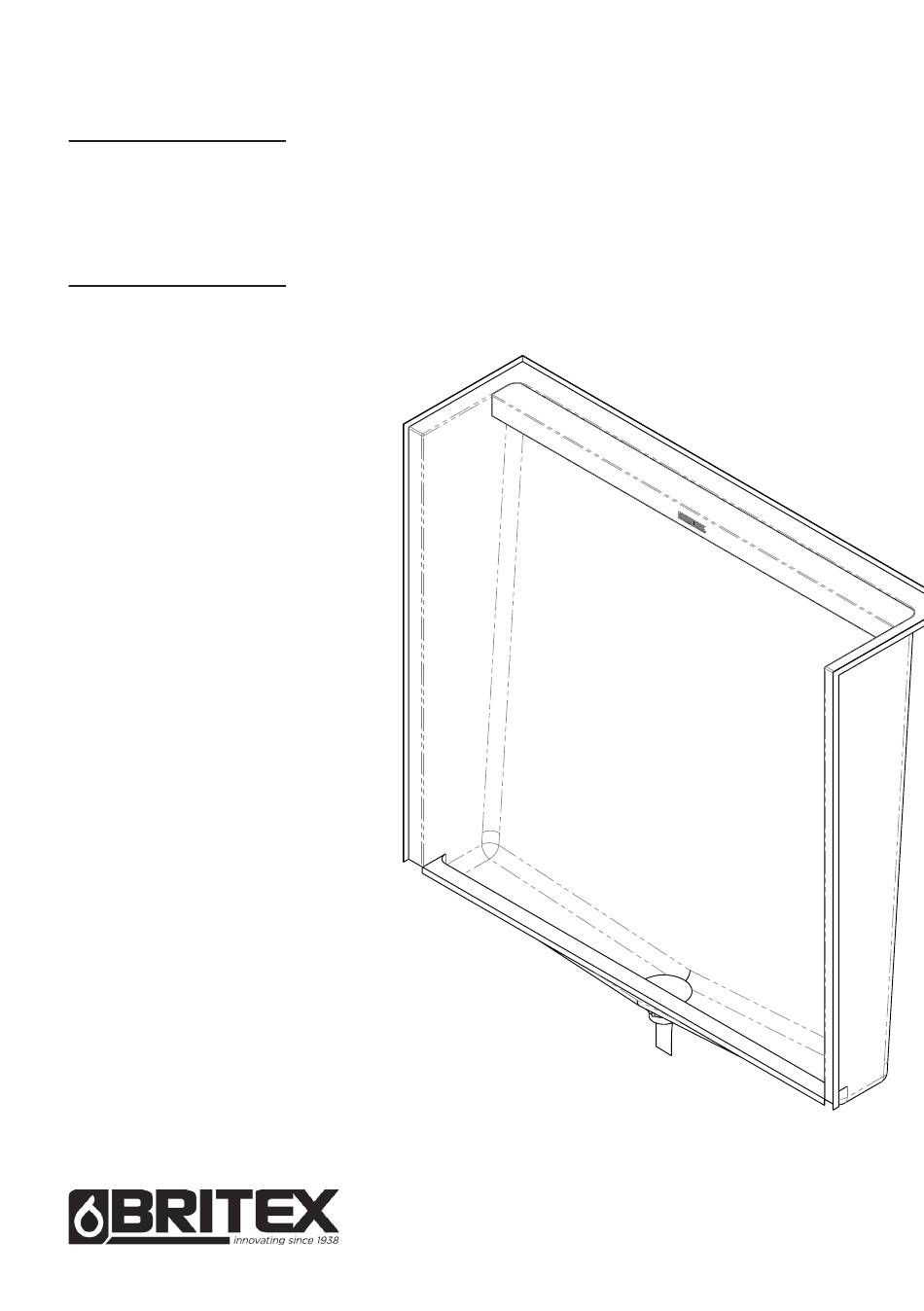

- Page 1 (07) 3363 2400 t 1300 764 744 Drawing: e vic@britex.com.au e nsw@britex.com.au e wa@britex.com.au e qld@britex.com.au e sa@britex.com.au SD-2609.2 UESI-LF Installation Guide | QID 1.11 | Rev 3 | 9 Mar 2023 UNLESS OTHERWISE SPECIFIED: DO NOT Date DIMENSIONS ARE IN MILLIMETERS...
- Page 2 Preparartion and Completion Notes Britex urinals are approved for use as per the accompanying certifications and can be coupled with cisterns, flush valves & sensor flushing systems according to specific model requirements. It is the installer’s responsibility to ensure that the urinal is installed in accordance and to the regulations of...
- Page 3 Batter / Fall on face is 75mm over height WASTE & COVER 75 batter Ø50 FRONT ELEVATION with SECTION FLUSH ENTRY POINT (Rear entry shown) Australia’s Finest Stainless | britex.com. UESI-LF Installation Guide | QID 1.11 | Rev 3 | 9 Mar 2023...
-
Page 4: Installation Instructions
The urinal must be fully supported to alleviate any flexing. No air pockets should be present. d. Weighted timbers can be placed within the trough to maintain the formation of the trough. Australia’s Finest Stainless | britex.com. UESI-LF Installation Guide | QID 1.11 | Rev 3 | 9 Mar 2023... - Page 5 SHEET 3 OF 3 SCALE:1:10 brite DIMENSIONS ARE IN MILLIMETERS 3500.1 & AS/NZ 3500.2. For further support and after-sales care, please contact Britex. Australia’s Finest Stainless | britex.com. UESI-LF Installation Guide | QID 1.11 | Rev 3 | 9 Mar 2023...
-
Page 6: Care And Maintenance
Once all dirt, oil and grime is removed, rinse thoroughly with clean water and wipe dry. Australia’s Finest Stainless | britex.com. UESI-LF Installation Guide | QID 1.11 | Rev 3 | 9 Mar 2023... -
Page 7: Spare Parts
BRITEX at no charge, provided that the terms of the manufacturer’s warranty are followed. This warranty is the only warranty given by BRITEX, and we expressly disclaim all other warranties, including but not limited to implied warranties of merchantability and fitness for a particular purpose. - Page 8 (03) 9466 9000 t (02) 9531 2100 t (08) 9249 5464 t (07) 3363 2400 t 1300 764 744 e vic@britex.com.au e nsw@britex.com.au e wa@britex.com.au e qld@britex.com.au e sa@britex.com.au UESI-LF Installation Guide | QID 1.11 | Rev 3 | 9 Mar 2023...
