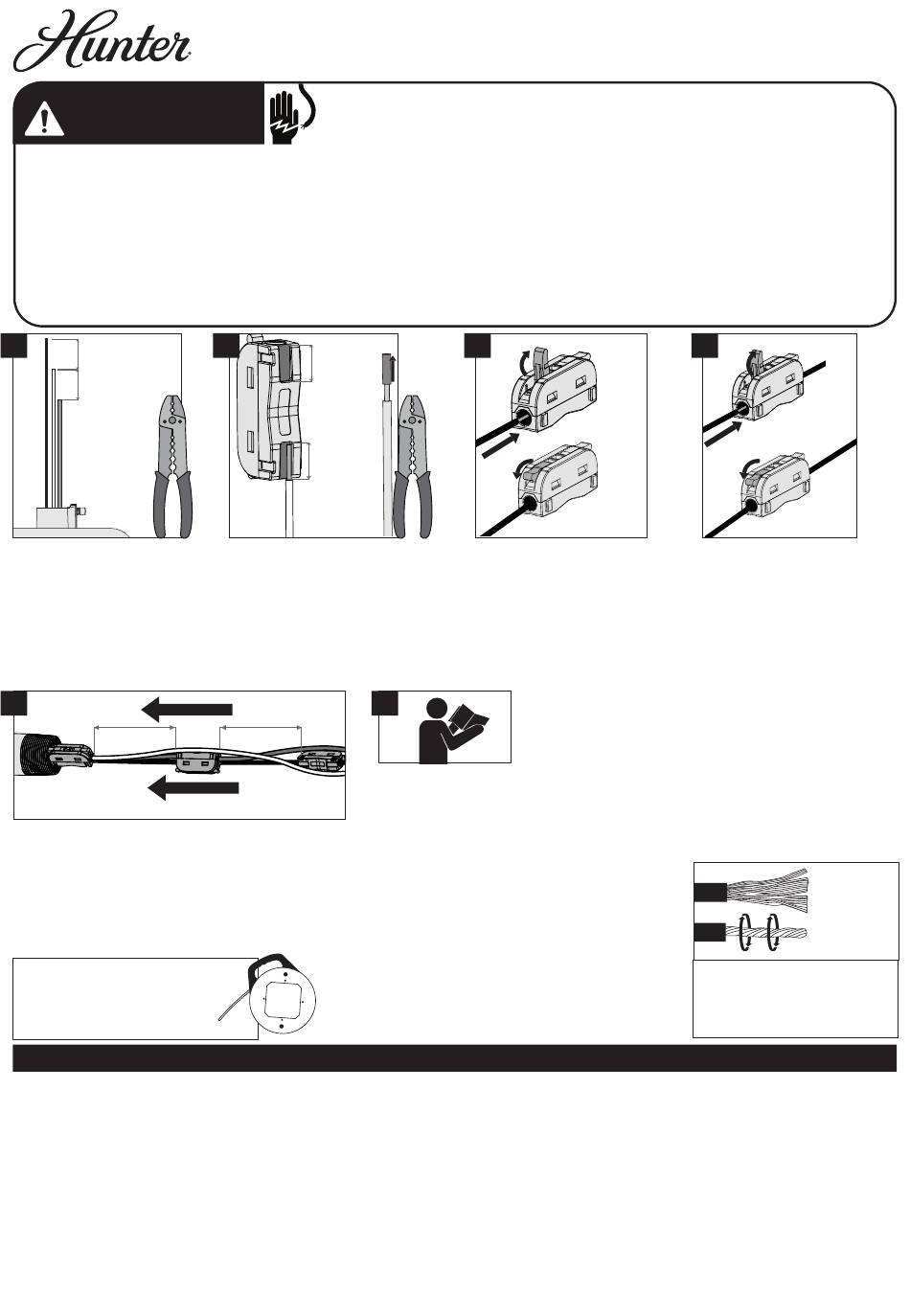

Hunter 99779 Quick Start Manual

WARNING
• To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by
turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot
lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag,
to the service panel.
• All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are
unfamiliar with wiring or in doubt, consult a qualified electrician.
• The ceiling fan must be grounded. If the ground wire for the installation site is not present,
immediately STOP installation and consult a qualified electrician.
1
3 inches
(76 mm)
3 inches
(76 mm)
Use wire cutters to cut each
fan wire. The lengths of
the three wires must be
staggered by at least 3
inches (76 mm) to allow the
connecters to be inserted into
the downrod more easily.
5
3 inch
(76 mm)
Always keep connectors separated by about 3
inches (76 mm) when away from each other when
inserting wires into downrod as shown in the
picture. Pass all wires to one side of the horizontal
bar in the downrod assembly. Remember to move
the ground wire from the provided downrod to the
new downrod. (See the picture 5).
NOTE: Fishtape is recommended
to feed wire extentions and
connectors through downrod.
HUNTER FAN COMPANY ACCESSORY LIMITED WARRANTY
The Hunter Fan Company makes the following limited warranty to the original purchaser of this accessory ("Accessory"): Your accessory is
warranted to be free from defects in material and workmanship for a period of one year from the date of sale. If the Accessory malfunctions
or fails within the warranty period due to a defect in material or workmanship we will replace it free of charge. IF THE ORIGINAL PURCHASER
CEASES TO OWN THE Accessory, THIS WARRANTY AND ANY IMPLIED WARRANTY, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE VOIDED. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. THE
DURATION OF ANY IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, IN RESPECT TO ANY Accessory, IS EXPRESSLY LIMITED TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE FOR
SUCH Accessory. This warranty excludes malfunctions or failures which were caused by repairs by persons not authorized by us, mishandling,
improper installation, modifications, or damage to the Accessory while in your possession, or unreasonable use. IN NO EVENT SHALL HUNTER
FAN COMPANY BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
60 in. Wire Extension Kit - Model 99779
2
3/8 inch
(9 mm)
3/8 inch
(9 mm)
Strip 3/8 inch (9 mm) of
insulation from the fan
wires. Use guide on back
of connector for 3/8 inch
(9 mm) reference.
6
3 inch
(76 mm)
Refer to your fan
installation manual to
connect the downrod to
the fan and to tighten the
setscrew with pliers to
secure the downrod before
hanging the fan and
connecting the wires.
3
x3
Lift lever on connector until
fully upright to open. Insert
stripped wire and secure
by lowering lever. Make
sure no bare or uninsulated
wire is exposed. Repeat for
remaining wires.
4
x3
Remove precut insulation
from each extension wire.
Lift opposite connector
lever until fully upright
to open. Insert stripped
extention wire of same color
and secure by lowering
lever. Make sure no bare or
uninsulated wire is exposed.
Repeat for remaining wires.
NOTE: Twist wire strands
prior to inserting into
connector.
MA559 r122022
