Summary of Contents for RVS Air Vue RVS-AVL

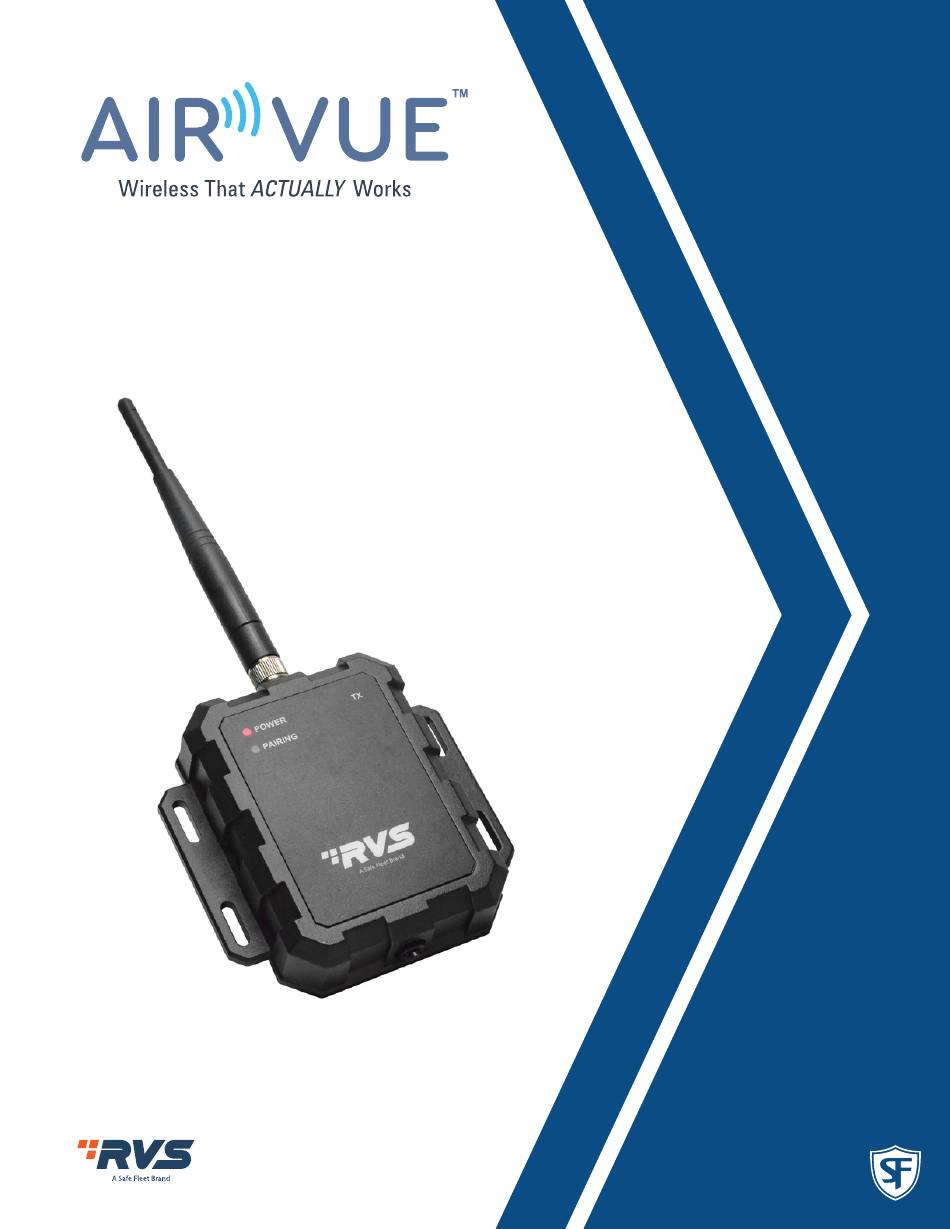

- Page 1 2.4GHz Digital Wireless Transmitter with PLC RVS-AVL Instruction Manual © Rear View Safety 2023...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ....................3 In The Box ......................3 Safety Information ..................4-6 Precautions ....................7 Product Features ..................9 Technical Specifications ................10 Connection Diagram ..................11 Connection and Operation Instructions ..........11 Troubleshooting ....................12 Warranty ......................14 Disclaimer ....................15 © Rear View Safety... -
Page 3: Introduction
INTRODUCTION Congratulations on purchasing a Air Vue Digital Wireless Transmitter! With this manual you will be able to properly install and operate the unit. The accompanying monitor for this wireless transmitter is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. -
Page 4: Safety Information
SAFETY INFORMATION PLEASE READ THE ENTIRE MANUAL AND FOLLOW THE INSTRUCTIONS AND WARNINGS CAREFULLY. FAILURE TO DO SO CAN CAUSE SERIOUS DAMAGE AND/OR INJURY, INCLUDING LOSS OF LIFE. BE SURE TO OBEY ALL APPLICABLE LOCAL TRAFFIC AND MOTOR VEHICLE REGULATIONS AS IT PERTAINS TO THIS PRODUCT. - Page 5 While installing the RVS System be careful with the wire positioning in • order to avoid wire damage. The RVS System should only be used when the vehicle is in reverse. • Do not watch movies or operate the monitor while driving; as it may cause •...
- Page 6 If you have questions about this product, please contact us at: 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 7: Precautions
PRECAUTIONS Storage and Keeping 1. Do not expose the device to excessive heat or cold. The storage temperature of this device is -30~+80°C. The operating temperature of this device is -20~+70°C with a maximum relative humidity of 90%. 2. Avoid dropping or striking this device. 3. - Page 8 MAINTENANCE Remove all cable connections from the device before cleaning the unit. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute risk of electric shock to persons.
-
Page 9: Product Features
2. PRODUCT FEATURES Antenna 4 Pin Camera Connector Power (1) Power supply: DC10-32V (2) Supply 12V voltage for camera (3) Supports AHD 720P or AHD 1080P camera (4) Metal housing, solid, suitable for outdoor use (5) Waterproof protection level: IP69K (6) Power &... -
Page 10: Technical Specifications
3. TECHNICAL SPECIFICATIONS DC 10-32V Power supply Video input AHD720P / AHD1080P H.264 Video Codec Operation frequency 2400 - 2483.5 MHz (ISM band) Modulation QPSK 6Mbps RF Bit Rate FHSS Spread spectrum Transmitter Power FCC < 26 dBm, CE < 20 dBm, MIC < 10 dBm Receiving Sensitivity -78dBm FCC <... -
Page 11: Connection Diagram
4. CONNECTION DIAGRAM 4. CONNECTION AND OPERATION INSTRUCTIONS Connect the transmitter to the same DC power circuit as the monitor. Connect the camera to the transmitter. When the transmitter is powered on, the “POWER” indicator turns red, and the system will start to automatically pair to the available monitor on the same power circuit. -
Page 12: Troubleshooting
5. TROUBLESHOOTING Monitor Displays Blue Screen & Displays No Signal Do a hard reset, unplug all cables and power cables and leave out for 1 • minute and then re-connect them. Check to ensure that the connection to the camera is tight. •... - Page 13 Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
-
Page 14: Warranty
ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. -
Page 15: Disclaimer
DISCLAIMER REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS. - Page 16 Engineered For Vehicle Safety If you have questions about this product, please contact us at: 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada...
