Sunsky BC85 Manual

BC85 Car Bluetooth FM Transmitter
Manual

Product:

1. Bluetooth、FM audio transmission
2. Support QC3.0、 QC2.0、 PD、 Huawei FCP、 Samsung AFC、
BC1.2、Apple 2.4A and other charging protocols
3. Support WMA、MP3、WAV、APE、FLAC music formats
4. Support bluetooth hands-free、music、navigation
5. Support output over voltage protection, short circuit
protection, over current protection, over temperature
protection
6. Battery voltage real-time detection,low voltage flashing
alarm
7. Automatic connect
8. Support U-disk /TF card peripherals
9. EQ sound can be adjusted
10. Synchronized display of music lyrics
11. Support break-point memory

Product specifications:

1. Bluetooth version:5.0
2. FM frequency:87.5 Mhz-108.0 Mhz
3. Bluetooth effective distance:10m
4. QC3.0 port output:5V/3A、9V/2A、12V/1.5A
5. PD port output:5V/3A、9V/2.22A、12V/1.67A
6. Music port:5V/2A
7. Input voltage:12V-24V
8. U-disk/TF card capacity :MAX 32GB

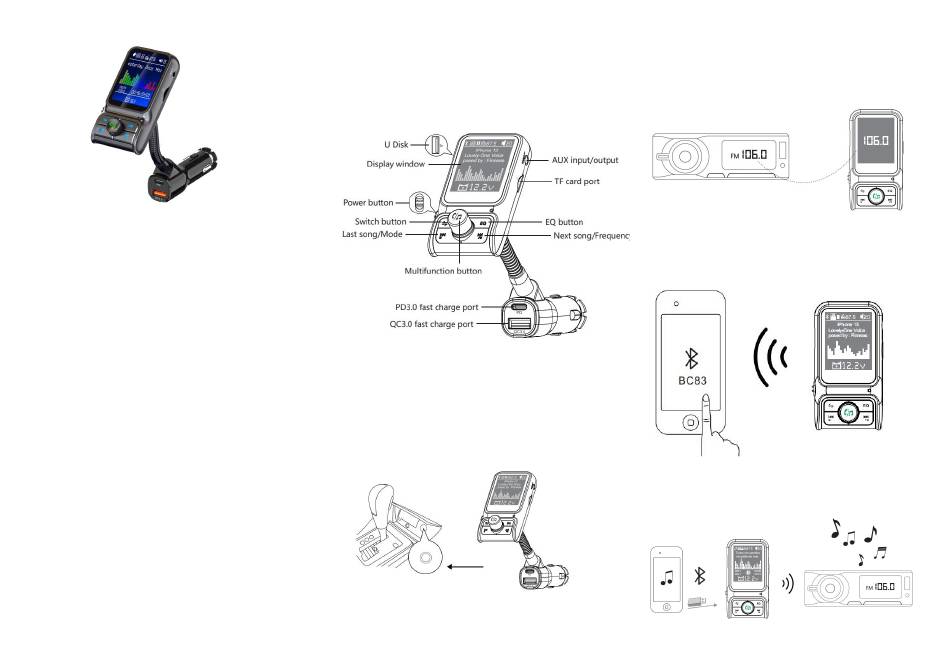

Product Diagram：
Operation instructions：
1. Insert the product into the cigarette lighter
of the car after vehicle start
2. Turn the device switch to the ON position
3. Turn on the car FM radio,and choose the blank
FM channel
4. Adjust the product frequency same as your car
radio
5. Open the Bluetooth of smart device and search
for the "BC85" and click connect
6. After the connection is successful, you can play
music,navigate or make/answer calls.
