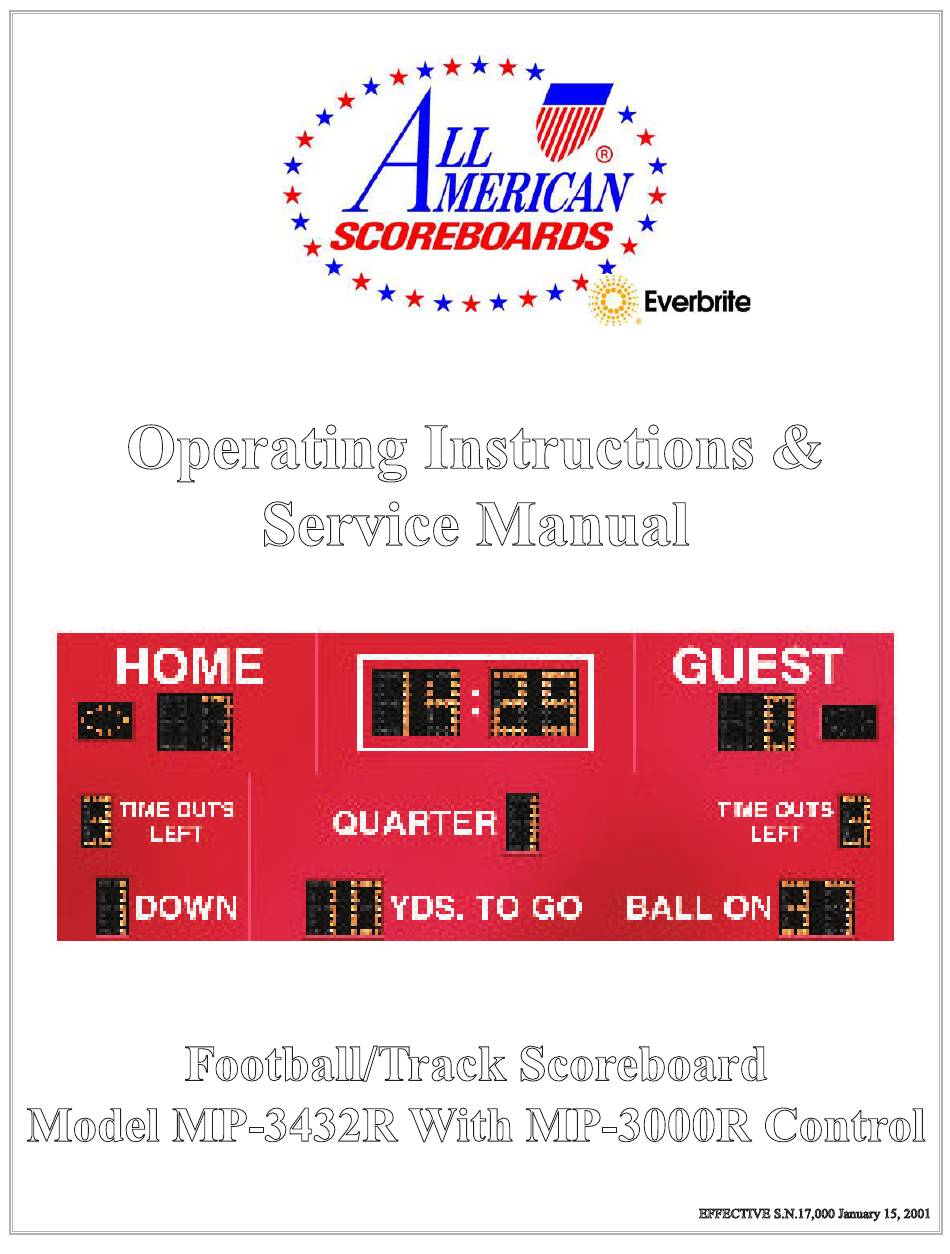

- Page 1 Operating Instructions & Service Manual Football/Track Scoreboard Model MP-3432R With MP-3000R Control EFFECTIVE S.N.17,000 January 15, 2001...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE GENERAL INFORMATION DESCRIPTION IDENTIFICATION DAMAGE DAMAGE CLAIM PROCEDURE INSTALLATION GENERAL INFORMATION INSTALLATION ELECTRICAL CONNECTIONS CONTROL CONSOLE OPERATION SCOREBOARD POWER CONSOLE DISPLAY CONSOLE POWER INITIALIZING SCOREBOARD TIME SETTING AND CONTROL TEAM SCORES HORN (OPTIONAL) YARDS TO GO, BALL ON, DOWN, QUARTER, AND TIME OUTS LEFT DIMMER 3.10 TRACK OPERATION... -
Page 3: General Information
GENERAL INFORMATION 1.1 Description Your All American Scoreboard has been carefully inspected and tested before leaving the factory. It is possible, however, that components may be loosened or forced out of adjustment in transit. If this occurs, follow the troubleshooting guide (section 4). If equipment then fails to operate, contact immediately: ALL AMERICAN Service Department EVERBRITE Corporation P.O. -
Page 4: Installation
1 ea AC Adaptor 1 ea Horn (if ordered) IMPORTANT! The MP-40 cable supplied by ALL AMERICAN SCOREBOARDS for use on the Microprocessor based scoreboards is specifically designed for this system. Use of a substitute cable may void the warranty on the scoreboard! 2.2 Installation... -
Page 5: Electrical Connections
2.3 Electrical connections The MP-3432R scoreboard requires two 120 V. 40 AMP AC circuits. This can be accomplished by a single phase 3 wire 60 amp service. IMPORTANT!!! To protect the control from damage, it is advisable that you disconnect the control and store in a dry secure area when not in use. -
Page 6: Initializing Scoreboard
3.4 Initializing Scoreboard Enter the two digit code (61) shown in the lower left corner of the keyboard as in the following example: Push CODE 6 1 ENTER . When the proper code has been entered, the console display will show as follows: The scoreboard display will now show :00 in the time section. -
Page 7: Yards To Go, Ball On, Down, Quarter, And Time Outs Left
The horn will blow automatically at the end of each period for 2 seconds. The automatic horn function may be disabled by using the AUTO HORN key. An ‘H’ is displayed on the LCD when this function is enabled. 3.8 Yards To Go, Ball On, Down, Quarter, and Time Outs Left Entries to the above function is made in the same manner as direct entry for Team Scores. -
Page 8: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING 4.1 Introduction This section gives maintenance and troubleshooting information. Included are troubleshooting guides for typical scoreboard malfunctions. If the cause of a problem cannot be determined, please contact the Customer Service Department. WARNING!! 110 VAC wires are exposed whenever the cover over the controller assembly is removed from the scoreboard. - Page 9 If the voltage is between 8-12 VAC see the replacement parts list for a receiver PCB assembly, and contact the Customer Service Department. The scoreboard digits light but the console doesn’t work: Check for continuity between the scoreboard and the junction box. If an open circuit is found, the problem is either the cable or a cable connection.
-
Page 10: Replacement Parts List
REPLACEMENT PARTS 5.1 Scoreboard Display Parts figure 1 DISPLAY ASSEMBLY s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3432r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 08/01/02... - Page 11 REPLACEMENT PARTS LIST (MP-3432R Football) fig.& MFG PART VENDOR fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # index NUMBER DESCRIPTION PART # 121894X Display Set 121894X 850022 Lamp, 15W/130V Clear 15A15CL 850030 Lamp, 25W/130V Clear 25A19 GR CL 151206 Controller Assembly, MP-3432R 151206 *****SEE DETAIL FIGURE 2*****...
-
Page 12: Scoreboard Controller Assembly Parts
5.2 Scoreboard Controller Assembly Parts figure 2 CONTROLLER ASSEMBLY REPLACEMENT PARTS LIST (MP-3432R) Controller Assembly fig.& MFG PART VENDOR fig.& MFG PART VENDOR index NUMBER DESCRIPTION PART # index NUMBER DESCRIPTION PART # 151206 Controller Assembly 151206 150040 Receiver PCB Assy, 11.0592 MHZ crystal 150040 *** PROGRAM 3432.CNTW *** 118922... -
Page 13: Diagrams
DIAGRAMS 6.1 Control Console Keyboard and Slipsheet Layout 3432R FOOTBALL CONSOLE KEYBOARD s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3432r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 08/01/02... -
Page 14: Scoreboard System Layout (C-7430)
6.2 Scoreboard System Layout SYSTEM LAYOUT s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3432r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 08/01/02... -
Page 15: Single Junction Box Wiring (B-121273)
6.3 Single Wall Junction Box Wiring SINGLE JUNCTION BOX WIRING s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3432r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 08/01/02... -
Page 16: Power Wiring
6.4 Power Wiring POWER WIRING s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3432r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 08/01/02... -
Page 17: Controller Assembly Wiring (D-170203)
6.5 Controller Assembly Wiring CONTROLLER ASSEMBLY s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3432r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 08/01/02... - Page 18 6.6 Microprocesor 4 X 7 Lamp Pattern (8 Bit) MICROPROCESSOR 4 X 7 (8 BIT) LAMP PATTERN s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3432r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 08/01/02...
- Page 19 6.7 Figuregram Wiring 8 BIT FIGUREGRAM WIRING s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3432r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 08/01/02...
-
Page 20: Jumper Location On 3 Position System
6.8 Jumper Location on 3 Position System All of the 3 position drivers and receivers are identical except for the jumper on each board. Make sure the jumpers are set for the model of scoreboard you are installing them into. On the receiver board (refer to figure 11);... - Page 21 6.9 Triac Placement The triac is the switch that controls the figuregram lamps. The triacs for any given figuregram are adjacent to the twelve pin connector on the driver board that controls that figuregram. Shown below is the triac placement and bit designation relative to the figuregram bit pattern. PN.
- Page 22 6.10 Installation Drawing INSTALLATION DRAWING s:\shared\stacey\scoreboard manuals\incomplete manuals\mp-3432r.indd 401 South Main Street • Pardeeville, WI 53954 • 800-356-8146 08/01/02...
