ReptiZoo HO T5 Instruction Manual

INSTRUCTION MANUAL OF HO T5
UVB LIGHTING COMBO KIT
AT28
Thanks for choosing our company's products. In order to use
this product properly and ensure its service life, please read
the instructions book carefully before using it.
1.PRODUCT OVERVIEW

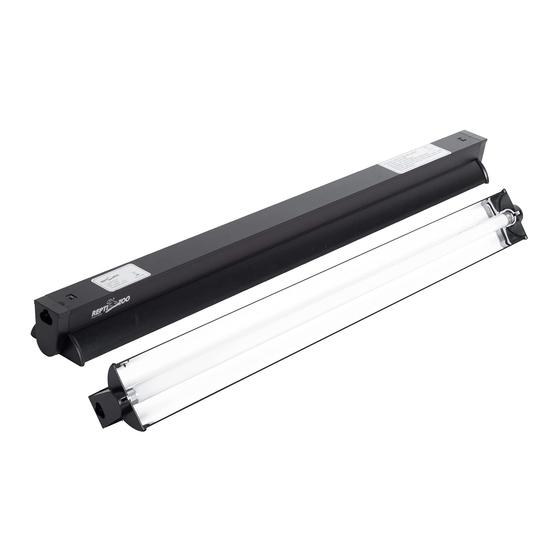

This product is a simple, fashionable, efficient and energy saving T5 UVB lighting combo
kit. It provides UVB for pets, which promotes the absorption of calcium. It is suitable for
REPTI-ZOO RK glass terrariums, RHK reptile glass terrariums, AC full air screen cages
and other reptile terrariums and aquariums.
2.PRODUCT LIST
2
1. Lighting hood：1 pc
2. T5 UVB lamp：1 pc
3. Power cord： 1 pc
3
4. Instruction manual：1 pc
1
5. Accessories includes hanging
plate 2pcs, self-tapping screw 2pcs, M3 screw 4pcs and butterfly nut 4pcs.
3.PRODUCT FEATURES
1. Fashionable aluminum alloy shell and efficient heat dissipation.
2. Quick plug power cord with independent switch, it is practical and easy to disassemble.
3. A variety of installation methods. It can be installed on wooden vivariums, glass
terrariums, screen cages, etc.
4. High specular reflector can effectively improve the output efficiency, promote the
absorption of calcium for pets.
5. Built-in high quality ballast, quick to start and no flicker.
4.TECHNICAL PARAMETER
1. Voltage：AC120~240V/50-60HZ
2. Power cord length: 1.5 meters
3. Size and wattage
MODEL SIZE（mm) Max WATTAGE（W）
AT2824ST 575x58x42mm 24W Suitable for T5 UVB 24W lamp
AT2839ST 875x58x42mm 39W Suitable for T5 UVB 39W lamp
AT2854ST 1175x58x42mm 54W Suitable for T5 UVB 54W lamp
5.INSTRUCTIONS
Install the lamp:
Align the pins on both ends of the lamp with the notches of the lamp holder and press
them in gently, turn it clockwise or counterclockwise 90 degrees, and you will hear the "click"
sound. That means it is well installed.
Installation and fixation:
(1) Installed lighting hood outside the terrarium:
Place the strip light fixture on top of the terrarium, and keep away from water surface at
least 15mm.
(2) Installed inside the terrarium:
Choose mounting position to assemble hanging plate. First, use a self-tapping
screw (TA4.0*20) to drill holes in the mesh cover and then take them out. Then fix the
two sides of the hanging plate and the mesh cover with M3 screw and butterfly nut
respectively. After the hanging plate is fixed, push the lamp into the clamping position
of the hanging plate.
5
(3) Installed on the vivarium:
After install the mounting plate, use self-tapping screw (TA4.0*20) against the middle
hole of the hanging plate to firmly lock the screw onto the board. After the hanging plate
is fixed, fix the lamp into the clamping position of the hanging plate.
REMARK
(4) After install lamp fixture, install negative connector plug on power cord onto the
lighting hood and positive connector plug to socket, and turn on the power.
(5) Up to 4pcs lamp hood can be connected in series at the same time.
