Summary of Contents for Edu-Logger 900-216

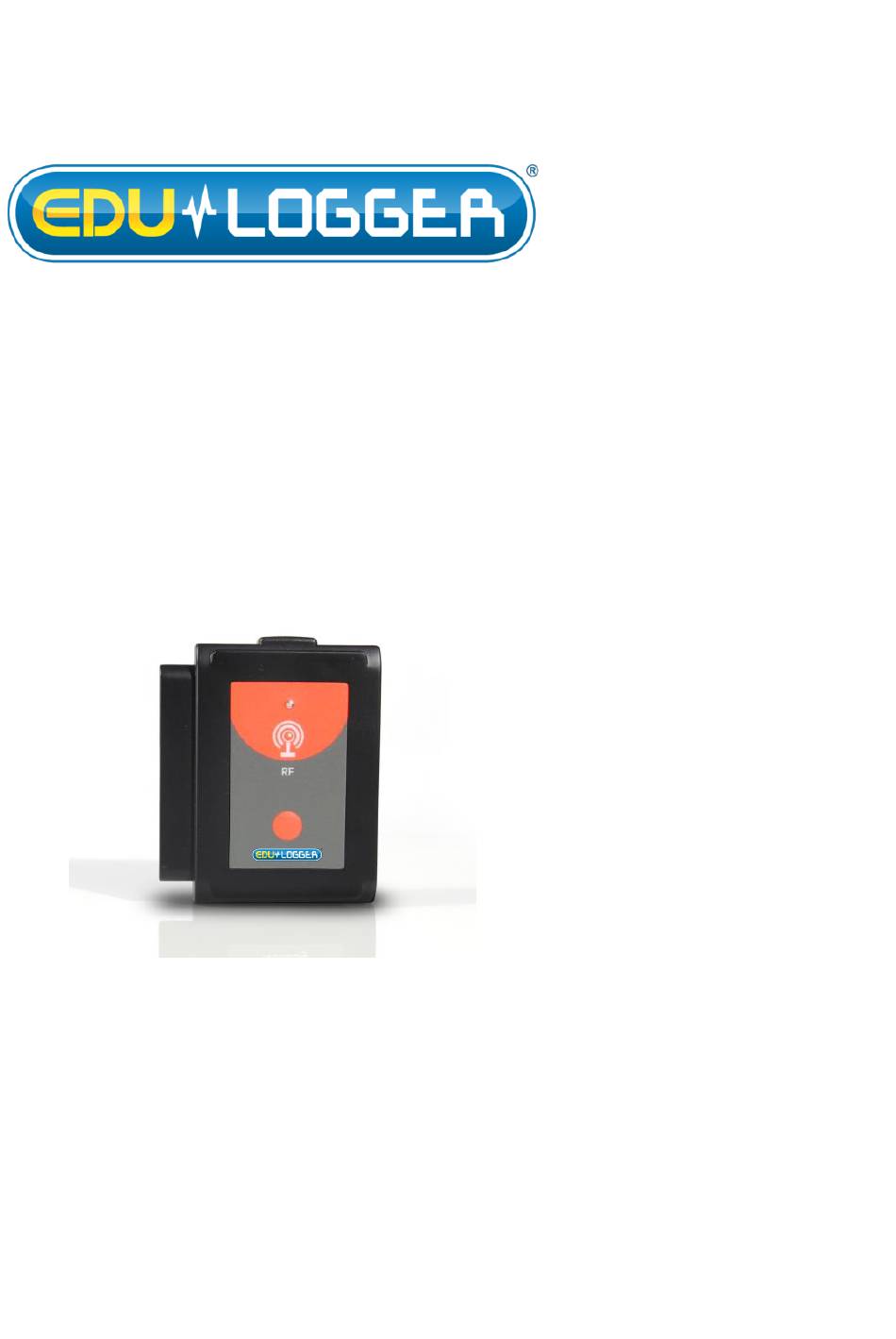

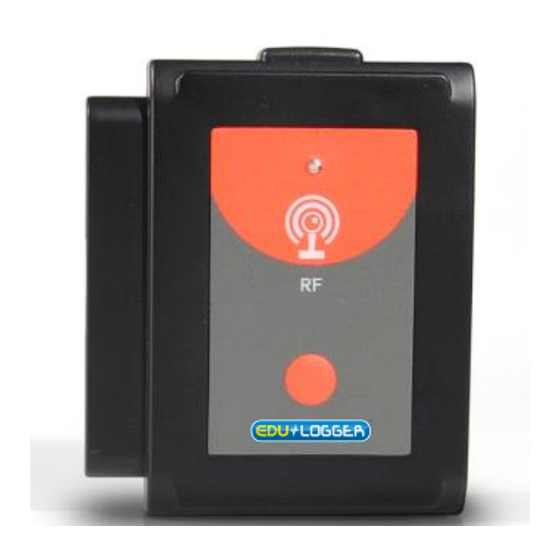

- Page 1 Edu-Logger Radio Frequency Module 900-216...
- Page 2 – acting similarly to a very long cable between the sensor and a computer to stream data to the Edu-Logger software in real time. The working range of the RF module is up to 20...
- Page 3 Using Edu-Logger RF modules: As with all Edu-Logger devices, setting up the RF communication modules is very quick and easy. It is important however to follow these few steps to properly collect data. Materials needed: 2 RF communication modules (900-216) ...
- Page 4 Connect whichever sensors you wish to use into the left side of the second RF module (which is connected into the battery). Note: You can conduct experiments with up to 5 Edu-Logger sensors using the RF modules. Open Edu-Logger software;...
- Page 5 For reference, the image below demonstrates roughly how your setup should appear.
- Page 6 Specifications: 2.4 GHz DSSS Frequency (Direct-sequence spread spectrum) Bit Rate 1 Mbps Maximum 20 meters in open air. Range Included in package: 2 Edu-Logger RF communication modules Edu-Logger RF communication module instruction guide (this document)
- Page 7 Maintenance and storage: Never submerge the Edu-Logger plastic body in any liquid. After use, gently wipe away any foreign material from the RF module Store in a box at room temperature out of direct sunlight. Warranty: We promise to deliver our sensor free of defects in materials and workmanship for a period of 3 years from the date of purchase.
- Page 8 Thank you for using Edu-Logger! Flexible, simple, fast, forward thinking. www.edulab.com info@edulab.com V10012013...
