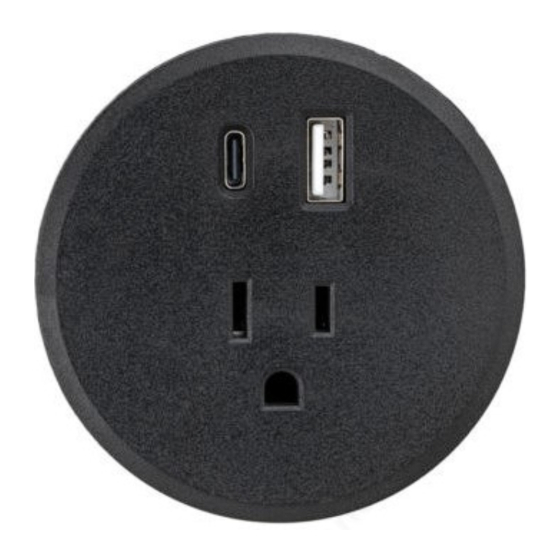

- Page 1 REV 01 INSTALLATION SHEET Round Power Socket User Manual DS86101P1A1C90 Round Power Socket PAGE 1 INSTALLATION SHEET...
- Page 2 Specification configuration: 1 power socket, 2 USB charging ports (Type-A + Type-C/ 5V 3.1A), 1.5m power cable voltage: 120V 76mm 1. Cut a hole of size Ø 60-70mm 60mm 2. Put the product into the hole 59.5mm Then slide the fixing ring up from bottom And screw it tight if additional securing is needed 3.
- Page 3 REV 01 FEUILLET D’INSTALLATION Manuel de l’utilisateur Prise de courant ronde DS86101P1A1C90 Prise de courant ronde PAGE 1 FICHE D’INSTALLATION...
- Page 4 Spécifications de configuration : 1 prises de courant, 2 ports de charge USB (type-A + type-C / 5 V 3,1 A), câble d’alimentation de 1,5 m (59 1/16 po), 120 V 76mm 1. Percer un trou de Ø 60-70mm (2 13/32-2 3/4 po) 60mm 2.
