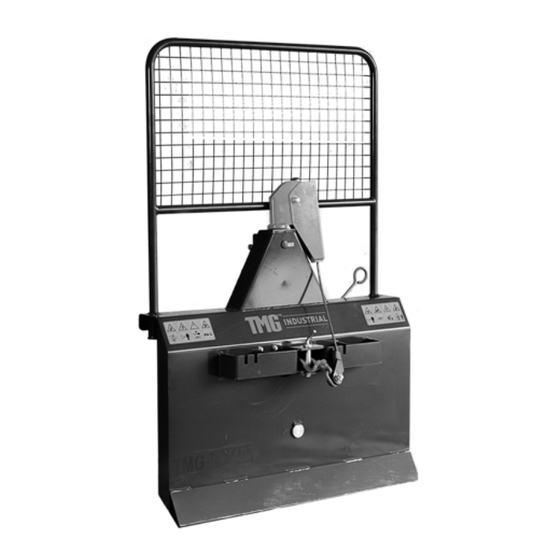

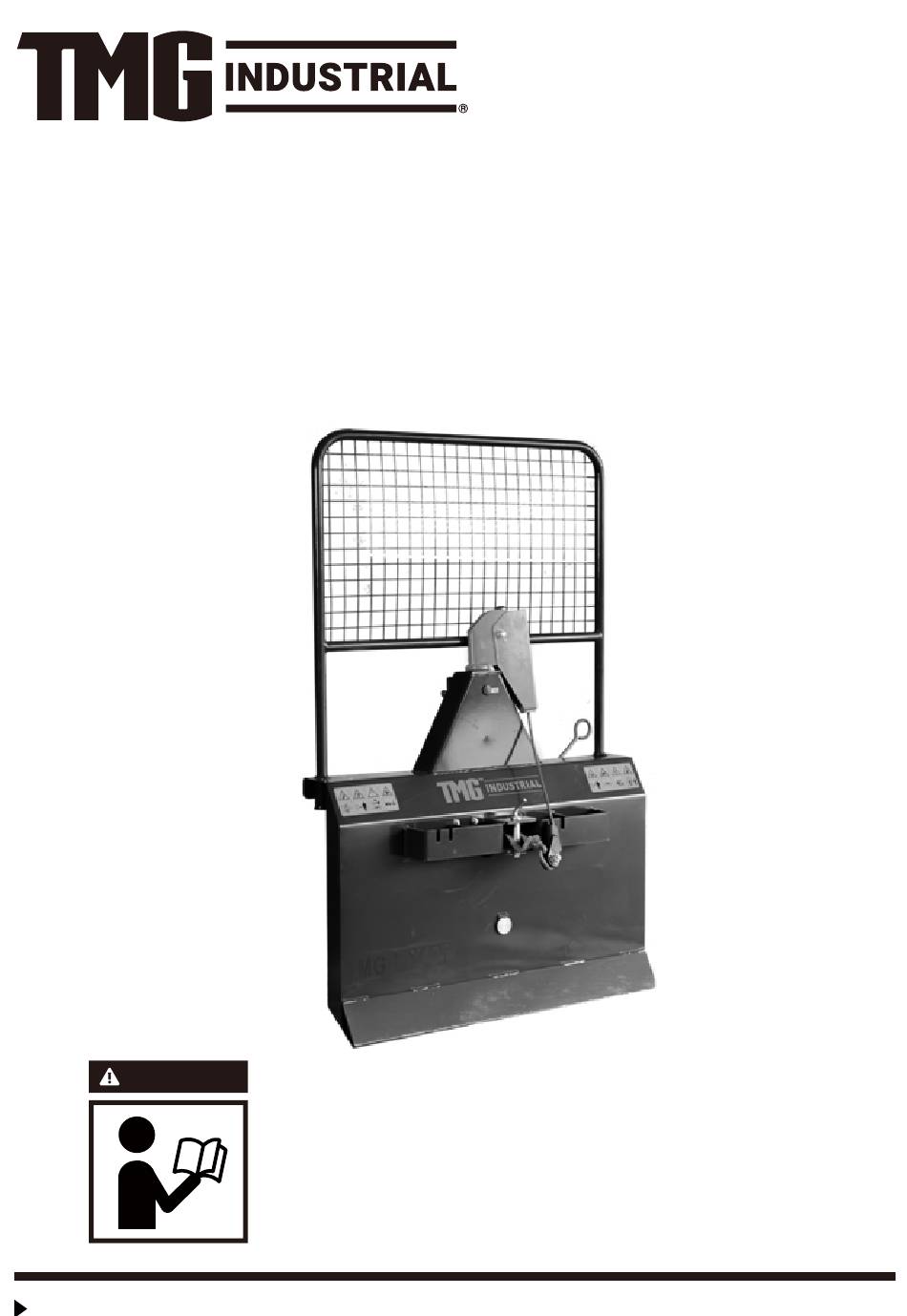

8800 LB 3-POINT FOREST
SKIDDING WINCH
WARNING
www.tmgindustrial.com
• Please read and understand the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
• Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or have questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
TMG-FW40T
PRODUCT MANUAL
v.2022.11.14
TOLL FREE: 1-877-761-2819

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-FW40T and is the answer not in the manual?

Questions and answers

Summary of Contents for TMG TMG-FW40T

  • Page 1 TMG-FW40T PRODUCT MANUAL v.2022.11.14 8800 LB 3-POINT FOREST SKIDDING WINCH WARNING • Please read and understand the product manual completely before assembly • Check against the parts list to make sure all parts are received • Wear proper safety goggles or other protective gears while in assembly •...

  • Page 2: Table Of Contents

    DJUSTMENT ................................7 RACTOR OUNTING ................................. 8 NWINDING SPECIFICATION ................................. 8 & C ............................. 8 PECIFICATIONS APACITIES PARTS LIST ..................................9 TMG-FW40T 3-PTO F ....................9 OREST KIDDING INCH SSEMBLY TMG-FW40T 3-PTO F .................... 10 OREST KIDDING INCH ARTS www.tmgindustrial.com...

  • Page 3: Important Safety Information

    Your Safety YOU are responsible for the SAFE operation and maintenance of your TMG 3-PTO Forest skidding winch. YOU must ensure that you and anyone else who is going to use, maintain or work around the 3-PTO Forest skidding winch be familiar with the using and maintenance procedures and related SAFETY information contained in this manual.
  • Page 4 they are not visible during transport on public roads, install additional lights on the winch. 12. Adjust the driving speed to the environmental conditions. When driving up or down or across a slope avoid sudden turning of the steering wheel. 13.
  • Page 5 Figure 3 Figure 4 Figure 5 28. Do not use the winch for unintended purposes (lifting loads, etc.).(Figure 5) 29. Tractor driver and assistant must continuously communicate during their work. 30. The winch operator must continuously observe the load during the tow. If this is not possible due to the configuration of the terrain, the assistant should help.

  • Page 6: Cardan Shaft

    Figure 6 Figure 7 Cardan Shaft 1. Only use such cardan shafts which are recommended by the manufacturer. 2. The cardan shaft protection pipes, protective funnels and attachment protection must be mounted on the machine and be in perfect condition. 3.

  • Page 7: Operation

    OPERATION Description A winch is a machine intended for harvesting felled timber from the forest. The basic components are welded frame, drive part, drum with wire rope, clutch, brake, and directional pulley. Using the wire rope, the logs can be towed to the moldboard and attached with forestry chains to the grooves on the winch frame.

  • Page 8: Wire Rope Unwinding

    construction also enables easy connection to the tractor with automatic connection rods. Connect the prescribed PTO shaft and secure cardan protection with a hang chain. Be careful that the cardan clicks into place on both connection points! Once the winch is attached to the tractor, strengthen the stabilizers on the lower connection rods and level the winch with a hitch nut into position, so that the winch is tilted backwards for approximately 20 degrees.

  • Page 9: Parts List

    PARTS LIST TMG-FW40T 3-PTO Forest Skidding Winch Assembly www.tmgindustrial.com 9 / 11 TOLL FREE: 1-877-761-2819...

  • Page 10: Tmg-Fw40T 3-Pto Forest Skidding Winch Parts List

    TMG-FW40T 3-PTO Forest Skidding Winch Parts List Part No. Ref. Part Description FW40.2 Housing FW10.12 spring FW40.11 Spacer GB/T 292-94 Angular contact ball bearings 7306 AC/DB FW40.6 Friction plate assembly FW40.41 Ring welded parts FW40.7 Roller welded parts GB/T 292-94 Angular contact ball bearings 7306 AC GB/T 889.1...
  • Page 11 FW40.10 Baffle welded parts FEL300.111 Lock pin 12 NVM175.17 Upper suspension pin FW40.1 Machine base welded parts FW40.33 Trailer pin welded parts EFGC125.110 R Pin 3.2 GB/T 5783 BOLT M12*50 JB/T 7940.1 Greaser M8 FW40.43 Tie rod fixing plate NCM175.18 Lower suspension pin GB/T 5783 BOLT M10*65...
