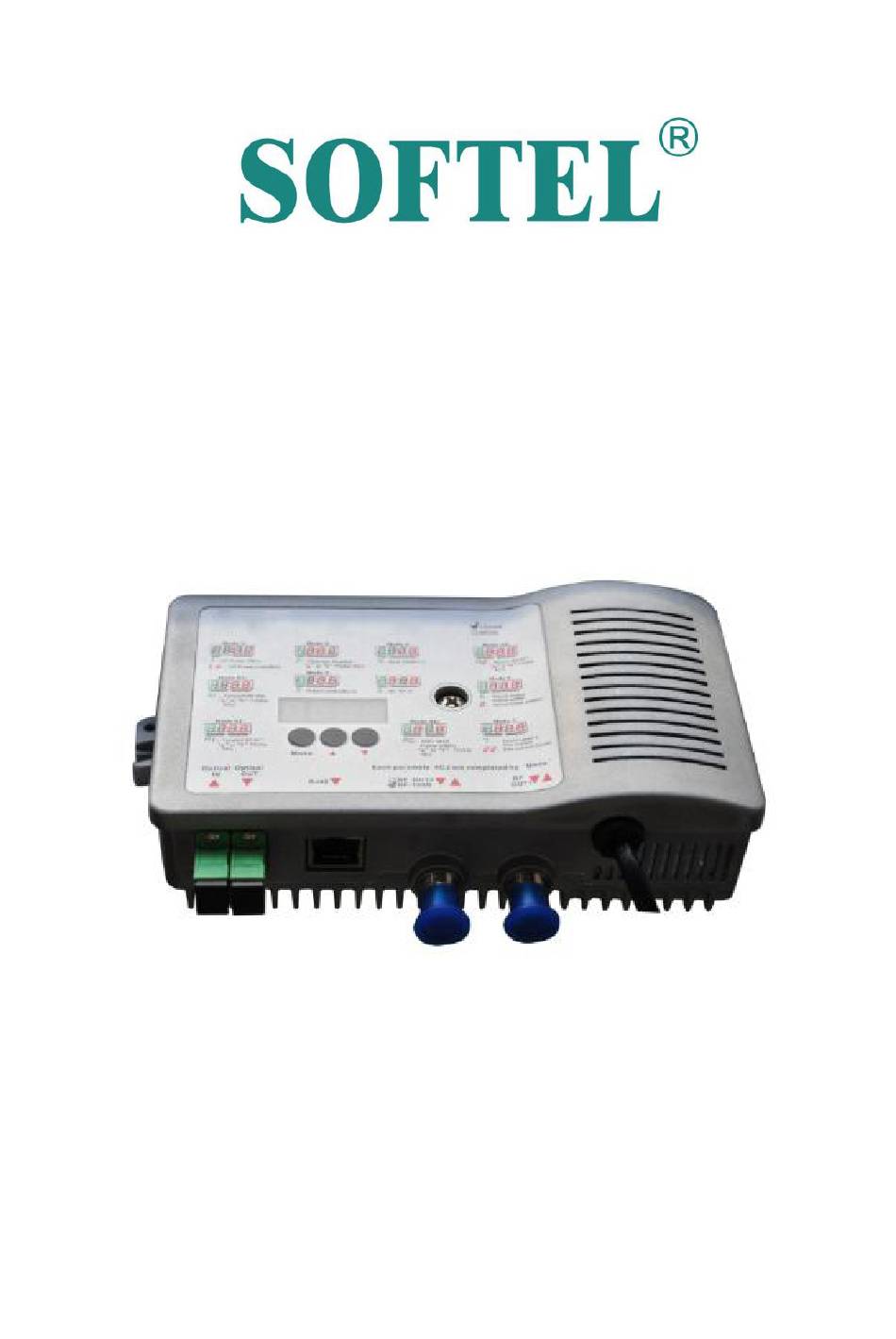

- Page 1 SR1002 Mini FTTH Optical Receiver Manual HANGZHOU SOFTEL OPTIC CO., LTD 2016.05...
-
Page 2: Product Summary
SR1002 SR1002 SR1002 Optical Optical Optical Receiver Receiver Receiver Manual Manual Manual 1. Product Summary SR1002 optical receiver is our latest 1GHz FTTB bidirectional optical receiver. With wide range receiving optical power, high output level, low power consumption. It is the ideal equipment to build the high-performance NGB network. -
Page 3: Block Diagram
SR1002 SR1002 SR1002 Optical Optical Optical Receiver Receiver Receiver Manual Manual Manual Optical Parameters Optical Emission Wavelength 1310±10, 1550±10 or specified by the user Output Optical Power 1 (or specified by the user) Optical Connector Type SC/APC RF Parameters Frequency Range 5 ~ 65 (or specified by the user) Flatness In Band ±1... - Page 4 SR1002 SR1002 SR1002 Optical Optical Optical Receiver Receiver Receiver Manual Manual Manual SR1002 with II class network management transponder, FP204 (two-way splitter) output block diagram SR1002 without network management transponder, FZ110 (tap) output block diagram SR1002 without network management transponder, FP204 (two-way splitter) output block diagram 5.
- Page 5 SR1002 SR1002 SR1002 Optical Optical Optical Receiver Receiver Receiver Manual Manual Manual 6. Function Display and Operating Instruction Mode: Mode selection button, total eleven modes. Press the mode selection button to enter the corresponding status display, eleven modes to cycle. The following is the detailed instructions：...
- Page 6 SR1002 SR1002 SR1002 Optical Optical Optical Receiver Receiver Receiver Manual Manual Manual - 6 -...
-
Page 7: Structure Description
SR1002 SR1002 SR1002 Optical Optical Optical Receiver Receiver Receiver Manual Manual Manual 7. Structure Description LED digital display tube Mode key Up key Down key Optical receiving port Optical output port Network management RJ45 interface Output 2 Output 1 Power input - 7 -... - Page 8 SR1002 SR1002 SR1002 Optical Optical Optical Receiver Receiver Receiver Manual Manual Manual 8. NMS setup instructions If users configured the network management responder, need to do the following settings: Responder IP setup instruction: Network management directly modify: Default IP is 192.168.1.168 ， default gateway is 192.168.1.1 ， default subnet mask is 255.255.255.0 Connect the computer and responder (can be direct connected), and change the computer IP to 192.168.1.XXX (XXX is any number from 0 to 255 except 168);...
- Page 9 SR1002 SR1002 SR1002 Optical Optical Optical Receiver Receiver Receiver Manual Manual Manual Failure phenomenon Failure cause Solution 1. Check the input optical power and make After connecting the 1. The input optical power of the appropriate adjustments to make it in the network, the image of the optical receiver is too high, make the specified range;...
- Page 10 SR1002 SR1002 SR1002 Optical Optical Optical Receiver Receiver Receiver Manual Manual Manual After connecting the network, the received 1. Check the type of optical fiber active optical power of the optical The optical fiber active connector connector and adopt the APC type optical contact point is unstable types do not match, maybe the APC fiber active connector to ensure the normal...
