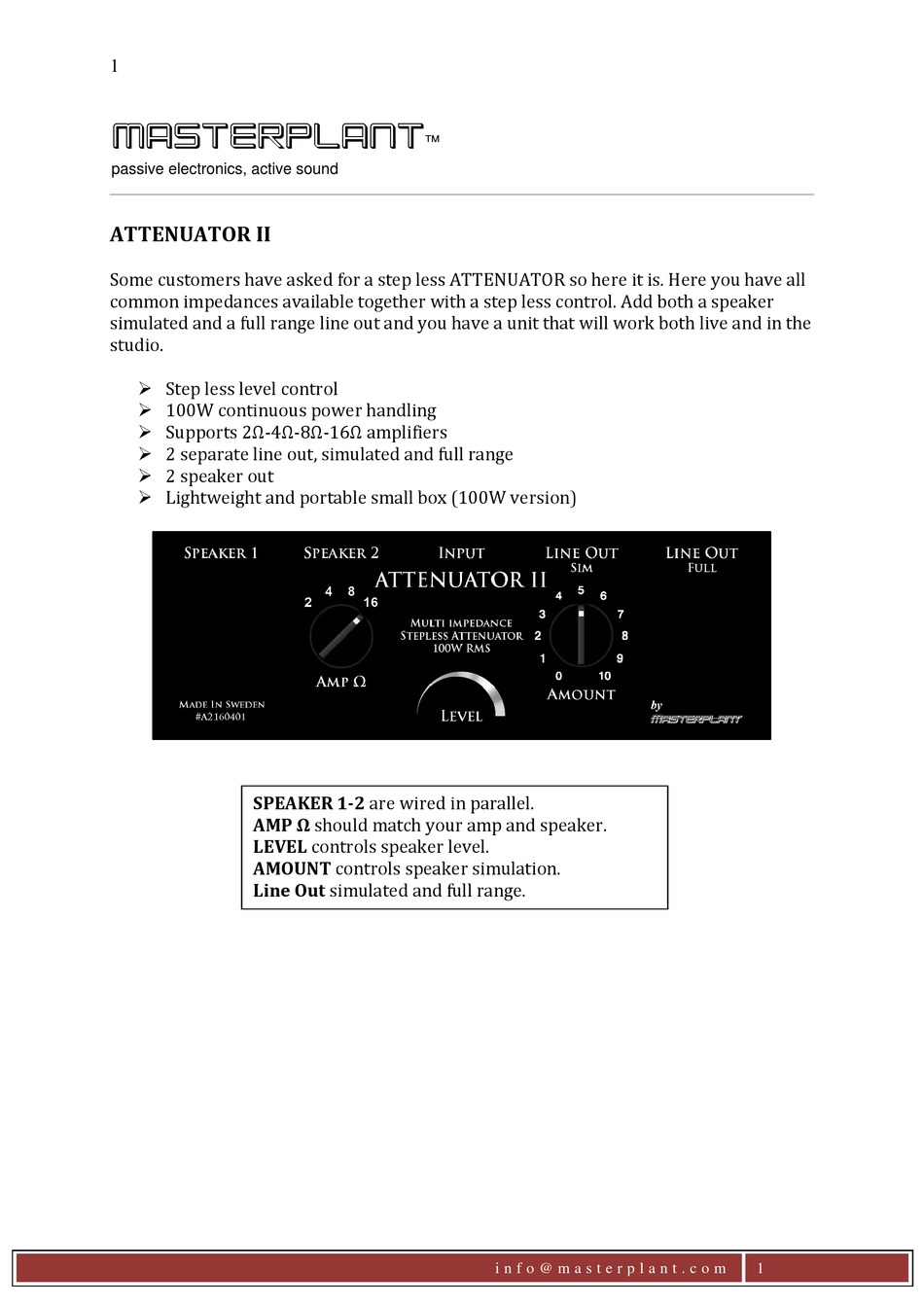

MASTERPLANT ATTENUATOR II Quick Start Manual

Hide thumbs
1
2
3

Advertisement

Table of Contents

1
masterplant
passive electronics, active sound
Some customers have asked for a step less ATTENUATOR so here it is. Here you have all
common impedances available together with a step less control. Add both a speaker
simulated and a full range line out and you have a unit that will work both live and in the
studio.
 Step less level control
 100W continuous power handling
 Supports 2Ω-4Ω-8Ω-16Ω amplifiers
 2 separate line out, simulated and full range
 2 speaker out
 Lightweight and portable small box (100W version)
SPEAKER 1-2 are wired in parallel.
AMP Ω should match your amp and speaker.
LEVEL controls speaker level.
AMOUNT controls speaker simulation.
Line Out simulated and full range.
™
i n f o @ m a s t e r p l a n t . c o m
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATTENUATOR II and is the answer not in the manual?

Questions and answers

Related Manuals for MASTERPLANT ATTENUATOR II

Summary of Contents for MASTERPLANT ATTENUATOR II

  • Page 1 ™ passive electronics, active sound ATTENUATOR II Some customers have asked for a step less ATTENUATOR so here it is. Here you have all common impedances available together with a step less control. Add both a speaker simulated and a full range line out and you have a unit that will work both live and in the studio.
  • Page 2 DIRECT Recording 1) Connect amp speaker out to ATTENUATOR input 2) Set impedances to match 3) Set Attenuator level pot to minimum 4) Connect Line Out to mixer/audio card and adjust speaker simulation ATTENUATOR 1) Connect amp speaker out to ATTENUATOR input 2) Make sure your amp is matching your ATTENUATOR 3) Connect ATTENUATOR speaker out to speaker cab 4) Adjust attenuation level...
  • Page 3 MASTERPLANT or authorised dealer. Opening the unit will void the limited warranty and any required service or update must be performed by MASTERPLANT. A copy of the original receipt must be included with the unit. Warranty will not cover damage caused by misuse or accidents. It will not cover any damage inflicted to other equipment resulting from impedance mismatching or any other faulty use.
