User Manual
Smart Wi-Fi Plug
with Dual USB and Power Monitoring
CSH-PLGPM-AC1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSH-PLGPM-AC1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Connect CSH-PLGPM-AC1

  • Page 1 User Manual Smart Wi-Fi Plug with Dual USB and Power Monitoring CSH-PLGPM-AC1...

  • Page 2: What's In The Box

    What’s In The Box • Smart Plug • User Manual...

  • Page 3: Specifications

    Specifications Power Supply: AC100 ~ 240V Input Frequency: 50/60Hz Load Current: 10A max 2400W Resistive load USB Output: 1 x USB-A, 1 x USB-C 5V/2.0A (each) Total Output: 5V/2.0A Wi-Fi: Wi-Fi 802.11 b/g/n Wi-Fi Frequency: 2.4GHz Security: WAP/WAP2 Encryption Type: WEP/TKIP/AES Working Consumption: <0.9W...

  • Page 4: Product Diagram

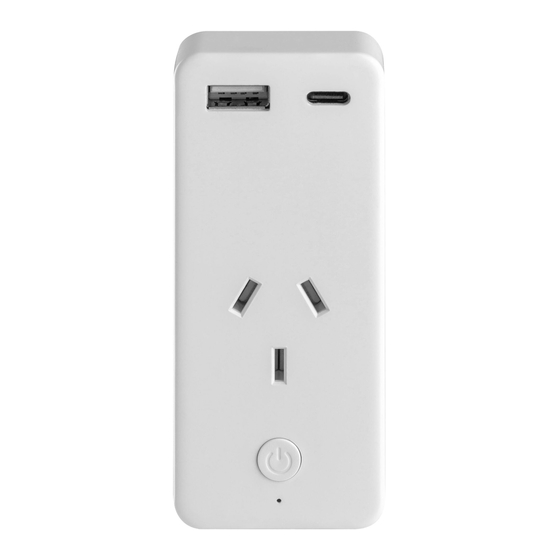

    Product Diagram USB-A USB-C AC Socket Indicator Power & Light Pairing Button...
  • Page 5 Power & Pairing Button Controls • Press and hold the pairing button for 5 seconds. • A LED indicator light will start flashing. There are 2 flashing states: • Fast Flashing = EZ pairing mode. • Slow Flashing = AP pairing mode. Note: In this manual we cover the EZ pairing mode instructions.

  • Page 6: Getting Started With The App

    Getting Started with the App 1. Install the Connect SmartHome App for your Smartphone from the iOS App Store or Google Play. 2. Log in with an existing Connect SmartHome account or create a new account.

  • Page 7: Connecting To The App

    Connecting to the App 1. Turn on the Bluetooth function on your Smartphone.
  • Page 8 2. Press and hold the Pairing Button on the smart plug for 5 seconds till you get a fast-flashing indicator light. Hold for 5 secs 3. Open the Connect SmartHome App and tap the “+” icon to add a device.
  • Page 9 Connecting to the App continued... 4. The smart plug icon should appear. Select “Add” under “Discovering Devices”. 5. Enter your Wi-Fi details.
  • Page 10 Connecting to the App continued... 6. Tap the “+” icon next to the smart plug...
  • Page 11 Connecting to the App continued... 7. When finished pairing tap “Done”, then the device will appear on the Connect SmartHome App home screen. NOTE: If you are unable to pair successfully with the smart plug, please check your Wi-Fi password and make sure you are only using a 2.4GHz...
  • Page 12 Using the Plug Settings Power On/Off Schedule Energy Monitoring...
  • Page 13 Using the Plug continued... Previous Electricity Current Electricity...
  • Page 14 Using the Plug continued... Save schedule Set shedule startime Set days schedule will action Set shedule function...
  • Page 15 Adding Connect SmartHome to the Google Home App • Open the Google Home App. • In the “Google Home” main screen, select the “+” icon to set up device.
  • Page 16 Adding Connect SmartHome to the Google Home App continued... • Select “Set up device” to add new device, then select “Works with Google”.
  • Page 17 Adding Connect SmartHome to the Google Home App continued... • A list will appear showing actions and a search function to access more apps: from here, search for the Connect SmartHome App.
  • Page 18 Adding Connect SmartHome to the Google Home App continued... • Log into your Connect SmartHome account with your email address. • Once linked, it will show the devices linked to your account: you can assign them to rooms. You will be prompted to authorize apps to sync.

  • Page 19: Troubleshooting

    Electrical category, then select Socket (Wi-Fi). Enter you Wi-Fi credentials then on the next screen in the top right change the selection from EZ Mode to AP Mode. Follow the remaining instructions outlined in the app to connect via AP Mode.
  • Page 20 Troubleshooting continued... I cannot see any Power Monitoring data. • Check you have a device connected to the smart plug and that it has been switched on. • Power usage data can take 12 – 24 hours to display in the app. You may need to leave your device running longer for the data to update in the app.
  • Page 21 • Check the power is switched on in the app. • Check your mobile phone has a network or data connection and that it can connect to the internet. • Check any individual power switches or overload switches on connected devices.
  • Page 22 Thank you for your purchase! We are 100% Australian owned & operated. To get the most out of your product please read the user manual carefully and keep for future use. For specific information relating to your product such as Spare Parts, FAQs, Warranty claims, and more, please scan the following QR code: SPK-ST40-972...

  • Page 23: Visit Our Website

    Visit our website www.connectsmarthome.com.au Check us out at...
