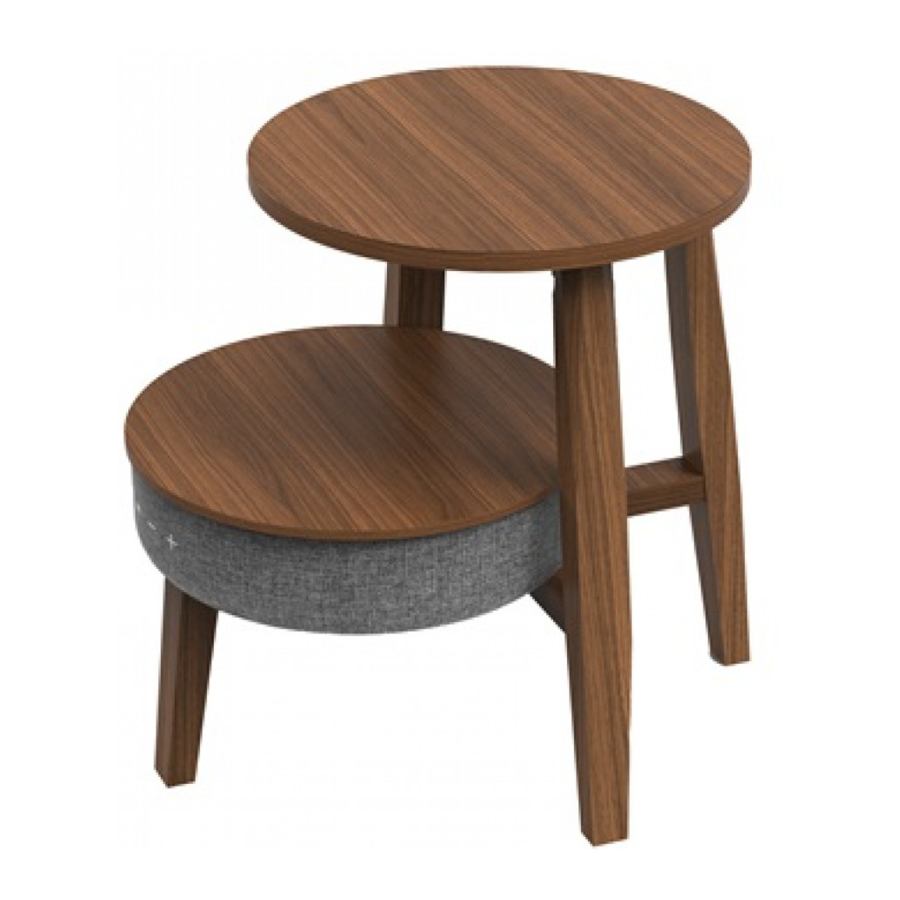

SINOX SXBT2500, SXBT2502 - Table Bluetooth Speaker Manual

Warning

1. The maximum bear weight of this product is 5Kgs, the consumers couldn't put any item more than 5Kgs on this product, otherwise, the consumers will bear the damage to this product by themselves.
2. This product couldn't be used as seat, no matter adult, or children, couldn't sit on this product, otherwise, the consumers will have to bear by themselves the damage to this product, and the damage to your health.
3. Please use the original A/C adapter for charging, if not, it may cause the speaker to be charged slowly or cannot be charged at all. In extreme cases, A/C adapter will be burned out or other accident occurred!

What is in the box

Assemble Steps

1. Take leg and legs to assemble with threaded studs A into the hole.


2. Put the main body upside down onto a clean flat surface. Take one leg g assembly with threaded studs A to the main body .


3. Fix B and C to the main body as shown.


4. Assemble the left three legs to main body with the same procedure as step 2 and step 3.


5. Place table top upside down onto a clean flat surface. Screw threaded studs A into the holes in the table top .


6. Assemble main body /legs into the table top


7. Screw the fixings B and C to the holes on the legs as shown.


8. Use spanner D to tighten all fixings fully.
9. Use plastic caps E to cover the fixings holes in the legs and tops.


Specifications

2.0CH Bluetooth Table Speaker
Bluetooth version: 4.2
Bluetooth transmit distance: Up to 10m
Bluetooth frequency: 2.402-2.480GHz
Drive units: 2.75" 3Ω 12W x 4pcs, Φ31mm 8Ω 20W x 2pcs
RMS: 30W (15W*2)
Frequency range: 90 Hz-18K Hz
S/N: > 75dB
Separation ratio: > 35dB
Working voltage: DC 16V 3A
USB Charging port: 5V 2.1A and 5V 1A
Wireless Charging: 5W (5V 1A)
Power Supply: AC adapter
Input: AC 100-240V ~ 50/60Hz 2A

Function

Bluetooth
Hands free
Aux In
USB charger function
Wireless charger function

Description of part

1. POWER / TWS
2. PLAY / PAUSE / PHONE
3. VOLUME-
4. VOLUME+
5. MIC
6. LED
7. USB PORTS: 5V 2.1A/ 5V 1A
8. CHARGING LED LIGHT
9. DC IN
10. AUX
11. RESET
12. WIRELESS CHARGING DOCK (Optional)

Voice Reminding

1. POWER ON: Connect the power supply (voice prompt when the speakerturns on).
2. Bluetooth: Bluetooth mode
3. POWER OFF: Shut off the power supply (voice prompt when the speakerturns off).
4. Bluetooth, waiting for connection: Pairing (enter Bluetooth mode / AUX, and back to Bluetooth mode).
5. Bluetooth is connected: Pairing successfully, back to Bluetooth Modesuccessfully again.
6. Bluetooth Disconnected, waiting for connection: switch off the connection with the paired mobile phone or other device, long press the [Play/Pause/Phone] to disconnect Bluetooth.
7. Maximum volume: Maximum volume level
8. Low Battery: The built-in battery need to be charged.

Power On/Off

1. Long press [POWER/TWS] button, you can hear the audio of "Power On" from the speaker, the speaker will enter Bluetooth mode as default, and give voice of "Bluetooth, waiting for connection" prompt, then smart phone and other devices can be paired with speaker.
2. Long press [POWER/TWS] button, the speaker will be turned off, you can hear the voice of "Power Off" from the speaker prompt.

AUX Auto Switch

Insert the AUX cable into the AUX socket at the rear panel of the speaker, the speaker will switch to AUX mode automatically, the blue and green LED light will be on. The Bluetooth mode will be switched off directly.
After taking out the AUX cable, the Bluetooth mode will be switched on automatically, then you can hear the voice of "Bluetooth, waiting for connection" or "Bluetooth".

Bluetooth Connection and Play

1. When the speaker is in Bluetooth mode, it will automatically switch topairing status, the blue LED light will flash slowly, the Bluetooth device name is "SXBT2500"/"SXBT2502".
2. The speaker will pair with smart phone via Bluetooth, the speaker willsound "Bluetooth is connected"after pairing, the blue LED light will be always on. If failed, the blue LED light will flash slowly.

Call via Bluetooth

1. When a call comes in, the speaker will broadcast the incoming call's phonenumber and with sound of "dudu" or sound "cell phone rings" if connected with Android smart phone. If connected with iPhone, it will broadcast the incoming call's phone number and sound "cell phone rings". Shortly press the [Play/Pause/Phone] button to answer the phone, speaker to the MIC, it will bea clear call. Short press again to hang up, and long press to decline.
2. Double press the [Play/Pause/Phone] button for dialing the phone number of the last call in record.

Volume Control

1. Press【+】button to increase the volume
2. Press【-】button to decrease the volume

USB Charging

When the speaker is powered on, or connected with A/C adapter, the USB ports (2.1A / 1A) can charge iPhone and other Android mobile phone at the same time, when the speaker is turned off, the USB port cannot charge any external devices.
If the speaker is connected via the A/C adaptor, even the speaker is turned off, the USB ports (2.1A / 1A) can charge iPhone and other Android mobile phone at the same time.

Wireless Charging

The charging coil of the wireless charging devices (The mobile phone which can support Qi standard of wireless charging) need to aim at the wireless charging mark which in the middle of the table speaker, when the speaker power on or connected with A/C adapter, you can see the charging mark from your mobile phone or with a sound of "Di" after connecting with the devices for wireless charging.

Low Battery and Charging

1. When the battery capacity is low, the speaker sound "Low Battery" promptto remind the user that the speaker need to be charged; If the user does not charge, the speaker will be automatically powered off.
2. After connecting A/C adapter to DC port on the back of the speaker, the redLED light will be illuminated while charging, the red LED light will turn off when the speaker is fully charged Caution: The LED light is Red for one second after connecting with A/C adapter, then the LED light turn off, it means the built-in battery is full charged, it is normal phenomenon.

TWS Function

TWS feature allows you to link two speakers together. The first table will be the master connected to the Bluetooth device and operate all controls. The second table is a linked speaker giving True Wireless Sound.

1. Turn on both table speakers, double click [POWER/TWS] on one of the two table speakers, both speakers will enter team paring mode, you will hear an acoustic signal, both blue LED indicator of both table speakers will flash rapidly at the same time. After the team paring, the LED indicator of first speaker (Master) will remain flash slowly, the LED of second speaker (Subspeaker) (linked TWS) will be green. After connecting with phone or other Bluetooth devices, the Master speaker LED will be Blue stably, the subspeaker keep stable Green LED.
2. When speakers are team paired successfully, short press [POWER/TWS] of master speaker or sub-speaker to switch Off the team pairing TWS mode.
3. When speakers are team paired TWS mode successfully under Bluetooth, the two speakers can still work as paired speakers by inserting the AUX cable into the AUX socket on the first speaker (Master), the Master speaker will be with green and blue LED light, the sub-speaker with Green LED light. TWS mode will fail if Aux cable is inserted to the Aux socket on the second (linked) sub-speaker.
4. Under TWS status, only the master speaker will with response, and pick up the phone. The second speaker is without response.

Automatic Power Off

After powering on the speaker without Bluetooth connection, or without LINE IN signal, or disconnecting the Bluetooth after 10 minutes, the speaker will power off automatically, the speaker will sound "POWER OFF".
