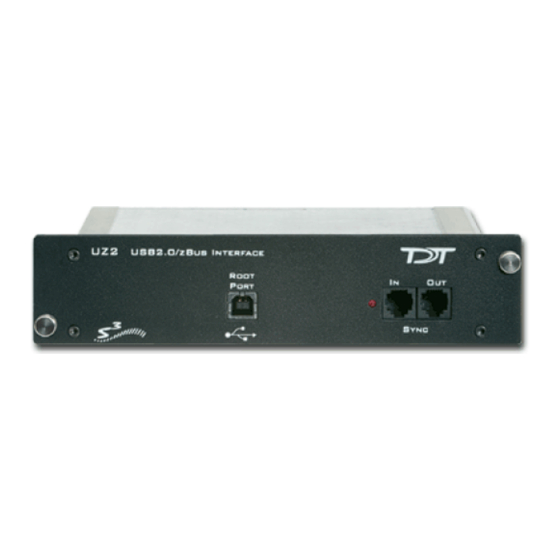

Summary of Contents for Tucker-Davis Technologies UZ2
- Page 1 UZ2 USB 2.0 Interface Hardware Reference Updated 2022-09-20...
- Page 2 UZ2 USB 2.0 Interface | 2 © 2016-2022 Tucker-Davis Technologies, Inc. (TDT). All rights reserved. Tucker-Davis Technologies 11930 Research Circle Alachua, FL 32615 USA Phone: +1.386.462.9622 Fax: +1.386.462.5365 Notices The information contained in this document is provided "as is," and is subject to being changed, without notice.
- Page 3 Table of Contents | 3 Table of Contents UZ2 USB 2.0 Interface Overview Connecting the UZ2 Sync Logical Order of Devices Boot Up Sequence UZ2 Technical Specifications...
- Page 4 Most nonprogrammable devices, such as speaker drivers or signal mixers, do not require an interface. You will need a USB 2.0 port available on the host PC for each UZ2 in a multi-chassis system. We recommend upgrading to an...
- Page 5 UZ2 USB 2.0 Interface | 5 Connecting the UZ2 The UZ2 connects to your computer with standard USB 2.0 A to B cables (provided with each module). Interface drivers are bundled with the TDT Drivers and will be installed when the device is connected to the host computer for the first time.
- Page 6 UZ2 USB 2.0 Interface | 6 Logical Order of Devices The logical order of devices is determined each time the zBus chassis are powered on. You can verify the current logical order using the zBUSMon utility. Boot Up Sequence The boot up sequence for the USB 2.0 interface is driven from the PC and follows the communication protocol described below.
