Summary of Contents for IBS ECL150

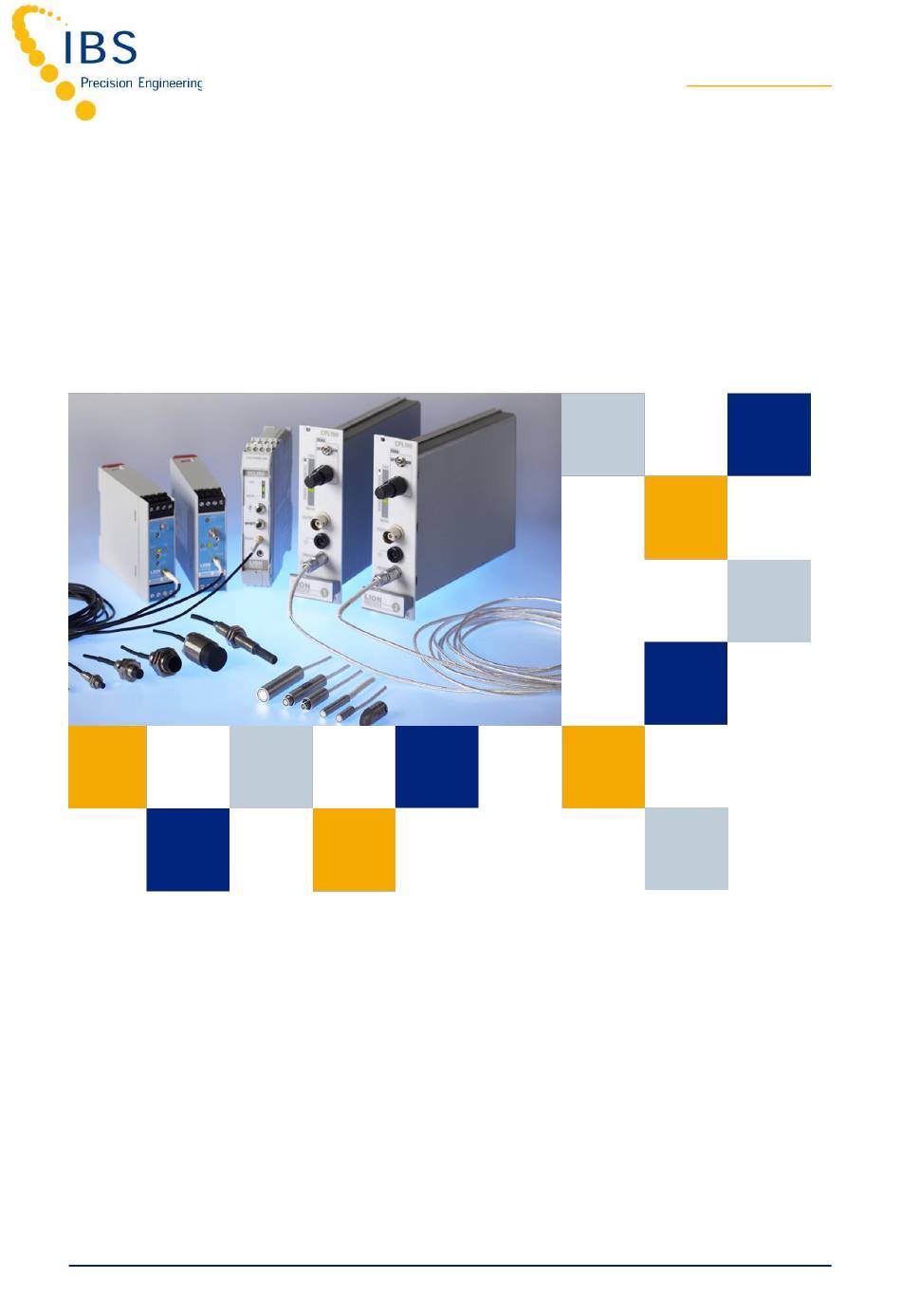

- Page 1 User Manual | P1 ECL150 www.ibspe.com...
-
Page 2: Table Of Contents
ECL150 AND ECL150E ESCRIPTION QUICK START INSTRUCTIONS LED RANGE INDICATOR ANALOGUE OUTPUT SIGNALS PROBE MOUNTING EXTENSION CABLES UNGROUNDED TARGETS MULTIPLE SYSTEMS SETTING BANDWIDTH CONNECTING TO THE ECL150 12.1 S ONNECTIONS OUTPUT 1-4 CONNECTIONS OUTPUT 5-8 CONNECTIONS SPECIFICATIONS MECHANICAL DETAIL POWER SUPPLY www.ibspe.com... -
Page 3: Approvals And Safety Considerations
Use of the equipment in any other manner may impair the safety and EMI protections of the equipment. Helpful Technical Support Documents Online The IBS Precision Engineering’s website has a large selection of technical documents (TechNotes and Application Notes) in the Technical Library. These documents provide detailed descriptions of the operation and use of the products of IBS Precision Engineering. -
Page 4: Ecl150 And Ecl150E
ECL150 and ECL150e The ECL150e is identical to the ECL150 except that resolution is limited to a best case of 0.3 μm. For this reason, the ECL150e does not require an export license. For details on export restrictions, please refer to www.lionprecision.com/exports-and-the-ear99-classification/... -
Page 5: Analogue Output Signals
Sensors which are calibrated with a probe extension cable must be operated with the extension cable installed to meet specifications. Operating without the extension cable will result in inaccurate measurements. IBS Precision Engineering • Eindhoven • NL • +31 40 290 1270... -
Page 6: Ungrounded Targets
Multiple systems All channels within the ECL150 are synchronized and can be used on the same target. When multiple ECL150s are used with the same target, the systems must be synchronized for best performance. An interconnecting cable connects between the Sync In and Sync Out connectors. -
Page 7: Connecting To The Ecl150
2022-05-31 Connecting to the ECL150 The ECL150 is shipped with all required connecting cables. Power and Output connecting cables are terminated with an M12 device connector at one end and color-coded wires at the other end. Device Connector: 4-Pin, M12, Male Power Cable PN: 6203-0400... -
Page 8: Output 1-4 Connections
User Manual | P8 Last update: 2022-05-31 Output 1-4 connections Device Connector: 8-Pin, M12, Female Output Cable PN: 6203-0810 Wire Color Connection White Ch1 Out Brown Ground Green Ch2 Out Yellow Ground grey Ch3 Out Pink Ground Blue Ch4 Out Ground Output 5-8 Connections Device Connector: 8-Pin, M12, Female Output Cable PN: 6203-0810... -
Page 9: Specifications
0.2 VDC. ³The ECL150e is identical to the ECL150 except that resolution is limited to a best case of 0.3 μm. For this reason, the ECL150e does not require an export license. For details on export restrictions, please refer to www.lionprecision.com/exports-and-the-ear99-classification/... - Page 10 User Manual | P10 Last update: 2022-05-31 Parameter Specification Notes U3 Probe ±0.04% F.S./°C U5 Probe ±0.1% F.S./°C U8 Probe ±0.04% F.S./°C U12 Probe Nonferrous U18 Probe U25 Probe ±0.1% F.S./°C U38 Probe Temperature U50 Probe Over 15°C To 50°C Coefficient U3 Probe ±0.08% F.S./°C...
-
Page 11: Mechanical Detail
User Manual | P11 Last update: 2022-05-31 Mechanical detail Power supply Power In: 100-240 VAC 50-60 Hz Power Out: 12 VDC @ 1.5 A (18 W) CE and UL registered IBS Precision Engineering • Eindhoven • NL • +31 40 290 1270...
