EE Lighting AFL-180LED-50K Installation Instructions

Lighting
IMPORTANT
READ CAREFULLY BEFORE INSTALLING THE FIXTURE. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
This product MUST be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product.
Proper grounding is required for safety. This product shall be mounted above 4 feet (1.2meter) high and at least 18" (46 centimeter) below any overhang or other
structure; this fixture SHALL NOT BE recessed.
User should prepare necessary accessories and spare parts (not provided) including junction box and screws.
WARNING
RISK OF ELECTRIC SHOCK.
Make sure power supply is OFF before installing or maintaining fixture. No user serviceable parts inside.
Never perform maintenance or cleaning while fixture is energized. Disconnect power and allow fixture to cool before maintaining.
MOUNTING
This product is available in SLIP FITTER and TRUNNION as mounting options.
Note: Slip fitter is required when using wall mount adaptor or round pole adaptor.
Follow the specific bracket installation instruction accordingly.

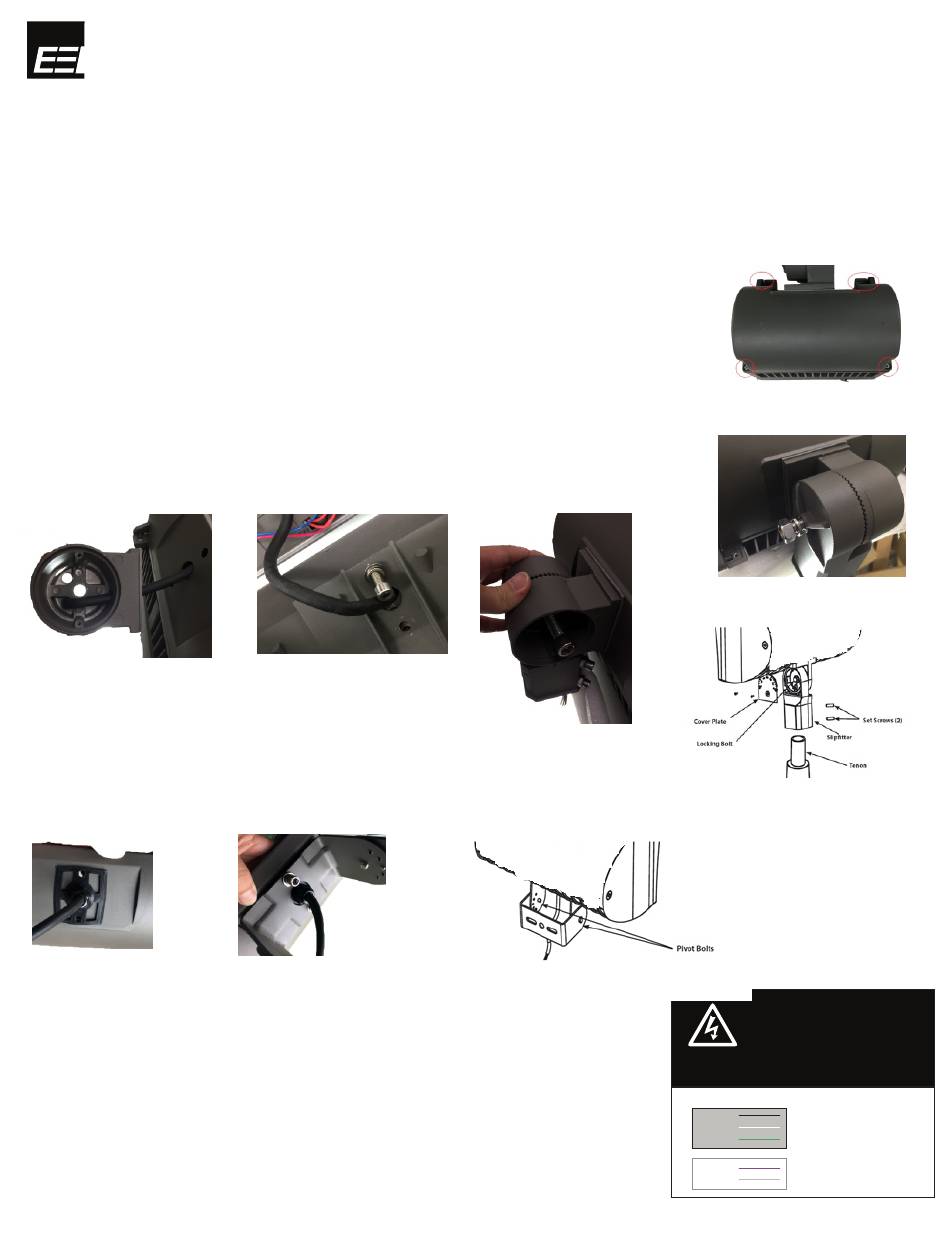

Open the fixture by unscrewing the 4 screws shown in Fig.1
Slip Fitter
1. Separate the slip fitter into pieces by loosening the screw, bolts and nuts. Run the input cord through the
gasket and the upper half of slip fitter (shown in Fig 2). Assemble slip fitter and gasket onto housing using 2 bolts
and washers (shown in Fig 3)
2. Run the wire through the lower half of the slip fitter and assemble it onto the upper half using a bolt,
nuts and washers. (shown in Fig 4 and Fig 5)
3. Install the cover plate back to the slip-fitter using screws. Gasket should be applied to seal it properly.
4. Slip lower half of the slip fitter over tenon and securely tighten two allen head set screws. (shown in Fig 6)
5. The slip fitter is designed to be installed on a 2-3/8" o.d. heavy wall pipe or tenon.
Fig 2.
Trunnion
1. Run the input cord through the gasket and the cable gland, then tighten
the cable gland firmly. (shown in Fig 7)
2, Assemble the trunnion mount bracket onto the fixture using 2 bolts, nuts
and washers (shown in Fig 8)
The trunnion mount bracket offers five different positions. There are three position holes in
the outer yoke and five positioning holes in the inner yoke.
To adjust it, loosen the positioning screws and trunnion bolts, then rotate trunnion to the
desired angle. Reinsert positioning screws and tighten them. (shown in Fig 9)
Fig 7.
REASSEMBLY
Use screw to tighten and close the fixture.
Make sure all gaskets must be seated properly and all bolts and screws are inserted and tightened firmly.
WIRING
1.Wire input end of the LED driver to supply wires according to wiring section.
Wire connections must be insulated and waterproof.
2.Connect the BLACK/BROWN lead to LINE (+) supply lead.
3.Connect the WHITE/BLUE lead to NEUTRAL/COMMON (-) supply lead.
4.Connect the GREEN lead to GROUND supply lead.
5.If any, connect PURPLE/BLUE to 0-10V SIGNAL supply lead and
GREY/WHITE to 0-10V NEUTRAL/REFERENCE supply lead.
INSTALLATION INSTRUCTIONS for LED Architectural Flood Light
AFL-180LED-50K/40K
Fig 3.
Fig 8.
Energy Efficient Lighting Ltd. | www.eelighting.ca | Tel: 1-855-415-8878
AFL-90LED-50K/40K
Fig 4.
Fig 9.
Fig 1.
Fig 5.
Fig 6.
· DISCONNECT POWER BEFORE INSULATING
OR SERVICING
· ALL ELECTRICAL WORK SHOULD BE
COMPLETED BY QUALIFIED PERSONNEL
CAUTION
AND MEET NATIONAL (NEC), REGIONAL AND
LOCAL ELECTRICAL CODES.
RISK OF
ELECTRIC SHOCK
WIRING DIAGRAM
BLACK/BROWN = HOT/LINE
ELECTRICAL
WHITE/BLUE- NEUTRAL/COMMON
SYSTEM
GREEN/YELLOW = GROUND
PURPLE/BLUE=0-10V SIGNAL
0-10V DIMMING
GREY/WHITE = NEUTRAL/REFERENCE
SYSTEM (IF ANY)
EEL18W36
