Summary of Contents for IMES TCS-01CA-PMI

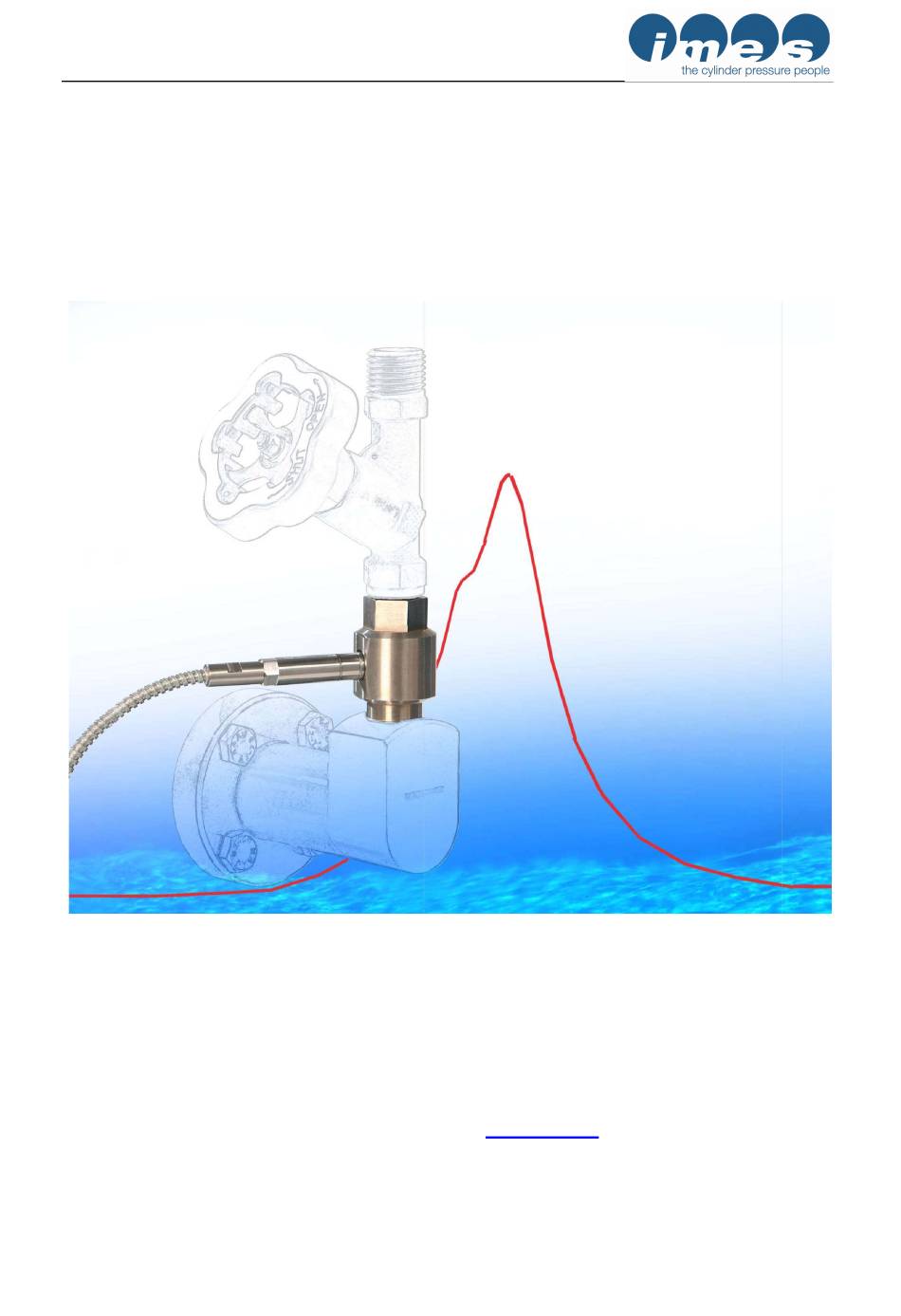

- Page 1 Operation Manual TCS-01CA-PMI Sensor 12.02.2021 Original operating instruction TCS-01CA-PMI incl connecting cable and adaptor IMES Gmbh Phone: +49 8341 9661730 Dr.-Herbert-Kittel-Str.2 Fax: + 49 8341 9667318 87600 Kaufbeuren e-mail:info@imes.de Germany www.imes.de Page 1 of 21...
-
Page 2: Table Of Contents
Pressure sensor with adaptor and indicator valve ______________________________ 10 Disconnection of existing ABB sensor ________________________________________ 11 Mounting of IMES adaptor_________________________________________________ 11 Mounting of indicator cock on IMES adaptor _________________________________ 12 Mounting TCS-01CA-PMI sensor on adaptor _________________________________ 12 Fixing connection cable to SCU and female connector __________________________ 13... -
Page 3: Important Information
They may only be used by the persons authorised to this effect. They may only be given to third parties with the written consent of IMES GmbH. All documents are protected under copyright law. Dissemination and reproduction of documents or parts of documents as well as the utilisation and communication of their contents are prohibited, unless expressly permitted. -
Page 4: Address Of The Manufacturer
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 A warning notice of this risk level signals a potentially dangerous situation. If the dangerous situation is not prevented, this could lead to damage to property. Follow the instructions in this warning notice to prevent damage to property. -
Page 5: Obligations Of The Operator
1.5 Obligations of the operator The TCS-01CA-PMI sensor may be a source of danger if used in an improper manner or not in proper condition. The operator is obliged to operate the TCS-01CA-PMI sensor only in proper condition. Hazard areas arising between IMES devices and customer equipment are to be secured by the operator. -
Page 6: Safety Notes
• Adjustment and/or maintenance work is to be carried out by authorised professionals. • Before using the TCS-01CA-PMI sensor, check it for defects and deficiencies visible on the outside. Immediately notify any changes (including changes in operating behaviour) to the competent staff/person. If necessary, immediately put the device out of service and lock/tag it out! •... -
Page 7: Scope Of Delivery
Take action to mitigate the damage that has occurred and prevent further damage. Packaging Unless an agreement was made with IMES GmbH regarding the return of the packaging material, the packaging material remains with the customer. The most commonly used packaging materials cardboard. -
Page 8: Technical Data Tcs-01Ca-Pmi Sensor
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 Technical data TCS-01CA-PMI sensor Me a s ur i ng ra n g e p r ess u r e 0.. .2 50 b ar Ove r pr es su re s ta t i c... -
Page 9: Drawing
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 4.2 Drawing Fig 1: Drawing TCS-01CA-PMI sensor incl. Autotuning connector Soft iron sealings Fig.2: Drawing of adaptor Page 9 of 21... -
Page 10: Installation Instructions Of Tcs-01Ca-Pmi Sensor
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 Installation instructions of TCS-01CA-PMI sensor Apart from standard equipment, the following tools and material are required for installing the TCS-01CA-PMI sensor and adaptor: • A 27 mm open-ended spanner for the adaptor and indicator valve •... -
Page 11: Disconnection Of Existing Abb Sensor
5.3 Mounting of IMES adaptor Install adaptor IMES adaptor with soft iron sealing on existing indicator flange. Use a 27 mm open-ended spanner. Tightening torque 100 Nm. Use copper past or equivalent on the adaptor thread and iron soft sealing. -
Page 12: Mounting Of Indicator Cock On Imes Adaptor
Fig.7: TCS-01CA-PMI sensor and indicator installed on adaptor When mounting (or dismounting) the TCS-01CA-PMI sensor on the adapter, the cable between sensor head and SCU must rotate along with it or else the cable will get damaged by the forced twist. This means that the electronic unit and cable must be loosened when fastening/unfastening the TCS-01CA-PMI sensor. -
Page 13: Fixing Connection Cable To Scu And Female Connector
MAN PMI system Fig.8: Connecting cable (3m) The SCU of TCS-01CA-PMI sensor should be connected via ITT Canon connector of connection cable (3m). Fig.9: SCU connected to connetion cable (3m) The Harting connector should be locked to existing female connector Fig.10: Harting connector and female connector... -
Page 14: Fixing Protection Cover
The Harting connector is locked to female connector. Fig.11: Harting connector to female connector locked. 5.7 Fixing protection cover Please mount protection cover on SCU of TCS-01CA-PMI sensor to reduce vibration level. The SCU of TCS-01CA-PMI sensor is placed in protection cover and connected to sensor connecting cable (3m) which is mounted on MAN PMI system. -
Page 15: Advice Actions
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 Advice actions 6.1 Use of indicator valve Blowing through the indicator valve for more than one engine revolution or a leaking indicator valve may lead to faulty measurements, reduced lifetime of the sensor and even sensor failure. -
Page 16: Drawings
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 Drawings 7.1 Overview sensor components (IW-9100) Page 16 of 21... -
Page 17: Tcs-01Ca Sensor (Iw-6105)
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 7.1 TCS-01CA sensor (IW-6105) Page 17 of 21... -
Page 18: Man Autotuning Connector (Iw-4116)
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 7.2 MAN Autotuning connector (IW-4116) Page 18 of 21... -
Page 19: Adaptor (Iw-8005)
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 7.3 Adaptor (IW-8005) Page 19 of 21... -
Page 20: Protection Cover (Iw-6211)
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 7.1 Protection cover (IW-6211) Page 20 of 21... -
Page 21: Eu Declaration Of Conformity
Operation Manual TCS-01CA-PMI Sensor 12.02.2021 EU Declaration of Conformity In accordance with EN ISO 17050-1:2010 Manufacturer: IMES GmbH Dr.-Herbert-Kittel-Str.2 D- 87600 Kaufbeuern Name: Two-stroke combustion pressure sensor Type: TCS-01CA-PMI sensor The object of the declaration described above is in conformity with the relevant EU...
