- Page 1 BCL1501 Expansion Board Instruction User Manual BCL1501 Installation Guide Shanghai Friendess Co., Ltd www.friendess.com Ver 1.0...

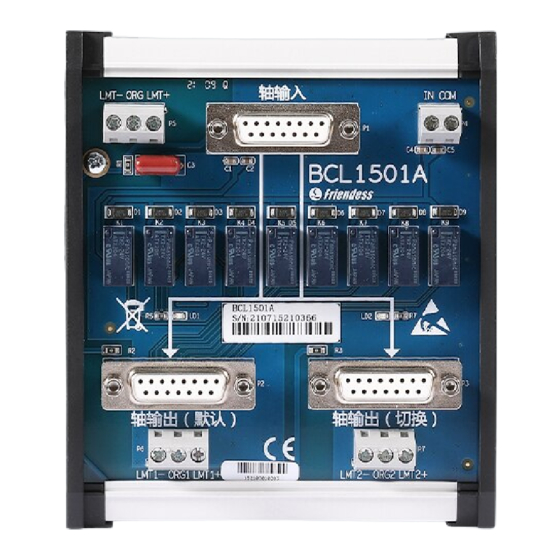

- Page 2 BCL1501 Expansion Board Instruction BCL1501 Expansion Board Instruction 1 Product Description BCL1501 expansion board has 1501A and 1501B two models. BCL1501A Dimension BCL1501B Dimension BCL1501A served to switch controlled motor axes and limit signals along with. It has three motor axes ports, three limit input ports and one control port. Within among three motor axes ports, one connected with the servo control port on main I/O board and the other two connected with servo driver.
- Page 3 BCL1501 Expansion Board Instruction axis switch via C15-1.5 cable connected with servo driver. LMT-(negative limit), LMT+(positive limit), ORG(origin) connect with +/- limit and origin in main I/O board. LMT1-, LMT2-, LMT1+, LMT2+ and ORG connect with limit and origin signal input of each axis accordingly.
- Page 4 BCL1501 Expansion Board Instruction BCL1501B Installation and Operation BCL1501B connected with servo axis port in main I/O terminal board by C15-0.6 cable. Motor axis control ports connect with servo driver by C15-1.5 cable. BCL1501B received signal send to two servo control ports simultaneously. Output signal from two axes ports is same, but controller only receive encoder feedback of motor axis connected in axis output1.
