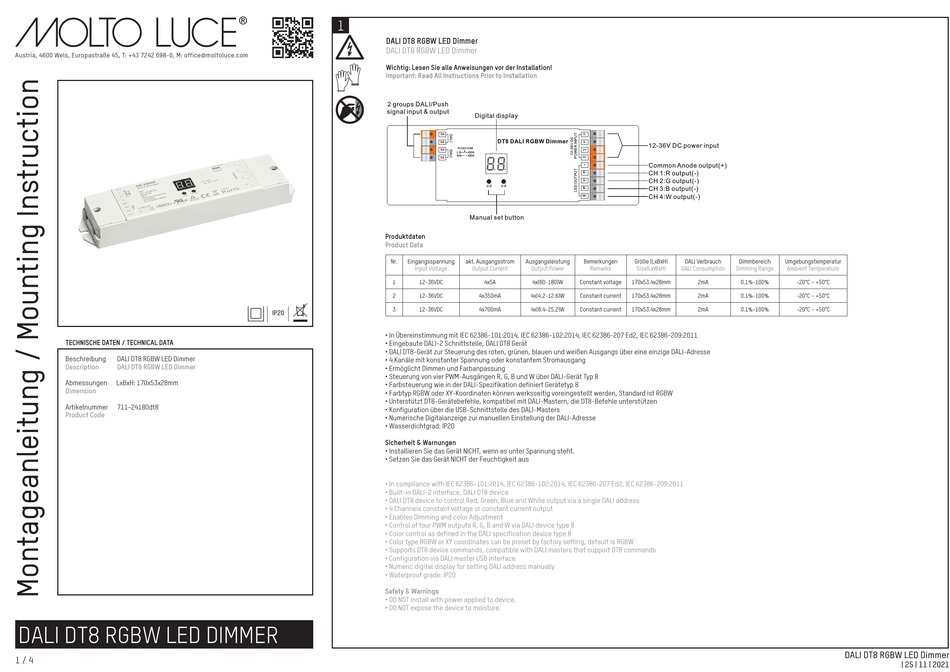

MOLTO LUCE DALI DT8 Mounting Instruction

Austria, 4600 Wels, Europastraße 45, T: +43 7242 698-0, M: office
TECHNISCHE DATEN / TECHNICAL DATA
Beschreibung DALI DT8 RGBW LED Dimmer
Description DALI DT8 RGBW LED Dimmer
Abmessungen LxBxH: 170x53x28mm
Dimension
Artikelnummer 711-24180dt8
Product Code
DALI DT8 RGBW LED DIMMER
1 / 4
1
moltoluce.com
@
IP20
DALI DT8 RGBW LED Dimmer
2
DALI DT8 RGBW LED Dimmer
DALI DT8 RGBW LED Dimmer
Wichtig: Lesen Sie alle Anweisungen vor der Installation!

Important: Read All Instructions Prior to Installation

Important: Read All Instructions Prior to Installation

Function introduction

2 groups DALI/Push
signal input & output
Digital display
DA
DT8 DALI RGBW Dimmer
DA
PUSH DIM
DA
L DA
N DA
DA
0-6 0-9
Manual set button

Product Data

Produktdaten
Input Output Output
No. Remarks Size(LxWxH)
Product Data
Voltage Current Power
1 12-36VDC 4x5A 4x(60-180)W Constant voltage 170x53.4x28mm
Nr. Eingangsspannung akt. Ausgangsstrom Ausgangsleistung
2 12-36VDC Input Voltage 4x350mA Output Current 4x(4.2-12.6)W Constant current Output Power 170x53.4x28mm
3 12-36VDC 4x700mA 4x(8.4-25.2)W Constant current 170x53.4x28mm
1 12-36VDC 4x5A 4x(60-180)W
2 12-36VDC 4x350mA 4x(4.2-12.6)W
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
3 12-36VDC 4x700mA 4x(8.4-25.2)W
• Built-in DALI-2 interface, DALI DT8 device
• DALI DT8 device to control Red, Green, Blue and White output via a single DALI address
• In Übereinstimmung mit IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011 • 4 Channels constant voltage or constant current output
• Eingebaute DALI-2 Schnittstelle, DALI DT8 Gerät
• Enables Dimming and color Adjustment
• DALI DT8-Gerät zur Steuerung des roten, grünen, blauen und weißen Ausgangs über eine einzige DALI-Adresse
• Control of four PWM outputs R, G, B and W via DALI device type 8
• 4 Kanäle mit konstanter Spannung oder konstantem Stromausgang
• Color control as defined in the DALI specification device type 8
• Ermöglicht Dimmen und Farbanpassung
• Color type RGBW or XY coordinates can be preset by factory setting, default is RGBW
• Steuerung von vier PWM-Ausgängen R, G, B und W über DALI-Gerät Typ 8
• Farbsteuerung wie in der DALI-Spezifikation definiert Gerätetyp 8
• Supports DT8 device commands, compatible with DALI masters that support DT8 commands
• Farbtyp RGBW oder XY-Koordinaten können werksseitig voreingestellt werden, Standard ist RGBW
• Configuration via DALI master USB interface
• Unterstützt DT8-Gerätebefehle, kompatibel mit DALI-Mastern, die DT8-Befehle unterstützen
• Numeric digital display for setting DALI address manually
• Konfiguration über die USB-Schnittstelle des DALI-Masters
• Waterproof grade: IP20
• Numerische Digitalanzeige zur manuellen Einstellung der DALI-Adresse
• Wasserdichtgrad: IP20
Safety & Warnings
• DO NOT install with power applied to device.
Sicherheit & Warnungen
• DO NOT expose the device to moisture.
• Installieren Sie das Gerät NICHT, wenn es unter Spannung steht.
• Setzen Sie das Gerät NICHT der Feuchtigkeit aus
Operation
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device 1. Setting Dali Address
• DALI DT8 device to control Red, Green, Blue and White output via a single DALI address
• 4 Channels constant voltage or constant current output
1.1. Press and hold down any of the two buttons until numeric digital display flashes, then release the button.
• Enables Dimming and color Adjustment
1.2. Click any of the two buttons once to select a digit, click again to change the digit until the desired DALI
• Control of four PWM outputs R, G, B and W via DALI device type 8
• Color control as defined in the DALI specification device type 8
• Color type RGBW or XY coordinates can be preset by factory setting, default is RGBW
• Supports DT8 device commands, compatible with DALI masters that support DT8 commands
• Configuration via DALI master USB interface
• Numeric digital display for setting DALI address manually
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
70040022
V-
V-
12-36V DC power input
V+
V+
Common Anode output(+)
+
CH 1:R output(-)
R-
CH 2 :G output (-)
G-
CH 3 :B output (-)
B-
CH 4 :W output (-)
W-
DALI Dimming Ambient
Consumption Range Temperature
2mA 0.1%-100% -20℃ ~ +50℃
Bemerkungen Größe (LxBxH) DALI Verbrauch Dimmbereich
Remarks 2mA Size(LxWxH) 0.1%-100% DALI Consumption -20℃ ~ +50℃ Dimming Range
2mA 0.1%-100% -20℃ ~ +50℃
Constant voltage 170x53.4x28mm 2mA 0.1%-100%
Constant current 170x53.4x28mm 2mA 0.1%-100%
Constant current 170x53.4x28mm 2mA 0.1%-100%
address appears. Click first button to set "tens" position and sec
can be set from 00~63.
1.3. Then press and hold down any of the 2 buttons until the num
setting.
Note: DALI address can be manually assigned from 00-63-FF
assigned for the dimmer, and the display shows . Settin
dimmer to factory defaults.
2. Once an address is selected, all four channels' address w
addressed to 22 on the display then CH1, CH2, CH3, CH4 will
3. Dali Address Assigned By Dali Masters
DALI address can also be assigned by DALI Master controller au
compatible DALI Masters for specific operations.
Note: The digital display will show When the DALI mas
4. Push Dimmer Mode
While connected with a AC push switch, the digital display will sh
operations under Push Dimmer Mode are as follows:
4.1. Click the button to switch ON/OFF
4.2. Press and hold down the button to increase or decrease ligh
repeat the operation to adjust light intensity to opposite direction
4.2. Memory function after power off or power failure enables the
off while power on again.
Umgebungstemperatur
Ambient Temperature
Wiring Diagram
-20°C ~ +50°C
-20°C ~ +50°C
1. With DALI Bus
-20°C ~ +50°C
L
12V/24V/36V
N
CV PSU
G
AC Power
50/60Hz
DALI Master
DA V-
DT8 DALI RGBW Dimmer
DA V-
DA PUSH DIM V+
L DA
N DA
DA V+
+
R-
G-
0-6 0-9
B-
W-
DA V-
DT8 DALI RGBW Dimmer
DA V-
DA PUSH DIM V+
L DA
N DA
DA V+
+
R-
G-
0-6 0-9
B-
W-
DALI DT8 RGBW LED Dimmer
