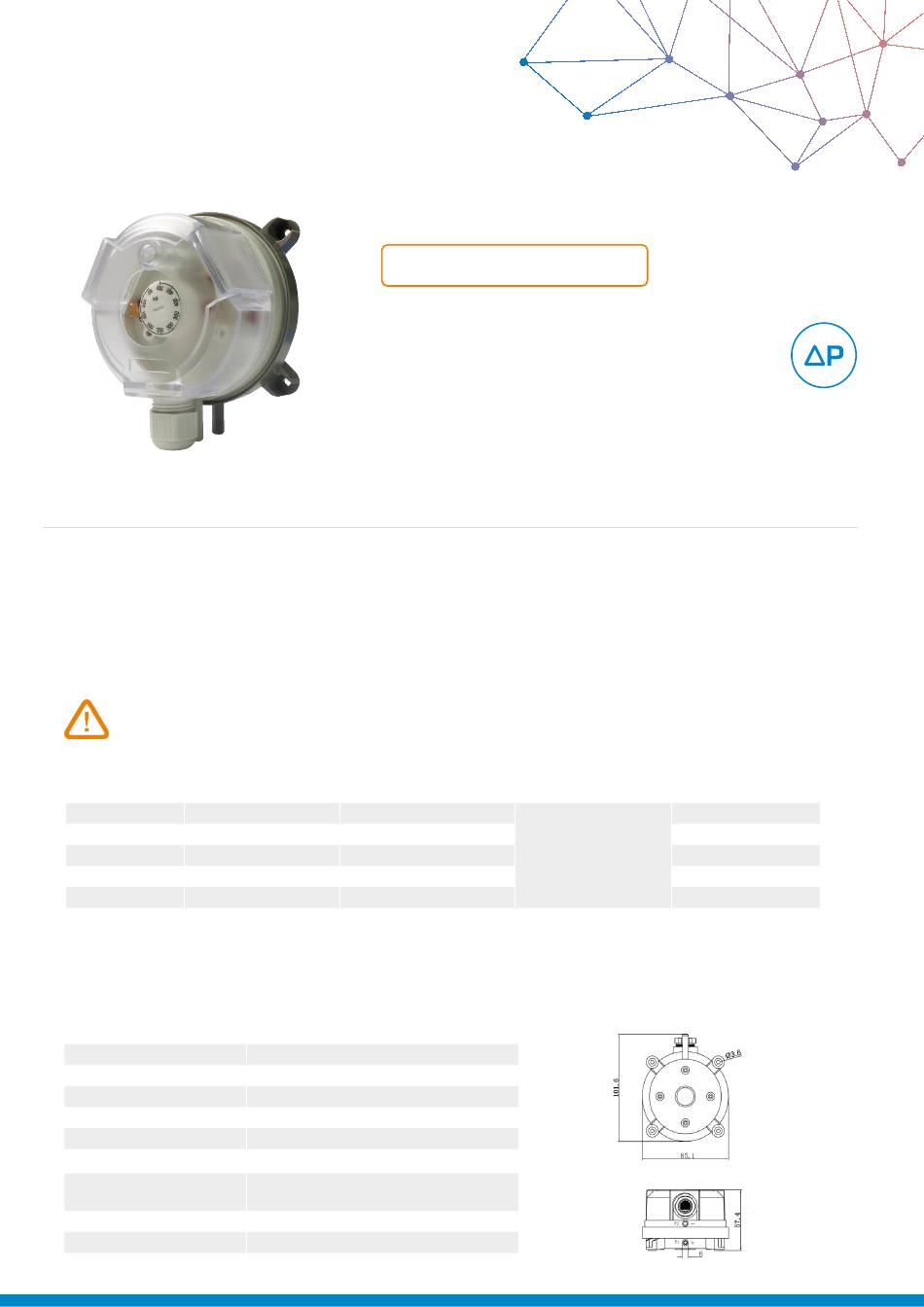

Presentation

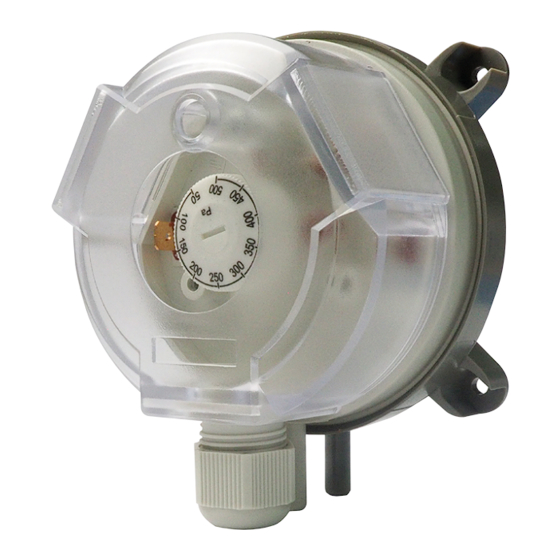

The differential air pressure switches with membrane are used for the control of air treatment system installations. They allow, without
supply, to establish a switching contact during a cut-off pressure exceeding. They can be mounted in parallel with a manometer.
They allow to control systems working under or over pressure, fans or filter.
Description
Before the commissioning of the pressure switch, please read carefully this user manual.
Model
Setting range
Si-DPMS-1
20-200 Pa
Si-DPMS-2
50-500 Pa
Si-DPMS-3
200-1000 Pa
Si-DPMS-4
500-2500 Pa
Si-DPMS-5
1000-5000 Pa
* Pressure values referred to vertical installation. If the device is installed horizontally, these values increase by 20 Pa.
The differential pressure switches have a round shape and two connections of Ø 6.2 mm (for hoses, of Ø 5 x 8 mm for example).
They are supplied with the needed installation accessories.
General features
Media
Maximum pressure
Voltage
Mounting
Protection
Operating temperature
Relay type
Electrical rating
Contact terminals
Connection
Certification
SI-DPMS
Differential Pressure Switches
*
Switching Differential
10 Pa
20 Pa
100 Pa
150 Pa
250 Pa
Air, non-combustible and non-aggressive gases
10 kPa
250 V / 1.5 A (0.4 A)
Vertical
IP54 (with cover), IP00 (without cover)
-40 °C to 85 °C
SPDT
Resistance: initial: < 50 mΩ
Current: 1.5 A (0.4 A) / 250 V
6.3 mm x 0.8 mm blade or screw terminal
Ø 6.0 mm for tube connection
CE
USER MANUAL
Maximum
pressure
10 000 Pa
Dimensions (mm)
Tolerances
≤ ±15 %
≤
±15 %
≤
±15 %
≤
±15 %
≤
±15 %
Advertisement
Table of Contents
Summary of Contents for sauermann SI-DPMS
- Page 1 USER MANUAL SI-DPMS Differential Pressure Switches Presentation The differential air pressure switches with membrane are used for the control of air treatment system installations. They allow, without supply, to establish a switching contact during a cut-off pressure exceeding. They can be mounted in parallel with a manometer.
- Page 2 • Pressure connection: Sauermann offers a wide range on pressure connectors that can be used for installing the differential pressure switches Si-DPMS: - Quick coupler, Ref. KR 483. - Connector for double-skinned wall, Ref. DP 447 and DP 339.
- Page 3 Switching point settings • The dial allows to set the switching point. To settle the superior switching point (higher pressure), rotate the dial (A) in clockwise direction. Let slowly the pressure increase, (watch the max. pressure). Set the required threshold value pressure. Control the lower or upper switching points several times, by increasing or decreasing the pressure.
- Page 4 Distributed by Sauermann ZA Bernard Moulinet - Rue Koufra 24700 Montpon-Ménestérol - France T: +33 (0)5.53.80.85.00 - www.sauermanngroup.com...
