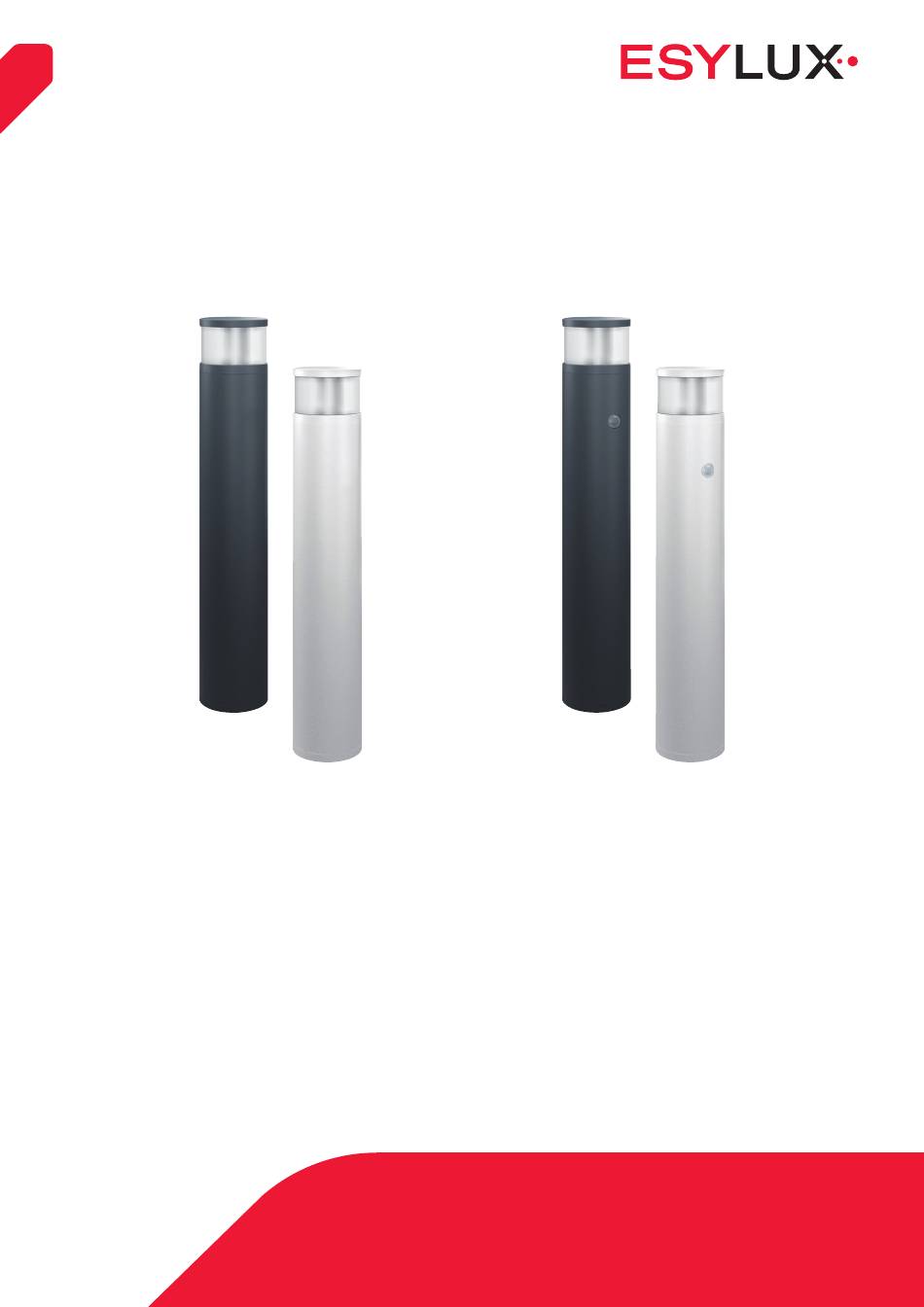

  • Page 1 ALVA series Bollard light Detailed operating instructions...
  • Page 2 An der Strusbek 40, 22926 Ahrensburg, Germany Details may be subject to change. Copying is only permitted with the written consent of ESYLUX GmbH. This includes transla- tion into other languages and reuse of content for other purposes. 1 / 30...

  • Page 3: Table Of Contents

    Table of contents Table of contents 1 Information about the document ................4 1.1 Manufacturer address ................4 1.2 Liability and damages ................4 1.3 Product identification ................4 1.4 Highlighted information within the text ..........5 Warnings ..................... 6 2 Basic safety information ..................7 2.1 Intended use ..................
  • Page 4 Table of contents 7 Technical information .................... 29 8 EC Declaration of Conformity .................. 30 9 Disposal ....................... 30 10 ESYLUX manufacturer's guarantee ................30 3 / 30...

  • Page 5: Information About The Document

    These operating instructions contain detailed information about device functions and the processes for commissioning and assembling the speci- fied devices. This document is also available online at www.esylux.com and can be print- ed in A4 format. Please read the operating instructions through in full and note all safety information and warnings.

  • Page 6: Highlighted Information Within The Text

    Information about the document Item number Item designation EL10820236 BL-ALV 20 018 840 WHT DALI EL10820243 BL-ALV 20 018 830 ANO DALI EL10820250 BL-ALV 20 018 830 WHO DALI EL10820267 BL-ALV 20 018 840 ANO DALI EL10820274 BL-ALV 20 018 840 WHO DALI EL10820403 BL-ALV 20 018 830 ANT A DALI EL10820410...

  • Page 7: Warnings

    Information about the document 1.5 Warnings Warnings are listed at the start of the relevant chapter if a hazardous situa- tion is likely to occur. Warnings with the signal word "DANGER" refer to scenarios that could cause personal injury. The signal word "CAUTION" indicates potential damage to property.

  • Page 8: Basic Safety Information

    Basic safety information 2.1 Intended use The ESYLUX ALVA BL series may only be used for the following purposes: • For assembly outdoors by means of screwing onto a base • The light is designed to illuminate pathways, in gardens or drive-...

  • Page 9: Product Description

    Incorrect connection will destroy the DALI electronic ballast! ¾ Note the DALI specifications (IEC 62386) Product description The ESYLUX ALVA BL series is intended for outdoor use as a bollard light. How it works The glare-free, downward-pointing light (in the case of variants with a transparent diffusor) with a 360°...
  • Page 10 Product description Function Benefit Switching the lighting The light is switched on and off via the DALI inter- on/off face. The brightness of the lighting is dimmed via the Dim lighting DALI interface. ALVA BL light with DALI interface and motion detector BL-ALV xx xxx A DALI and BL-ALV...

  • Page 11: Mechanical Set-Up

    Product description 3.1 Mechanical set-up Dimensions 90 mm 940 mm Ø 170 mm Components Bollard light with DALI interface Mounting plate 2. Light 10 / 30...
  • Page 12 Product description Bollard light with DALI interface and motion detector Mounting plate 2. Light 3. Lens mask 4. Motion detectors Motion detector: Field of detection and range 0 ,8 0 m • The field of detection spans approx. 140° • The detection range in each direction is approx. 3 m depending on the direction of movement 11 / 30...

  • Page 13: Light Distribution Curve

    Type plate fea- IP 54 BL-ALV 20 018 830 ANO tures Art.-Nr. EL10820045 230 V ~ 18 W 3000 K GmbH An der Strusbek 40 = 40 °C 22926 Ahrensburg/Germany www.esylux.com AG00836701 Designation 2. Item number 3. Technical information 12 / 30...

  • Page 14: Installation And Connection

    Installation and connection Installation and connection Proceed as follows to secure the mounting plate: ¾ Attach the light to the mounting plate and screw the mounting plate Floor mounting into place using the enclosed safety screws. ¾ Open the junction box and connect the mains cable and the light in accordance with the wiring diagram.
  • Page 15 Installation and connection ALVA BL light without motion detector BL-ALV xx xxx 8x0 xxx Proceed as follows to connect the light: ¾ Connect the light as outlined in the wiring diagram. 1. Earth conductor 2. Neutral conductor 3. External conductor, 230 V ~ Connection Wiring diagram terminals...
  • Page 16 Installation and connection Proceed as follows to connect the light: ¾ Connect the light as outlined in the wiring diagram. 1. Earth conductor 2. Neutral conductor 3. External conductor 4. DALI interface Connection Wiring diagram terminals A maximum of 40 pollard lights can be looped through. DA DA DA CAUTION! Do not reverse the polarity of the DALI connections!

  • Page 17: Warm-Up Phase

    Installation and connection Proceed as follows to attach the light to the mounting plate: ¾ Position the light on the mounting plate so that the arrows are pointing towards one another. Then turn the light in a clockwise direction and secure the lights using ¾...

  • Page 18: Factory Settings

    Installation and connection 4.2 Factory settings With motion The factory settings for the light with integrated motion detector are as detector follows: • Brightness target value: 50 lux • Lighting switch-off delay time: 5 minutes • Operating mode: fully automatic •...

  • Page 19: Settings

    Settings Settings There are various options available for configuring and controlling the bol- lard light. 5.1 ALVA BL 5.1.1 Switching the lighting on/off The lighting is controlled using external devices, such as a light switch. Connected and disconnecting the mains power supply switches the light on/ off. 5.2 ALVA BL with DALI interface 5.2.1 Switching light on/off and dimming lights With DALI The light is controlled via the DALI interface.

  • Page 20: Switching The Lighting On/Off

    Settings 5.3.1 Switching the lighting on/off The light can be switched via remote control using the Switch lighting on/off function. This function is only temporarily active. The detector returns to the normal operating mode if no movement is detected in the field of detection and the preset switch-off delay time has elapsed. Function to be set Operating steps ¾...

  • Page 21: Setting The Twilight Switch Value

    Settings Operating steps Function to be set ¾ Press the button. 9 The blue LED lights up in the sensor head. Enter programming 9 The lighting is switched on. mode During this time, the detector does not respond to movements. ¾...

  • Page 22: Setting The Switch-Off Delay Time For Lighting

    Settings Operating steps Function to be set ¾ Press the button. Exit programming 9 The blue LED goes out. mode 9 The settings are saved. 9 The lighting goes out. 5.3.4 Setting the switch-off delay time for lighting The duration for which the lights remain on following the last movement can be determined using the Set switch-off delay time for lighting function.

  • Page 23: Setting The Orientation Light

    Settings Operating steps Function to be set ¾ Press the button. Exit programming 9 The blue LED goes out. mode 9 The settings are saved. 9 The lighting goes out. 5.3.5 Setting the orientation light Set orientation light function makes it possible to provide subtle lighting to dark surroundings.

  • Page 24: Setting The Orientation Light Switch-Off Delay Time

    Settings Operating steps Function to be set 10/20% ¾ Press the button. Permanently activate 9 The red LED flashes briefly three times in the orientation light the sensor head. ¾ Press the button. 9 The red LED flashes briefly three times in the sensor head. 9 The light switches on to 20% of the maxi- mum brightness Set orientation light between 10% and...

  • Page 25: Fully Automatic Mode

    Settings Operating steps Function to be set ¾ Press the button. 9 The blue LED lights up in the sensor head. Enter programming 9 The lighting is switched on. mode During this time, the detector does not respond to movements. Set the switch-off 10/20% 10/20%...

  • Page 26: Master Circuit/Slave Circuit

    Settings 9 The motion detector switches the lighting or switches the orienta- tion light on, if activated. You can find more information on how to activate the orientation light in Setting the orientation light, page 23. Operating steps Function to be set ¾ Press the button. 9 The blue LED lights up in the sensor head. Enter programming 9 The lighting is switched on.
  • Page 27 Settings The master detector reads from DALI address 15; the slave detectors write to DALI address 15. The addresses are fixed and cannot be changed. This function can only be activated via remote control. A maximum of eight bollard lights with motion detectors can be con- nected in parallel to a DALI group. Proceed as follows to switch on the lighting: Prerequisites: •...

  • Page 28: Further Settings Via Remote Control

    Settings 5.3.9 Further settings via remote control LED feedback Switch LEDs on/off The LEDs integrated in the sensor head indicate the status of the motion detector. This function can be switched on/off via remote control. The red LED flashes if movement is detected in the field of detection or if a command is received from the remote control. The blue LED lights up when the detector is in programming mode.

  • Page 29: Maintenance

    Maintenance Operating steps Function to be set ¾ Press the button. Restore factory set- 9 The function is adopted. tings 9 The blue and red LEDs in the sensor head flash in alternation. ¾ Press the button. Exit programming 9 The blue LED goes out. mode 9 The settings are saved.
  • Page 30 Technical information Fault Cause Lighting does not • The switch-off delay time has not yet switch off or lighting elapsed. switches on spontane- • False alarm caused by pets or other ously when no per- environmental influences such as leaves sons are present. moving in the field of detection. Detector does not •...
  • Page 31 This device must not be disposed of as unsorted residual waste. Used devices must be disposed of correctly. Contact your local town council for more information. 10 ESYLUX manufacturer's guarantee ESYLUX manufacturer's warranty can be found online at www.esylux.com. Technical and design features may be subject to change. 30 / 30...
