1 Introduction
The Trulifi 6016 Fast Field Data Link provides a
wireless LiFi connection between two points with
data rates up to 940 Mbit/s and a maximum
operating distance up to 300 meters, depending on
the setting and distances. The device is equipped
with a M12 8-pin X-coded Female connector port to
connect to the network. The device is powered
using the same Ethernet port using PoE and is
compliant with PoE standard IEEE 802.3af. The
device can be connected directly to a PoE enabled
Ethernet switch or using a PoE injector. For a
functioning system, a 6016 Access Points needs to
connect to a 6016 End Point. Devices are pre-
configured as Access Point and End Point in
production and this configuration cannot be
changed.
The Access Point and End Point type can be
identified via the engraving on the product.

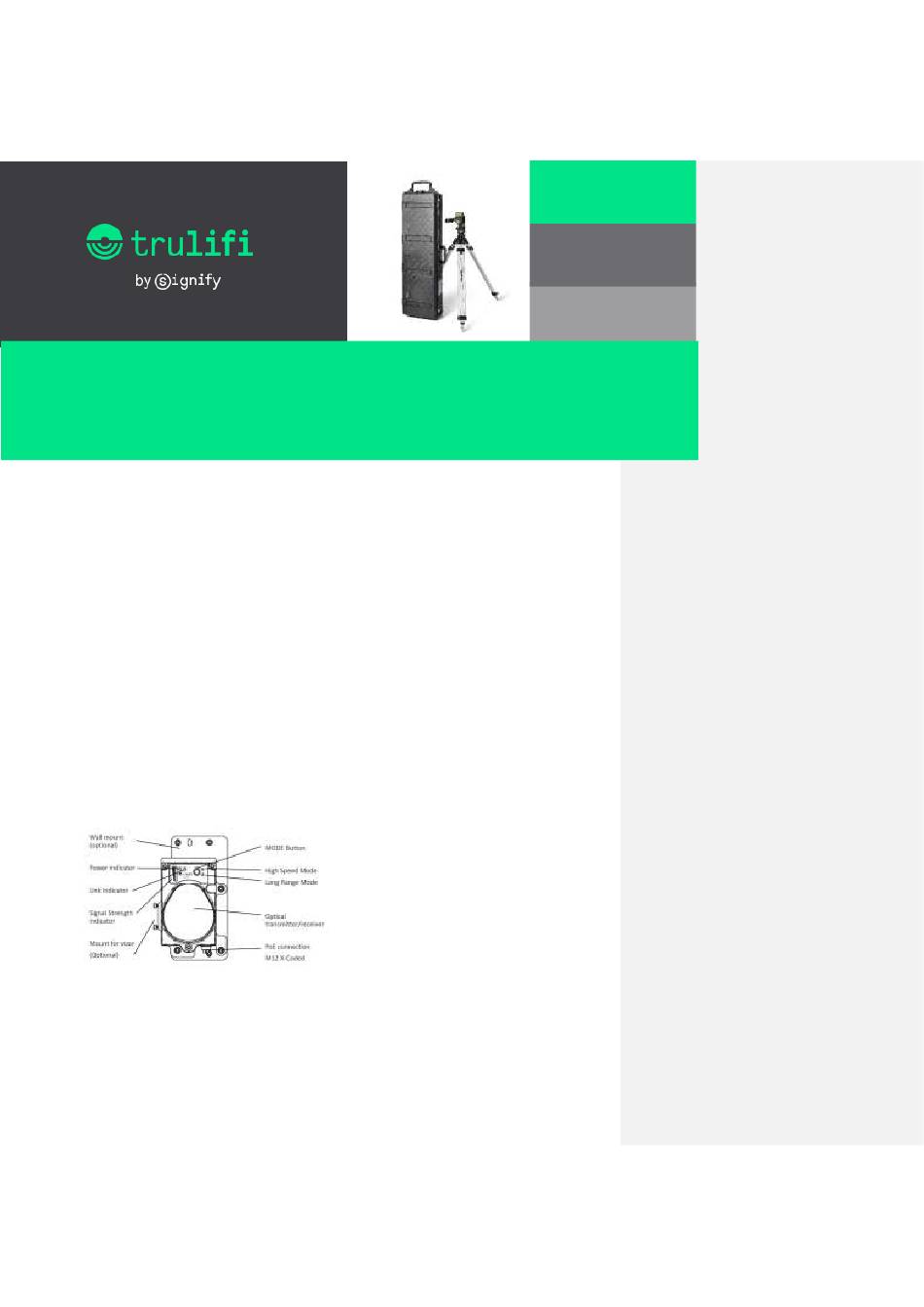

The control interface of the Trulifi 6016
The Trulifi 6016 Fast Field Data Link has the
following functions and indicators.
4422 957 14849_582_C_User Manual Trulifi 6016
• Optical Transmitter and Receiver: These are the
elements enabling a data connection using
InfraRed light. Make sure the optics are kept
clean and free from scratches and damages
• The signal strength Indicator, showing the
quality of the LiFi
(Red/Yellow/Green)
• Power LED. (Green) This light is turned ON when
the device is powered (using X-Coded M12
connector connected to PoE switch or injector)
• LINK (Green). This LED is blinking when a data
connection is established between 2 Trulifi 6016
devices
• MODE LEDs (Red); indicating if Long Range
Mode or High Speed Mode is selected. (See
paragraph 6.3)
• MODE Button. This button can be used to switch
On or Off all LEDs on the Control panel or to
switch between Long Range Mode and High
Speed Mode. (See paragraph 6.3)
NOTE: When the control LEDs are switched off and
the device is powered, the infrared LEDs and the
data connection remains powered and active. This
switch is intended only to switch off the control
LEDs to reduce visual detectability.
2 Application Notice
The Trulifi 6016 uses collimated Infrared light with
a wavelength of 820nm. The Trulifi 6016 Fast Field
Data Link is evaluated on the exposure limit
specified by EU Directive 2006/25/EC, NEN-EN-IEC
62471:2009. The Risk group is evaluated as Exempt
group, meaning that there is no risk or harm for the
eyes in using these devices. However, to prevent
any harm to the eyes, it is advisable to avoid staring
Industry
Trulifi 6016
Fast Field Data Link
Access Point
End Point
connection.
