Summary of Contents for RYKOV SNOWBLADE 120

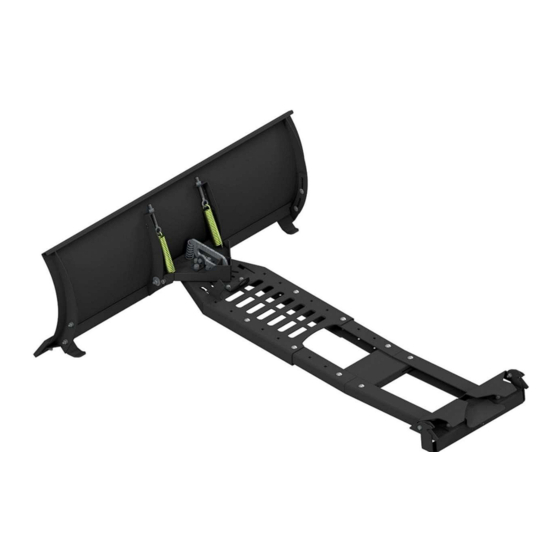

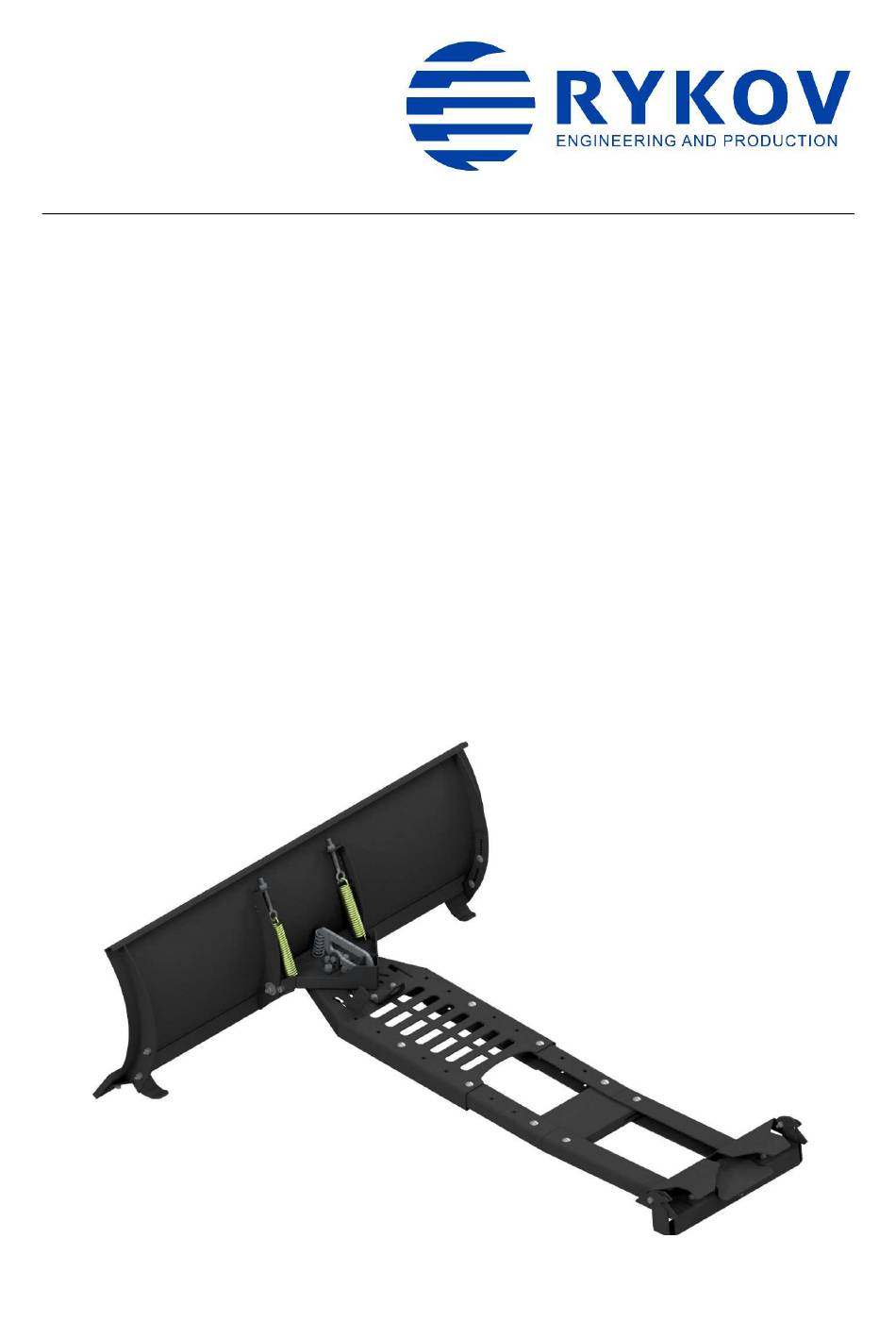

- Page 1 RYKOV Libčany, s.r.o. Libčany 14 50322 Libčany Czech Republic T/F +420 495 585 422 rykov@rykov.cz www.rykov.cz USER GUIDE – INSTALLATION AND OPERATION INSTRUCTIONS SNOWBLADE 120-150 ATV, UTV MODEL) EAN: SB-120-02-02 08/2022...
-
Page 2: Table Of Contents
Contents 1 Introduction........................3 1.1 Basic warnings……..................3 2 Safety of operation...................... 4 2.1 Safety regulations..................4 2.2 Safety pictograms..................4 3 Basic information......................5 3.1 Snowblade use....................5 3.1.1 Technical data................5 3.2 Snowblade and parts description..............5 4 Instruction of use......................6 4.1 Snowblade assembly.................. -
Page 3: Introduction
1 Introduction Dear valued customer and user! Thank you for your trust and purchase of our product. The snowblade is designated for use with ATV/UTV. Primary use is plowing of snow and impurities from roads, sidewalks, and other applicable areas. Please carefully read user installation and operation information. -
Page 4: Safety Of Operation
2 Safety of use The machine is designed to protect the operator from flying parts as much as possible. Do not remove any passive or active safety feature. This puts you at risk of injury. 2.1 Safety regulations The operator of the snowblade must be over 18 years old. It is necessary to understand the instructions for using the machine and to be aware of the general principles of occupational safety. -
Page 5: Basic Information
3 Basic Information 3.1 Snowblade use The snowblade SB 120 – 150 is designed and manufactured according to the latest knowledge in the field ATV/UTV. It stands out for its easy handling and trouble-free maintenance. The snowblade is mainly intended for plowing snow, but also other loose materials, e.g.: garden soil, sand, gravel, etc. -
Page 6: Instruction Of Use
4 Instruction of use 4.1 Snowblade assembly 6.10 6.12 6.13 6.14 6.15 6.19 6.17 6.18 6.22 6.21 6.16 6.20 6.11 PIC. 6: Snowblade assembly Assembly procedure: 1. Unpack the components from the box. 2. Put angle adjustment frame (6.1) between blade front reinforcements (6.2). Put COACH BOLT- M10x30 into the square hole in the turning frame (6.3). -
Page 7: Total Vehicle Payload (Atv/ Utv)
4.2 Total ATV/UTV payload The ATV/UTV payload cannot be exceeded after snowblade connection. Considering the operating weight of the ATV/UTV + the weight of the blade + the weight of the operator is strongly advised. The stability of the ATV/UTV changes when the snowblade is attached. 4.3 Attaching the snowblade to the ATV/UTV PIC. -
Page 8: Use In Slope/Hill
4.4.1 Use in slope/hill Do not perform the work with snowblade in steeper slopes and terrain. The safe slope accessibility of the ATV/UTV is 12°. Cleaning steeper slopes is at your responsibility. 4.5 Work with snowblade 4.5.1 Height adjustment Winch hook must be connected to the snowblade hook lifting eye (9.1). a) Snowblade lifting Use ATV/UTV winch for snowblade lifting and lowering. -
Page 9: Work Height Adjustment
4.5.3 Work height adjustment – skid shoes setting Lower the snowblade to the flat surface during work and skid shoes height adjustment. Procedure: 1. Use wrench size 13 mm, loosen the nuts (10.1) and remove screws (10.2). 2. Set skid shoes (10.3) – must sit on the ground. 3. -
Page 10: Maintenance, Care, Storage
5 Maintenance, care, storage During the maintenance lift the snowblade using the control lever in upper position. To ensure long-term satisfaction with our product, it is necessary to do proper maintenance and care. Regular maintenance of this machine will prevent its rapid wear and tear and ensure the proper functioning of all its parts. -
Page 11: Service Intervals
5.3 Service intervals Operation Before work During season Before storage Washing Cleaning After season Exchange immediate if Rubber wear strip check damaged Bolted joints check Every 5 hours Tab. 3: Service intervals 5.4 Troubleshooting and solutions Troubleshooting Cause Solution Unable lift the Winch rope is not connected to the lifting Connect the winch rope. -
Page 12: Packing Material And Snowblade Disposal After End Of Lifetime
5.6 Packing material and snowblade disposal after the end of lifetime After unpacking the snowblade, you are obliged to dispose the packaging in accordance with national laws and regulations of waste management. When disposing the snowblade at the end of useful lifetime, we recommend the following procedure: 1. -
Page 13: List Of Spare Parts
6 List of spare parts PIC. 13: Parts scheme POS. PART NUMBER PART NAME NORM SB01-00-000 SNOWBLADE 01 ( width 120 cm) SB03-00-000 SNOWBLADE 03 (width 130 cm) SB04-00-000 SNOWBLADE 04 (width 140 cm) SB05-00-000 SNOWBLADE 05 (width 150 cm) RP03-00-000 ROTATION POINT 03 CF02-00-000... - Page 14 PIC. 14: Parts scheme 1 SNOWBLADE WIDTH 120 CM PART NUMBER PART NAME NORM POS. SB01-10-000 FRONT ASSEMBLY SB01-00-002 SLIDING LEG LEFT CNC CUT SB01-00-003 SLIDING LEG RIGHT CNC CUT SB01-00-004 BLADE ATTACHMENT CNC CUT SB01-00-005 RUBBER BLADE RUBBER 1200x100x15 PRDIN603080 COACH BOLT M8x25 DIN 603...
- Page 15 SNOWBLADE WIDTH 140 CM PART NUMBER PART NAME NORM POS. SB04-10-000 FRONT ASSEMBLY SB01-00-002 SLIDING LEG LEFT CNC CUT SB01-00-003 SLIDING LEG RIGHT CNC CUT SB04-00-001 BLADE ATTACHMENT CNC CUT SB04-00-002 RUBBER BLADE RUBBER 1400x100x15 PRDIN603080 COACH BOLT M8x25 DIN 603 71085 COACH BOLT –...
- Page 16 PIC. 15: Parts scheme 2 POS. PART NUMBER PART NAME NORM RP03-10-000 ROTATION FRAME RP03-00-001 MIDDLE PLATE CNC CUT RP03-00-002 LOCKING KEY CNC CUT RP03-00-003 ROTATION STOP CNC CUT RP03-00-004 GUIDE PLATE CNC CUT RP03-00-005 DISTANCE RING CNC CUT PRDIN933143 SCREW M8x30 DIN 933 71109...
- Page 17 PIC. 16: Parts scheme 3 POS. PART NUMBER PART NAME NORM CF02-10-000 A-PART CF02-00-002 TELESCOPIC FRAME LEFT CNC CUT CF02-00-003 TELESCOPIC FRAME RIGHT CNC CUT CF02-00-004 MIDDLE REINFORCEMENT CNC CUT COACH BOLT 73278 DIN 603 M8x55 COACH BOLT 71104 DIN 603 M8x65 PRDIN125520 WASHER A8,4...
- Page 18 PIC. 17: Parts scheme 4 POS. PART NUMBER PART NAME NORM CP03-00-001 CONNECTION PLATE CNC CUT CP03-00-002 LOCKING PLATE CNC CUT CP03-00-003 REAR ROD CNC CUT CP03-00-004 FRONT ROD CNC CUT CP03-00-005 ROD LEVER CNC CUT CP03-00-006 GUIDE PLATE CNC CUT CP03-00-007 BOUNDARY RING CNC CUT...
- Page 19 PIC. 18: Parts scheme 5 POS. PART NUMBER PART NAME NORM LE01-00-001 LIFTING EYE CNC CUT 71083 SCREW M8x30 DIN 933 PRDIN125520 WASHER A8,4 DIN 125 PRDIN985231 LOCKNUT M8 DIN 985 Tab. 11: Parts list 5...
- Page 20 Jméno a adresa osoby pověřené sestavením technické dokumentace (podle 2006/42/ES, NV č. 176/2008 Sb.) / Name and address of the person RYKOV Libčany, s.r.o., Libčany 14, 50322 Libčany, ČR authorised to compile the technical file (according to 2006/42/EC): Výrobek (stroj) – typ / Shrnovací...
