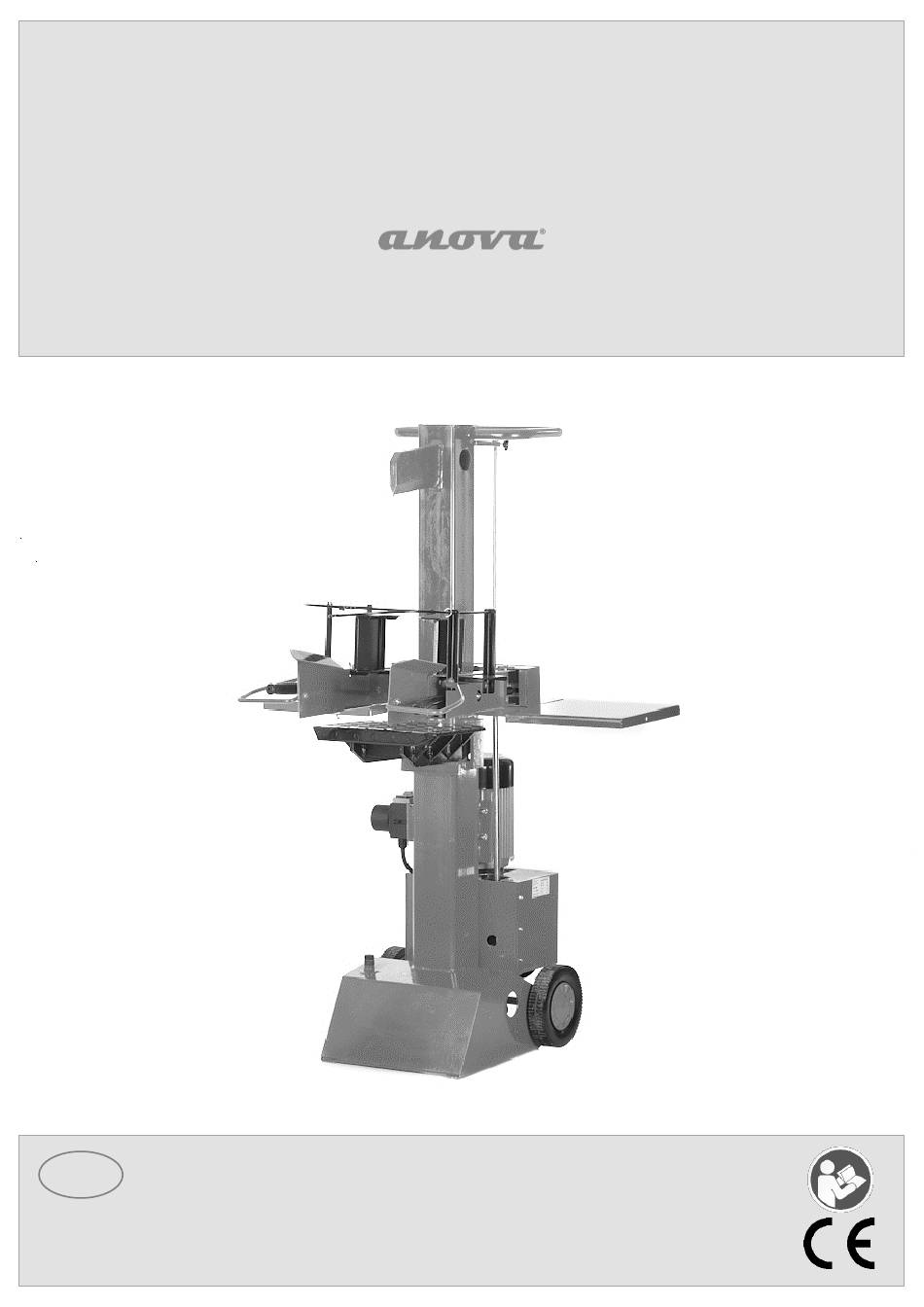

- Page 1 Electric log splitter RLT8C Instructions and user manual Millasur S.L.U. Rúa Eduardo Pondal, nº 23 - Pol. Ind. Sigüeiro 15688 - Oroso - A Coruña - 981 696 465 - www.millasur.com...
- Page 2 Anova wishes to congratulate you for having chosen one of our products and guarantees you the assistance and cooperation that has always distinguished our brand over time. This machine is designed to last many years and to be very useful if it is used according to the instructions contained in the user manual.
- Page 3 INDEX 1. SECURITY INSTRUCTIONS 1.1. Instructions for safe work 1.2. Scope of supply 1.3. Additional safety instructions 1.4. Residual risks 1.5. Safety symbols 2. TECHNICAL SPECIFICATIONS 3. PRODUCT DESCRIPTION 4. ASSEMBLY AND OPERATION 4.1. Mounting 4.2. Recommendations before use 4.3. Start up 4.4.
-
Page 4: Security Instructions
1. SECURITY INSTRUCTIONS 1.1. Instructions for safe work Important Before operating this product, please read and follow the instructions below. To prevent injury to yourself and third parties, you must also follow the prevention regulations of your professional association and the safety regulations in force in your country. Make sure that everyone who works with the equipment reads the safety instructions. -
Page 5: Scope Of Supply
Inspect the machine for possible faults. o You must inspect the safety systems to ensure that they are working properly before you start using the machine. o Check that all moving parts are in good condition, that they work properly and that there are no bindings. -
Page 6: Additional Safety Instructions
1 axis 1 bag with accessories 1 instruction manual Attention Make sure it contains all the indicated material. Check that it has not been damaged in transport. Immediately inform the distributor or supplier of any damage or missing parts, since claims filed with later dates will not be recognized. -
Page 7: Safety Symbols
1.5. Safety symbols Read the operating and safety instructions carefully before you start using the machine. Wear safety shoes to protect feet from falling logs. Wear protective gloves to protect hands from splinters. Wear ear protectors when working on the machine. Wear a full-face mask when working with the machine to protect eyes from splinters. -
Page 8: Technical Specifications
Always turn off the motor and unplug the machine before beginning any maintenance, repair or cleaning. No person other than the operator should remain in the work area. Keep other people or animals out of the danger zone (minimum distance 5m). Vent the hydraulic system before putting the machine into operation. -
Page 9: Product Description
3. PRODUCT DESCRIPTION 1. Chipping wedge. 11. Left handle. 2. Left control lever. 12. Right control lever. 3. Base table. 13. Hinge bolt. 4. Engine. 14. Upper handlebar. 5. Switch. 15. Piston displacement adjustment connecting rod. 6. Oil tank cover with dipstick. 16. -
Page 10: Assembly And Operation
4. ASSEMBLY AND OPERATION 4.1. Mounting 1. Mount the control levers. Position the levers and insert the cross-connect tubes. 2. Insert the hinge pin. 3. Lock the hinge in position with the latch at the bottom of the lever. 4. Mount the wheels. Advice: Lubricate the metal plates from the top and... - Page 11 Any modification of the product exempts the manufacturer from all responsibility for the damages that could be caused. Only persons who are familiar with and informed about the risks associated with the use of the product may prepare, use and carry out maintenance. 4.3.
-
Page 12: Trunk Type
Emergency shutdown (zero voltage) The equipment will automatically shut down if there is a power outage. To turn on, press the green button again. Use of the log splitter with 400 V 3~ Make sure the motor rotates in the correct direction (see arrow on motor). Running the engine in the opposite direction could cause damage to the oil pump. - Page 13 4.4.2. Operation with both hands: 1. Press the green button on the engine. Wait a few moments until the engine has reached the proper number of revolutions and sufficient pressure has built up in the hydraulic pump. Check the direction of the three-phase motor (400V 3~) as using the machine with the motor in the opposite direction could damage the oil pump.
- Page 14 tightening 4.5.3. Cross wedge adjustment *(Optional accessory) (Fig.6) 1. Loosen the star knob. 2. Move the cross wedge to the correct position (the knob is beyond the hole in the cutting wedge). 3. Tighten the knob. Knob 4.5.4. Split short wood 1.
-
Page 15: Maintenance And Transportation
4.5.6. How to release a stuck log With logs with knots, there is a risk of them getting caught during the cutting process. Turn off the engine and disconnect from the mains. Do not remove entangled logs by hand. Move the hooked log carefully using a crowbar. Attention Never hammer the log, never use a saw to remove the log and never attempt to remove the log with other people;... -
Page 16: Oil Change
Lubricate the piston column frequently or use an ecological spray oil. Regularly check that the connections are tight and that there are no leaks from the hydraulic tubes or connections. Correct any faulty assembly or placement of protective elements. 5.1.1. Cutting wedge sharpening After long periods of use, the cutting performance may be affected, or small deformations in the cutting edge. -
Page 17: Hydraulic Oil
Oil change: 1. The wedge and hydraulic column must be in the lowest position. 2. Remove the dipstick. 3. Place a container under the machine to collect the old oil. The container must have a capacity of at least 5 liters. 4. -
Page 18: Warranty Period
7. WARRANTY Millasur guarantees that if your product suffers from a manufacturing defect during the established guarantee period, contact or go to your point of sale. Your purchase invoice must be kept as proof of the purchase date. Your tool must be returned to your dealer in an acceptable and clean condition, in its original molded case, if applicable to the unit, accompanied by your appropriate proof of purchase. - Page 19 Some countries do not allow limitations on how long an implied warranty lasts or do not allow the exclusion or limitation of consequential or incidental damages, in which case the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or country to country.
- Page 20 These are our standard warranty terms, but occasionally there may be additional warranty coverage not determined at the time of publication. For more information, contact your nearest official Anova distributor or by visiting www.millasur.com. Warranty service is only available through official Anova dealers. You can locate your nearest distributor on our distributor map at www.anova.es.
-
Page 21: Ec Declaration Of Conformity
CE CERTIFICATE DISTRIBUTION COMPANY MILLASUR, SL RUA EDUARDO PONDAL, Nº 23 PISIGÜEIRO 15688 OROSO - A CORUÑA SPAIN EC DECLARATION OF CONFORMITY In compliance with the different CE directives, this document confirms that, due to its design and construction, and according to the CE mark printed on it by the manufacturer, the machine identified in this document complies with the pertinent and fundamental health and safety requirements.
