Summary of Contents for Mirabella International I004777

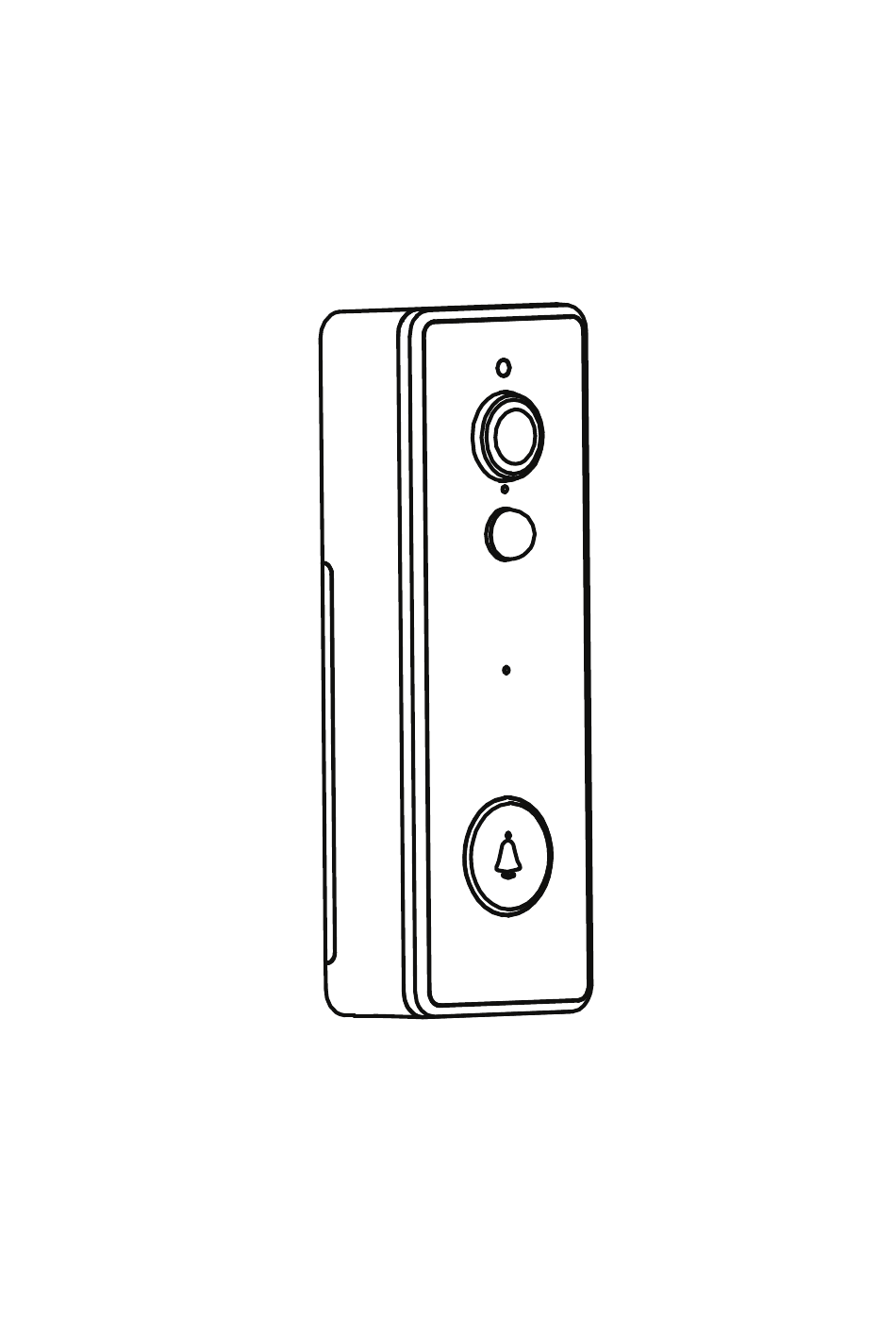

- Page 1 Quick Start Guide Full HD Doorbell Camera Model I004777 KEYCODE: 43274499...
-
Page 2: Packaging Contents
Packaging contents doorbell indoor chime USB cable bracket battery x2 screw package Install the memory card (micro SD 4-128GB, memory card not included) Install supplied bateries as the direction shown on above... - Page 3 Description 1. Light sensor 4. PIR sensor 2. Video doorbell lens 5. Microphone 3. The power indicator light 6. Doorbell button -Blue light blinking quickly: waiting 7. Built-in speaker for the pariing 8. Reset button -Blue light blinking slowly: awaiting for 9.
-
Page 4: Installation
Installation Before installation, please ensure that the installation location is covered by Wi-Fi. Please use the live preview feature to find the best height to install your doorbell. We recommend not below shoulder height. 1. Drill 2 holes in the wall. 2. - Page 5 Connection Preparation It is important that your phone is connected to a 2.4Ghz Wi-Fi and not to a 5GHz network. To verify your mobile device is set to a 2.4Ghz Wi-Fi network, navigate to the Settings menu and click on Wi-Fi. In this menu you will see all the available networks in your area. Locate the SSID (the name of your network) and ensure that the Wi-Fi SSID does not end with a 5G / 5GHz.
- Page 6 Insert a Micro SD card Please note that the camera will work without an SD card, but it will not be able to record any footage. Insert the Micro SD card gently into the SD card slot. Please pay attention to the direction of the Micro SD card.
- Page 7 Pairing the doorbell using Mirabella Genio App 1.Insert the batteries and wait for the indicator light to start blinking BLUE rapidly. (1 blink every second) if it fails to blink, press the reset button and hold until you hear an audible sound, the camera is now ready to pair. 2.Check your mobile phone is connected to the 2.4Ghz Wi-Fi network, (Wi-Fi name should not end with -5G).
- Page 8 4.Confirm that the LED indicator light is still blinking rapidly blue, tap “confirm Indicator light is blinking BLUE rapidly”, then tap “next” and enter your home network 2.4GHz Wi-Fi name and password. Reset button Tap next and the QR code will appear on your phone screen, place this QR code in front of the camera at approximate 15-20cm, until you hear a sound, example of how to scan QR code QR code is the code on your phone screen,...
- Page 9 Tap on “Beeped /Indicator switched” It will then start to connect your device. (refer to the 1st & 2nd images). 5. Once the countdown ends, the Camera has now successfully been paired to your APP. Please refer to the FAQ section for troubleshooting if this method does not connect. Doorbell camera if somehow the QR code method does not work, please reset and retry using the EZ method.
- Page 10 Setting the chime Volume Selector Adjust Volume/Mute Chime Selector Change the Chime Tone Pairing with the chime: 1. Plug-in the USB chime into a USB 2.0 socket or a USB adapter. 2. If the chime Is connected with power, the indicator will blink twice then turn off. 3.
- Page 11 Q. LED indicator is not blinking rapidly as per APP screen A. Power off the camera, wait for 20 sec, depress the reset button until you hear a sound, then release the button, wait for another 30-40 sec until the light starts to blink Blue rapidly again (1 blink every second).
- Page 12 How to connect camera to another router Go to the camera settings page, look for “remove device” Remove it and reset the camera, pair it again to the new router through the app. Poor performance, takes a long time to load the live footage Please check the Wi-Fi signal, if it is less than 60%, you will need consider changing the camera location or purchasing a Wi-Fi extender to boost the signal.
- Page 13 Need more help or need further technical assistance from Mirabella engineer On the genio APP home screen, tap on, Me, -> FAQ & Feedback -> Report issue Fill the fault information or suggestion for the APP/product, then submit please detail the problem in here upload the screenshot if possible Remember the performance of your Wi-Fi camera is relies heavily on the...
- Page 14 9.When the electric device is not being used for an extended. All trademarks are used for reference purposes only. Made in China ANKO, HOME&CO AND AUDIOSONIC® ARE TRADEMARKS OF KMART AUSTRLIA LIMITED. MIRABELLA INTERNATIONAL PTY LTD 1 MIRABELLA DRIVE, TULLMARINE, VIC, AUSTRALIA 3043 TOLL FREE: 1800 636 528, www.mirabellagenio.com.au...
