Single Tube Reader USB

User Manual

281947 Revision E

Table of Contents

Need help?

Do you have a question about the 281947 and is the answer not in the manual?

Questions and answers

Summary of Contents for AZENTA 281947

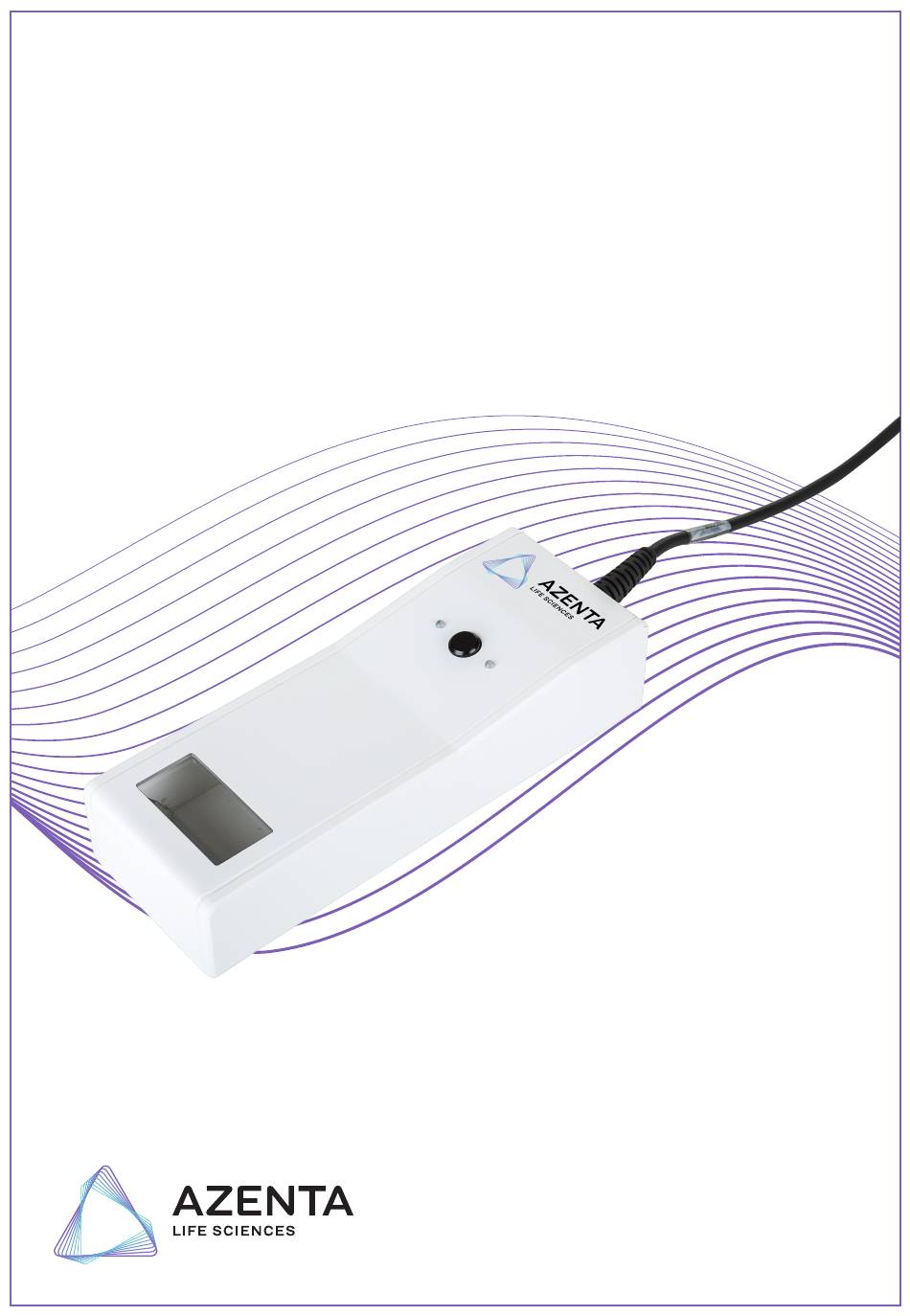

Page 1: Single Tube Reader Usb Cover
Single Tube Reader USB User Manual 281947 Revision E...
Page 2 © 2022 Azenta US, Inc. All rights reserved. The information included in this manual is proprietary information of Azenta US, Inc. and is provided for the use of Azenta US, Inc. customers only and cannot be used for distribution, reproduction, or sale without the express written permission of Azenta US, Inc.
Page 3 Azenta Life Sciences Part Number: 281947 Rev. E Corporate Headquarters 2910 Fortune Circle West Indianapolis, IN 46241 U.S.A. European Union Rep- resentative Im Leuschnerpark 1B 64347 Griesheim, Germany For Technical Support: Location Contact Number Website +1.888.2.AZENTA North America (+1.888.229.3682)
Page 4: Revision History
Azenta Life Sciences Single Tube Reader USB Part Number: 281947 Rev. E Revision History Part Number: 281947 Azenta Single Tube Reader USB User Manual Revision Date Revision 5 JUL 2014 Revision A 25 APR 2017 Revision B 1 OCT 2018 Revision C 12 MAR 2020 Revision D...
Page 5: Table Of Contents
Azenta Life Sciences Part Number: 281947 Rev. E Table of Contents Single Tube Reader USB Cover Revision History 1. Introduction 2. Installation 3. Specifications 4. Attaching the Cable 5. Detaching the Cable 6. Reading a Tube Continuous Scanning Disabled Continuous Scanning Enabled 7.
Page 6: Introduction
1. Introduction The Single Tube Reader USB from Azenta is a sophisticated 2D Datamatrix code reader. It is capable of reading standard pre-coded tubes from a range of manufacturers, assuming they adhere to the ISO 16022 Datamatrix Two Dimensional Bar Code format.
Page 7: Installation
2. Installation The system has been designed with minimal user setup and no software is required. The USB connector cable is already fitted. Step Action Ensure the connector cable is fully inserted into the 1. reader, then connect the USB end to the USB port on the host device to power up the reader.
Page 8: Specifications
3. Specifications Parameter Specification 2D Datamatrix, 1D linear barcodes, QR codes, ISO 16022, square and rectangular format, Code formats read ECC 200, 0–20 grid sizes, white on black and black on white, numeric and alphanumeric Sensor CMOS 1.2 Megapixel (1280 x 960) gray Sensor type scale Light source...
Page 9 Azenta Life Sciences Single Tube Reader USB Part Number: 281947 Rev. E Parameter Specification Dimensions (H x W 38 x 59 x 150 mm x D) Operating humidity 5% to 95% non-condensing Power require- USB connection 5 vdc (mA): typical = <200 mA ments idle = <90 mA...
Page 10: Attaching The Cable
4. Attaching the Cable The RJ50 cable is a multi-pin connector and can be damaged if handled incorrectly. Ensure that the cable is fully pushed home. Errors may occur if the cable is not properly installed.
Page 11 Azenta Life Sciences Single Tube Reader USB Part Number: 281947 Rev. E The connector cable is already attached, but if necessary the cable can be inserted by slotting the RJ50 connector into the reader. NOTE: Ensure it is in the correct orientation.
Page 12: Detaching The Cable
5. Detaching the Cable Step Action Insert one end of a paperclip into the hole on the back of the reader. 1. ...
Page 13 Azenta Life Sciences Single Tube Reader USB Part Number: 281947 Rev. E Step Action Apply pressure on the paperclip and gently pull the cable from the reader. 2. Copyright © 2022, Azenta US, Inc.
Page 14: Reading A Tube
6. Reading a Tube The Azenta Single Tube Reader USB simplifies reading tubes. By default, the device is not in continuous scanning mode, so the button will need to be pressed to scan. The continuous scanning feature of the Single Tube Reader USB reader can be turned ON by scanning the...
Page 15: Continuous Scanning Enabled
Azenta Life Sciences Single Tube Reader USB Part Number: 281947 Rev. E Continuous Scanning Enabled Hold the tube approximately 0.5 cm (0.2 in) from the scanning window. NOTE: This will prevent cross contamination and damage to the scanning window. The unit will beep once to indicate a successful read.
Page 16: Reading A Linear Barcode
7. Reading a Linear Barcode The Azenta Single Tube Reader USB also reads linear barcodes. Use the targeting light to aim the beam over the linear barcode and press the read button. The unit will beep once to indicate a successful read.
Page 17: Reader Feedback
8. Reader Feedback The Azenta Single Tube Reader USB reader uses a combination of LEDs and audibles to indicate different scenarios. See the chart below for more information. Audio Scenario Feedback Feedback Green LED Successfully powers up 2 Beeps lights up...
Page 18: Quick Setup Codes
9. Quick Setup Codes The Azenta Single Tube Reader USB can be configured by scanning one of the codes from the table below. NOTE: The configuration change will take effect immediately and be saved to memory. Setup Action Setting...
Page 19 Azenta Life Sciences Single Tube Reader USB Part Number: 281947 Rev. E Setup Action Setting Code Continuous Scan On Optional Disable Alternative OS Default Enable Alternative OS Optional (MAC/Linux) Enabled reading of reversed codes (black on white or white on Default black).
Page 20 Azenta Life Sciences Part Number: 281947 Rev. E Setup Action Setting Code Mirroring On Default Technical Reader ID and Firmware Support STD Contrast Code (35% AGC) Optional Suffix - Enter Default Suffix - Tab Optional Universal Keyboard Mapping Default Copyright © 2022, Azenta US, Inc.
Page 21: Preventative Maintenance
10. Preventative Maintenance Periodically clean the scanning window with a moist, non- abrasive cloth to allow the best performance of the device. The following are safe to use for cleaning as needed: 70% Isopropyl Alcohol Cleanroom wipes Mild detergents...
Page 22: Appendix A: Troubleshooting
Appendix A: Troubleshooting Single Tube Reader does not Read Barcodes This procedure is for the recovery of Single Tube Reader units which cannot read barcodes. Print this document to allow for easier scanning of the reset codes. NOTE: This procedure applies only to Single Tube Readers which use QR codes for programming.
Page 23 Azenta Life Sciences Single Tube Reader USB Part Number: 281947 Rev. E Step Action Scan the QR code below. 1. Hold the scanner approximately 50 mm (2 in.) from the code. The blue aiming light from the scanner does not need to completely cover the code, as it is the wider area red illumination which provides the reading.
Page 24 Azenta Life Sciences Part Number: 281947 Rev. E Step Action If scanning the Factory Reset code fails to resolve the issue, Mirror Reading mode of the scanner is set incorrectly (the scanner within the Single Tube Reader sees codes through a mirror therefore, this mode is required).
Page 25 Azenta Life Sciences Single Tube Reader USB Part Number: 281947 Rev. E Step Action Performing a Factory Reset returns the unit to basic factory settings. To reconfigure the device, scan the code below. 3. A successful read is indicated by two beeps from the scanner with the second beep at a higher pitch than the first.
Page 27: Appendix B: Declaration Of Ce Conformity
Appendix B: Declaration of CE Conformity...
Page 28: Appendix C: Weee Statement (European Union)
Appendix C: WEEE Statement (European Union) The symbol above indicates that Waste Electrical and Electronic Equipment (WEEE) is not to be disposed of as unsorted municipal waste. Equipment marked with this symbol is to be collected separately. The objectives of this program are to preserve, protect and improve the quality of the environment, protect human health and utilize natural resources prudently and...
Page 29 The waste collection, reuse, recycling, and recovery programs available to Azenta Life Sciences customers, vary by customer location. Please contact the responsible body (e.g., your laboratory manager) for information about local requirements.
