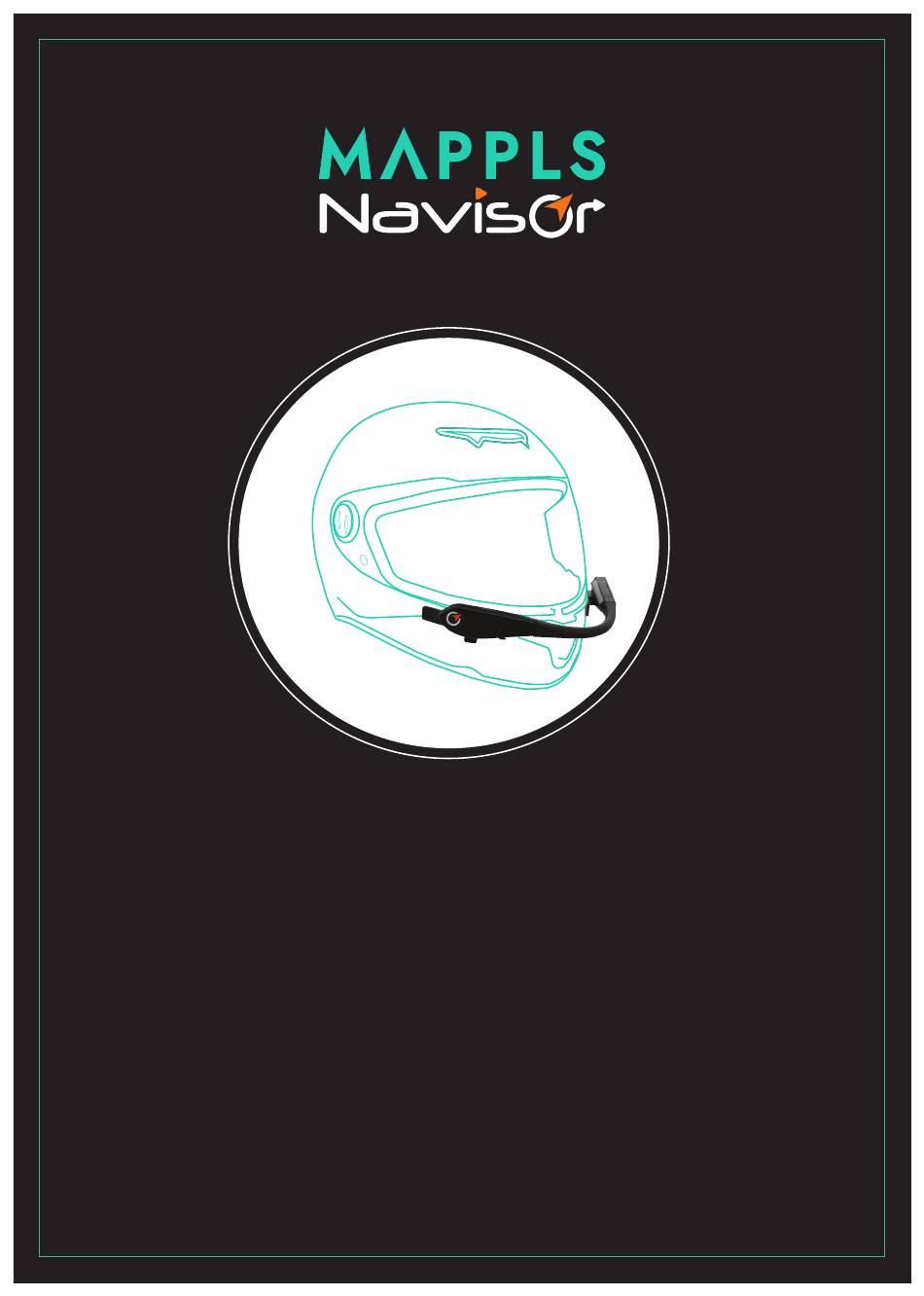

- Page 1 Retrofit Smart Helmet Kit User Manual...
-
Page 2: Table Of Contents
Introduction In the Box Overview Features Appearance Front view 4 Bottom view 4 Back View Start Using your device Charge the Navisor Charging Status Power On and Off Installation How to use Navisor with Mappls App LED Pattern Normal Turn Slight Turn Sharp Turns U-Turn 9... - Page 3 The User agrees and acknowledges that the 2Wheeler Navigation product/aid called the Navisor and NavAudio is for aiding the user with directions on roads. The User understands and further acknowledges that there is always a possibility of new roads being constructed/ turns being closed/opened which may not be captured/updated in the product.
-
Page 4: In The Box
INTRODUCTION In the Box Navisor 1 unit Mounting Bracket 2 unit Mounting Bracket SMART HELMET KIT Overview Navisor, when used with NavAudio, is a complete smart helmet kit that turns your existing full-face helmet into a smart helmet. Navisor offers real-time visual cues for navigation that are easy to understand, keeping you aware of your upcoming turns or deviations without having to take your eyes off the road. -
Page 5: Features
Features Peripheral Cueing Navigation System Long Battery Life – Atleast 12hrs of continuous use Integrated Crash/SOS sensor Designed for IP65 and Atleast 2 meters drop resistant Visible in all lighting conditions – Direct Sun, Rain, Fog, Dusty Compatible with most full-face helmets – easy installation Tech Specifications Works on Bluetooth low energy mode (BLE 5) 350mAh battery... -
Page 6: Appearance
Appearance Front view A. Light Sensor B. Brightness (-) C. Power On/ Brightness Bottom view A. Type-C Charging port Back view A. Left Mounting Bracket B. Right Mounting Bracket... -
Page 7: Start Using Your Device
START USING YOUR DEVICE Charge the Navisor Your device is powered by a rechargeable Li-Ion battery. Insert the USB cable into the USB charger port. Connect the USB cable to the charging head, and then plug the charging head into a standard outlet. -
Page 8: Power On And Off
Power On and Off Turn on press the power on/ brightness (+) for 1 click. Turn off press & hold the brightness (-) & power on/brightness + simultaneously for 1 second. Brightness Control To increase brightness – press and hold power ON/brightness (+) button until adjusted to convenient brightness To decrease brightness –... - Page 9 Step 2: Peel the sticker as shown. Locate the sticker on the back of the mount and peel off the protective layer.
- Page 10 Step 3: Align the mount by using the guided sticker as shown.Use the Guided sticker in the front of the mount to align it properly on the surface of the helmet. Make sure it is centered and level. Please Ignore the etched L&R symbol on the mount. Kindly refer to the stickers (Right) and (Left) for mounting navisor on the helmets...
- Page 11 Step 4: Stick the mount to the rim of the helmet as shown below.Press the mount firmly onto the surface of the helmet, using the guided sticker as a reference point. Press the mounts on to the Ÿ surface of the helmet tightly and it is advised to leave it undisturbed for 24hrs before mounting the Navisor.
- Page 12 Step 5: Slide in the Navisor onto the mount. Locate the slot on the back of Navisor and slide it onto the mount attached to the helmet. Push it in until you hear a click, indicating that it is securely attached.
-
Page 13: How To Use Navisor With Mappls App
How to use Navisor with Mappls App For Navisor Device Download Mappls App from the Google Play Store or Apple’s App store, or scan QR to open the app link for download Open the App Enter valid Email ID / Mobile no. Click on the Sign Up to hamburger menu... - Page 14 Tap on Settings Enable Navisor Scroll up the Quick Access Click on menu and click on Connect...
- Page 15 Click on Turn on bluetooth of your device (follow the on screen Click to instructions) Continue emergency Click on contact or click Continue on skip...
- Page 16 Click on Click on allow Connect Navisor Connected...
- Page 17 How to Use Navisor along with Mappls App Open the App Tap on Settings Enable Navisor Click on the Click on hamburger menu...
- Page 18 Click on the Direction Enter start and button on end location. home screen. Click on Navisor Click on Start icon on the Navigation navigation screen...
- Page 19 Click on Click on allow Connect Click on Navigation allow screen...
-
Page 20: Led Pattern
LED PATTERN Normal Turn LED color: Red Signal Distance Left LED’s Right LED's Left Turn 250 meters 150 meters 50 meters Immediately (blinking Red light) All LED blinking 250 meters Right Turn 150 meters 50 meters Immediately (blinking Red All LED blinking light) -
Page 21: Slight Turn
Slight Turn LED color: Yellow Signal Distance Left LED’s Right LED's Slight 250 meters Left Turn 150 meters 50 meters Immediately (blinking Yellow 2 Still and 3 LED blinking light) 250 meters Slight Right Turn 150 meters 50 meters 2 Still and 3 LED blinking Immediately (blinking Yellow light) -
Page 22: Sharp Turns
Sharp Turns LED color: Purple Signal Distance Left LED’s Right LED's Sharp 250 meters Left Turn 150 meters 50 meters Immediately (blinking Purple light) All LED blink right to left dirction Sharp Right Turn 250 meters 150 meters 50 meters Immediately (blinking Purple All LED blink left to right dirction... -
Page 23: U-Turn
U Turn LED color: White Signal Distance Left LED’s Right LED's U- Turn 250 meters 150 meters 50 meters Immediately (blinking White light) All LED blink left to right direction Destination LED color: Green Signal Left LED’s Right LED's Straight two LED will blink for one second Single LED will blink for 10 second When you reach... -
Page 24: Battery Safety
OTHER Battery Safety Use the original battery supplied by MapmyIndia only. The use of any non-original accessories may damage the device, in which case we will assume no repair liabilities for such damages. Avoid contacts with metal objects as they may cause short circuits on battery contacts. -
Page 25: Subscription Renewal
Warranty Terms Terms and Conditions of Limited Warranty: This warranty is applicable within India only. This warranty card along with the original proof of purchase and/ or original invoice must be presented to the service staff when requesting service and or repair .iii. -
Page 26: Warranty Card
Warranty Terms d. Commercial and/or industrial use e. Dismantling of the device for repairs and or repairs by an unauthorized person and or entity f. Demonstration on use of appliance and/ or product g. Accessories such as but not limited to car charger, wall charger, mount, battery USB cable and any free gift items h. -
Page 27: Safety And Usage
Ÿ Handle and dispose batteries and chargers with care Ÿ 1. Use only MapmyIndia approved batteries and chargers, these are specially designed for your device. Incompatible batteries and chargers may cause serious injuries or damages to your device 2. Never place batteries or devices on fire or in heating devices, such as microwave ovens, stoves, or radiators, Batteries may explode when overheated 3. - Page 28 Learn more about Navisor For questions and technical support E-mail: vtsupport@mapmyindia.com Contact: +91-9999-333-223 website: about.mappls.com Download Mappls App...
