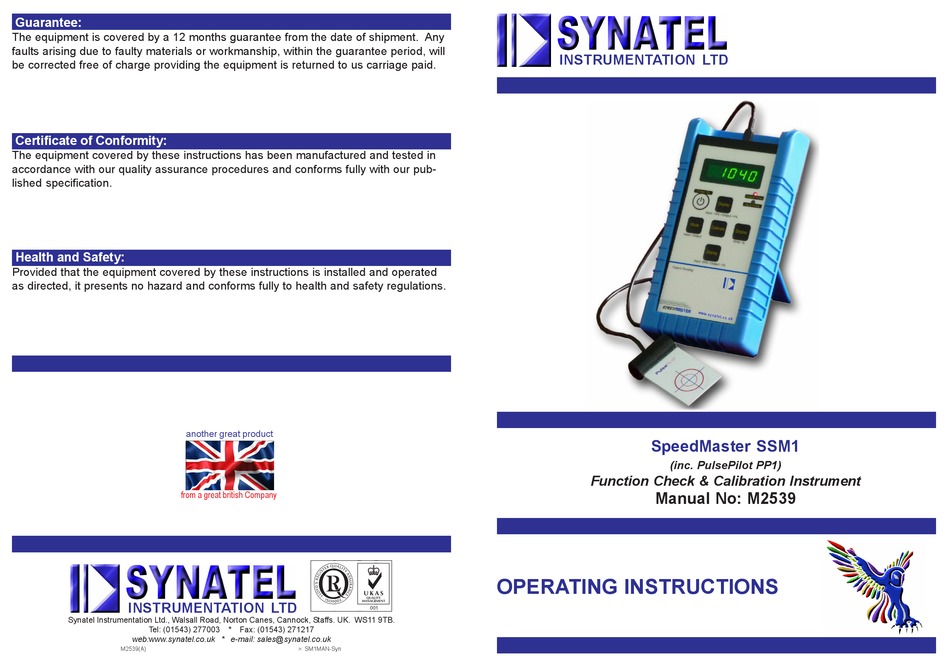

Guarantee:
The equipment is covered by a 12 months guarantee from the date of shipment. Any
faults arising due to faulty materials or workmanship, within the guarantee period, will
be corrected free of charge providing the equipment is returned to us carriage paid.
Certificate of Conformity:
The equipment covered by these instructions has been manufactured and tested in
accordance with our quality assurance procedures and conforms fully with our pub-
lished specification.
Health and Safety:
Provided that the equipment covered by these instructions is installed and operated
as directed, it presents no hazard and conforms fully to health and safety regulations.
another great product
from a great british Company
INSTRUMENTATION LTD
Synatel Instrumentation Ltd., Walsall Road, Norton Canes, Cannock, Staffs. UK. WS11 9TB.
Tel: (01543) 277003 * Fax: (01543) 271217
web:www.synatel.co.uk * e-mail: sales@synatel.co.uk
M2539(A)
abcdef
>: SM1MAN-Syn
INSTRUMENTATION LTD

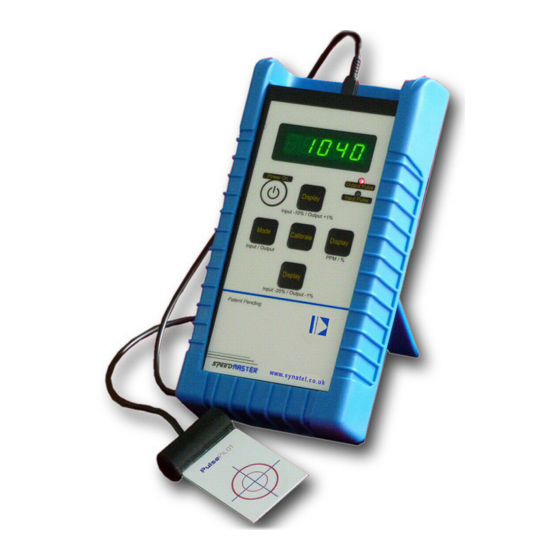

SpeedMaster SSM1
(inc. PulsePilot PP1)
Function Check & Calibration Instrument
Manual No: M2539
OPERATING INSTRUCTIONS
Advertisement
Summary of Contents for Synatel SpeedMaster SSM1
- Page 1 Function Check & Calibration Instrument from a great british Company Manual No: M2539 abcdef OPERATING INSTRUCTIONS INSTRUMENTATION LTD Synatel Instrumentation Ltd., Walsall Road, Norton Canes, Cannock, Staffs. UK. WS11 9TB. Tel: (01543) 277003 * Fax: (01543) 271217 web:www.synatel.co.uk * e-mail: sales@synatel.co.uk M2539(A) >: SM1MAN-Syn...
- Page 2 SpeedMaster Check Results Company Name: Product Ref. ID Trip Setting 10% Normal Setting Trip Setting 20% Sig./Initials Date: or Location Ref. (if Applicable) >:SpeedMaster-AuditSheet(A)
- Page 3 NOTE - This procedure can be carried out in the Workshop or on the machine. Most Check list: Storage Case Synatel speed sensors include automatic calibration at 20% under speed. The SpeedMaster can be used to calibrate to any other figure if needed.
- Page 4 Introduction: Button Functions: SpeedMaster is a test instrument designed to check the function and calibration of all types of Synatel speed monitors. The system consists of the SpeedMaster hand held instrument and PulsePilot transducer. By inserting the PulsePilot between the target and speed monitor, the actual shaft speed can be displayed.
