Summary of Contents for Festo Didactic Bionic Chameleon

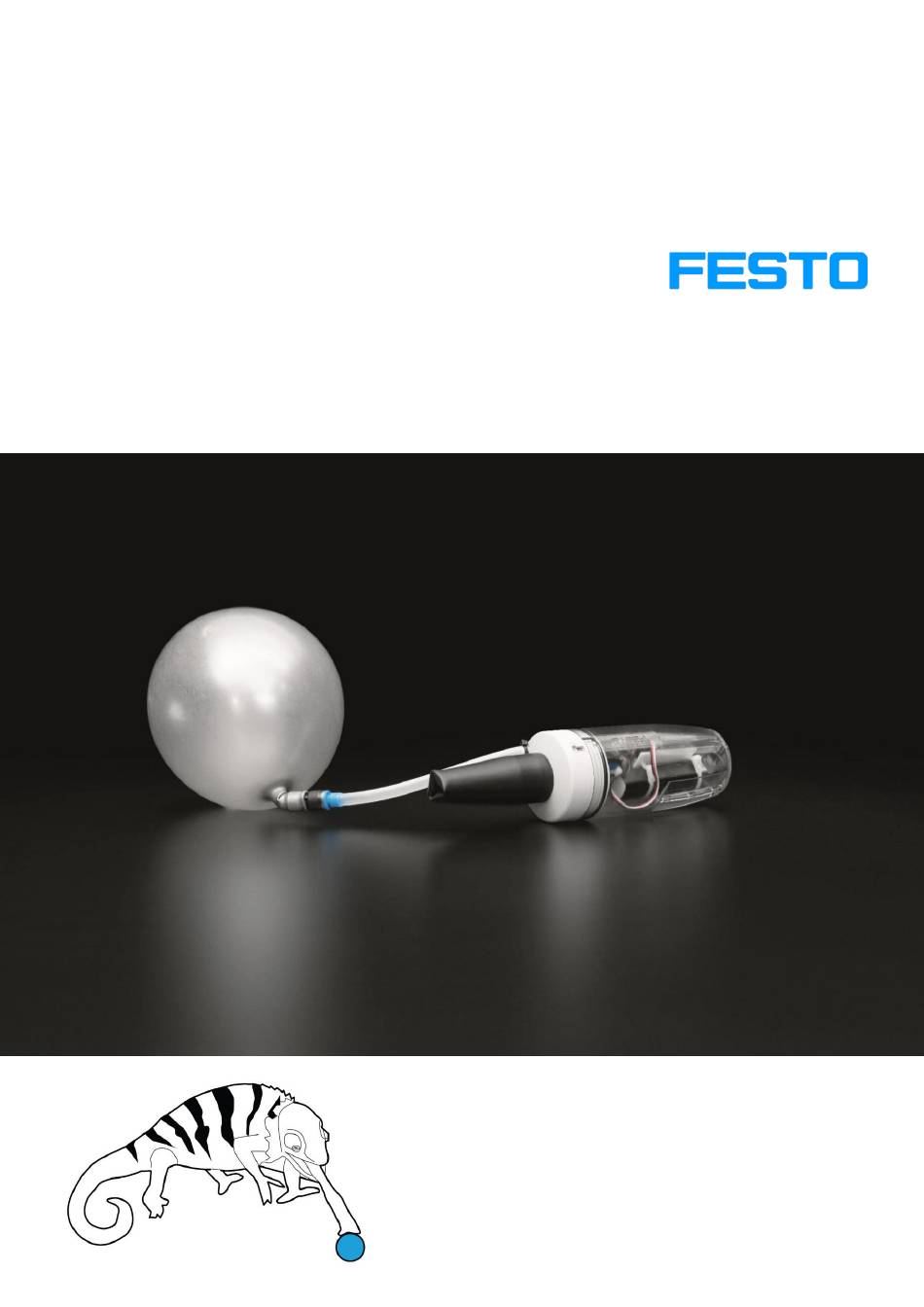

- Page 1 Bionic Chameleon Bionic Chameleon Bionic Chameleon Bauanleitung Assembly Instruction Bauanleitung...
- Page 2 Equipment and Supplies Required Items from the Bionics Kit: Transparent body waterproof servo motor (small) Connecting element Silicone cap Cable ties Sealing rings (2 pieces) Silicone tube Tube (black) Lid chameleon Microcontroller Festo Didactic SE...
- Page 3 Equipment and Supplies Additionally required AA batteries oder NiMH accumulators (4 pieces) Scissors Material for chameleonbody (optional) Balloon Festo Didactic SE...
- Page 4 Required items: Silicone cap, long cable tie (1 piece) Open the silicone cap and pass the cable tie through the connector. Close the cable tie and tighten it. Then return the silicone cap to its original position. Festo Didactic SE...
- Page 5 Pass the cable tie through the hole in the lid and slide the silicone cap over the provided attachment. Required items: Connecting Element, sealing rings (2 pieces) Place the two sealing rings into the outer grooves of the connecting element. Festo Didactic SE...
- Page 6 Attach the waterproof servo motor on the holder inside the connecting element and fasten it with a cable tie. Shorten the cable tie, if necessary. Required items: Connecting element, lid Chameleon Attach the Chameleon lid to the connecting element and lock both parts by twisting. Festo Didactic SE...
- Page 7 Push the cable tie of the silicone cap through the opening of the rudder horn and fix it with the lock of a removable cable tie. Shorten the cable ties if necessary. Required items: Microcontroller, AA batteries (4 pieces) Insert 4 batteries, 2 on each side of the electronic board with microcontroller. Festo Didactic SE...
- Page 8 The black cable must be connected to the GND (Gorund/ negative pole) of the plug. You can use all plugs (pins). Required item: Microcontroller Turn on the microcontroller with using the switch. The LED lights up green. Festo Didactic SE...
- Page 9 Required items: Transparent body with microcontroller, connecting element with silicone cap Fasten the Chameleon lip to the transparent body with the connecting element. Rotate both components to secure them. Festo Didactic SE...
- Page 10 ONLY inflate the balloon with an air pump. Blow up the balloon. Squeeze the balloon that no air will leak. Push the balloon over the black tube and the silicone tube. Attach the balloon to the black tube with a cable tie. Festo Didactic SE...
- Page 11 Print the template for the silhouette on DIN A3 format and cut out your outline. Transfer the silhouette onto a plastic foil and cut out the outline. Attach the outline to the body with cable ties. Congratulations! Your chameleon gripper is ready. Festo Didactic SE...
- Page 12 This allows the tongue to adapt to the shape and size of the target and tightly enclose it. The food sticks to the tongue and is pulled in like a fishing line! Festo Didactic SE Rechbergstraße 3 73770 Denkendorf Telefon +49 711 34670...
