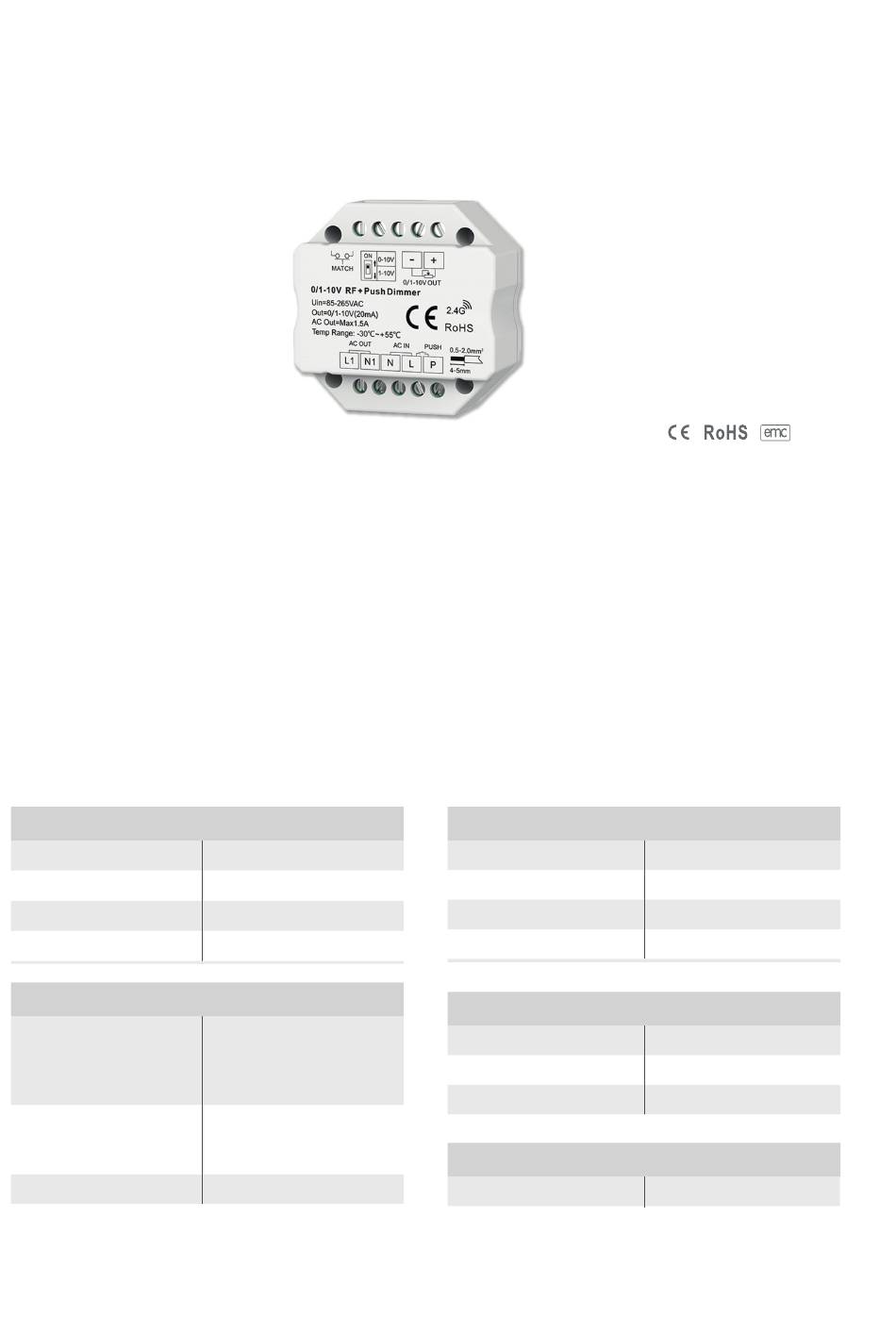

114460 | Sys-Pro Push/Radio Mesh Dimmer with 0/1-10V Output and
0/1-10V RF + Push Dimmer
Switch 85-265V 1.5A
Model No.: L1
Features
● 0/1-10V RF or AC push dimmer, 1 channel output.
● Output 1 channel 0/1-10V signal, connect with 0/1-10V dimmable driver.
● High voltage AC input, High voltage AC relay output.
● 0-10V or 1-10V output selectable by DIP switch.
● 256 levels 0-100% dimming smoothly without any flash.
● Compatibility with 2.4G single zone or multiple zone dimming remote control.
● Connect with external push switch to achieve on/off and 0-100% dimming
function.
● Easy to be placed in standard wall junction box behind a push switch.
Technical Parameters
Input and Output
Input voltage
Output voltage
Output signal
Output current
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Certification
User Manual Ver 1.0.2
AC85-265V
AC85-265V
0/1-10V (20mA)
Max 1.5A (AC)
EN 55015:2013
EN 61547:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61347-2-11:2002
EN 61347-1:2015
EN 62493:2015
CE,EMC,LVD
www.iskydance.com
Dimming data
Input signal
RF Control distance
Dimming level
Dimming range
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
Warranty
Warranty
LVD
RF 2.4GHz + Push Dim
30m
256 levels
0 - 100%
Ta: -30
O
C ~ +55
O
C
T c: +85
C
O
IP20
5 years
Page 1
Advertisement
Summary of Contents for Linear Technology Sys-Pro 114460
- Page 1 114460 | Sys-Pro Push/Radio Mesh Dimmer with 0/1-10V Output and 0/1-10V RF + Push Dimmer Switch 85-265V 1.5A Model No.: L1 Features ● 0/1-10V RF or AC push dimmer, 1 channel output. ● Output 1 channel 0/1-10V signal, connect with 0/1-10V dimmable driver. ●...
- Page 2 114460 | Sys-Pro Push/Radio Mesh Dimmer with 0/1-10V Output and Switch 85-265V 1.5A 0/1-10V RF + Push Dimmer Mechanical Structures and Installations 0-10V signal output Match key 26.00 mm 52.00 mm DIP switch for 0-10V MATCH 1-10V 0-10V or 1-10V AC N input 0/1-10V OUT 0/1-10V RF Dimmer...
- Page 3 114460 | Sys-Pro Push/Radio Mesh Dimmer with 0/1-10V Output and Switch 85-265V 1.5A AC110-220V Push Switch 0-10V MATCH 1-10V 0/1-10V OUT 0/1-10V RF Dimmer Uin=85-265VAC Out=0/1-10V(20mA) Out=Max1.5A RoHS Temp Range: -30℃~ +55℃ AC OUT AC IN Push 0.5-2.0mm² 4-5mm DIM+ 0/1-10V DIM- Dimmable Driver...
- Page 4 114460 | Sys-Pro Push/Radio Mesh Dimmer with 0/1-10V Output and Switch 85-265V 1.5A Application notes 1. All the receivers in the same zone. RF remote Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m, as long as there is a receiver within 30m, the remote control distance can be limitless.
