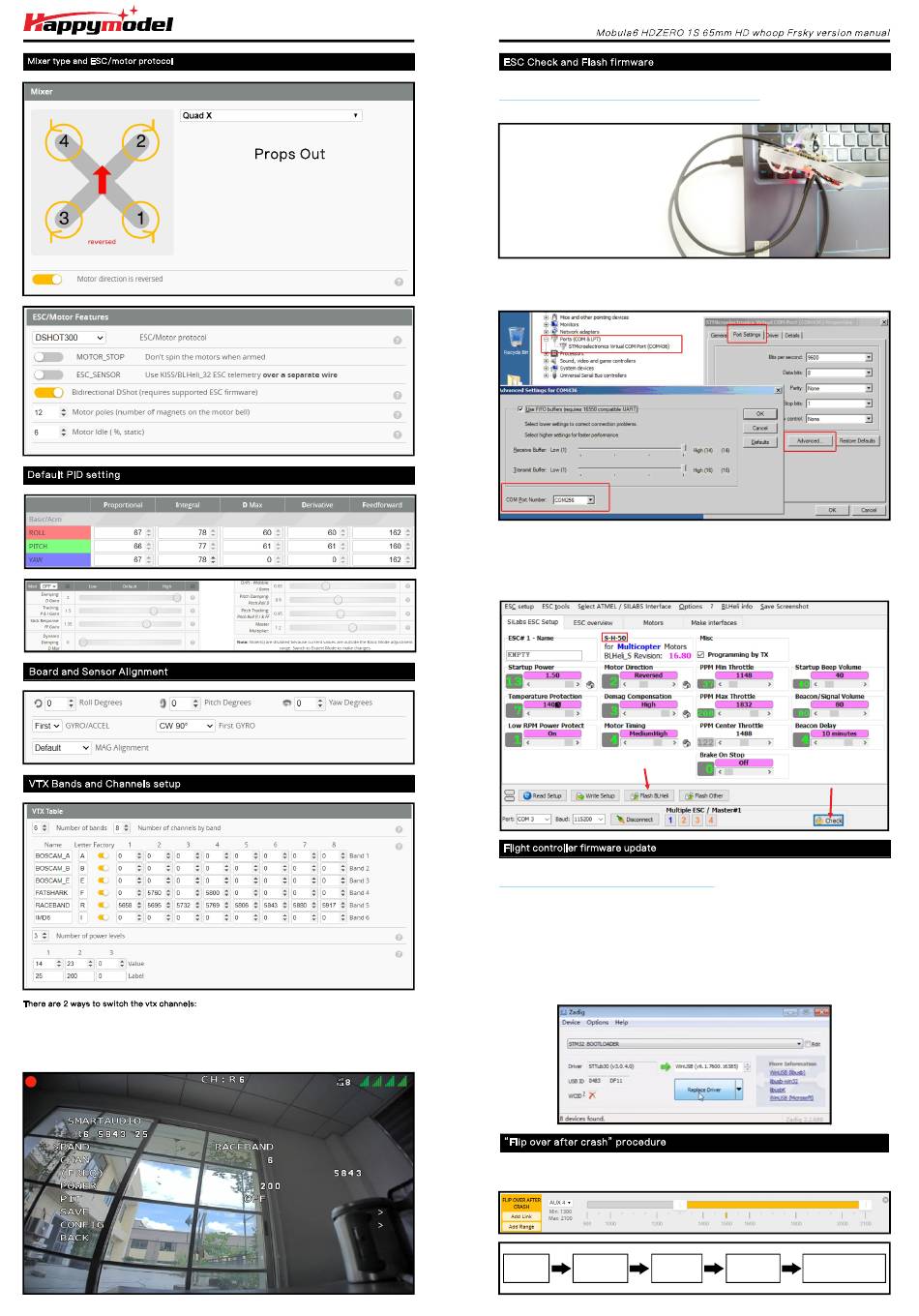

Happymodel Mobula6 HDZERO Quick Start Manual page 2

Firmware update
Firmw are update
Fix the CW propeller onto the M 2
and M motor (CW motors)
Fix the CCW propellers onto the M1
and M4 motor (CCW motors)
1. Connect battery for Mobula6 HDZERO then plug USB, go to Video Transmitter tab and select
band and channel then hit "save"
2.Disarm the Mobula6 HDZERO and then move the stick of the transmitter(THR MID+YAW LEFT
+PITCH UP)to enter OSD Menu,Enter to Features,then enter to VTX SA to set VTX Band and channel
3
1. Download New release Blhelisuite from:
https://www.mediafire.com/folder/dx6kfaasyo24l/BLHeliSuite
2. Plug the usb and connect the flight controller to computer
3. Open the Device Manager of your computer, find the Ports, please make sure the Com port
Serial Number is under 255, otherwise it will can't connect to the BLHELISUITE. You can change
the port serial number like the bellowing step :
4. Open the BLHELISUITE, Select SILABS BLHeli Bootloader (Cleanflight) from the third tab on
the top side. Then Select the right Serial com port and Click connect. You can also Flash the new
release BLHeli_s firmware via the BLHEILISUITE, the firmware Target is " -H- 0"
Notes: RPM Filter has been enabled for the
JazzMaveric (16.80 BLS) Link :https://bit.ly/3A1sguU
Firmware target
Flash firmware
1. Install latest STM32 Virtual COM Port Driver
http://www.st.com/web/en/catalog/tools/PF257938
2. Install STM BOOTLOAD Driver (STM Device in DFU MODE)
3. Open Betaflight configurator and choose firmware target "
firmware version.
4. There are 2 ways to get in DFU Mode: 1). solder the boot pad and then plug USB to computer 2).
loading betaflight firmware and hit "flash", then it will getting into DFU Mode automatically.
5. Open Zadig tools to replace the drivers from STM32 Bootloader to WINUSB Driver.
6. Reconnect the flight controller to the computer after replace driver done , and open
Betaflight Configurator, loading firmware and flash.
Set one channel of your radio transmitter to activate the Flip over function in
the Mode tab of Betaflight configurator The default Switch for Activate "Flip" is AUX4(Channel8) .
Activate
Disarm
Crashed
The Quad Flip over
S 5
Mobula6 HDZERO , so the ESC firmware is from
Click check to see the
details of the 4in1 ESC
CRAZYBEEF4FR ",then select the
Move stick
Arm
The Quad to flip the Quad
