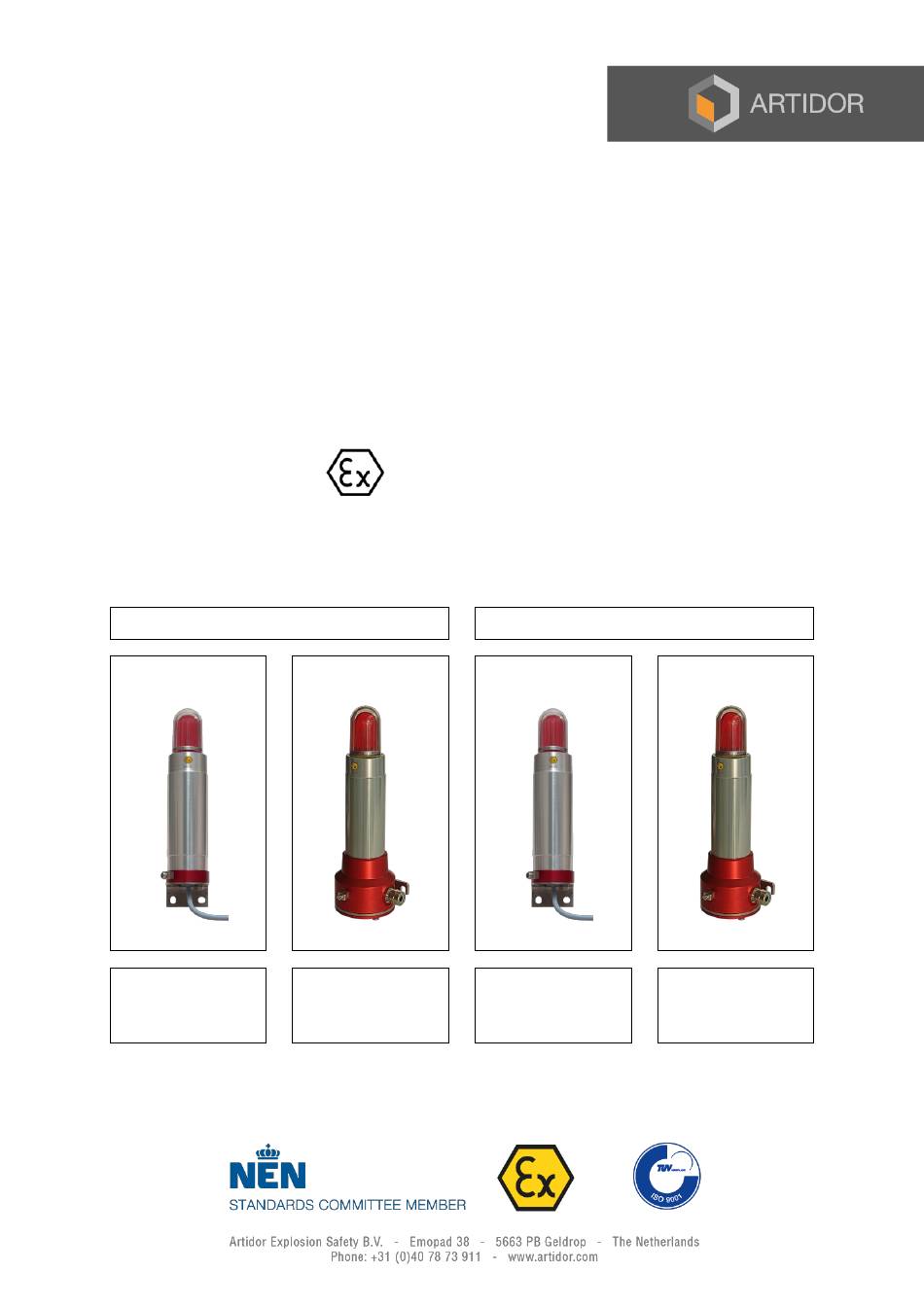

User Manual
Explosion-safe signal lights
Type series AR-077
II 2 G Ex d IIC T6
II 2 G Ex de IIC T6
II 2 D Ex tD A21 IP65 T 80 ºC
EC Type Certificate No. KEMA 07ATEX0046
XENON FLASHING SIGNAL LIGHT
LED STATUS LIGHT
With
With
With
With
factory sealed
connection terminals
factory sealed
cable gland &
cable Ex d
Ex de
cable Ex d
terminals Ex de
Advertisement
Related Manuals for Artidor AR-077 Series
Summary of Contents for Artidor AR-077 Series
- Page 1 User Manual Explosion-safe signal lights Type series AR-077 II 2 G Ex d IIC T6 II 2 G Ex de IIC T6 II 2 D Ex tD A21 IP65 T 80 ºC EC Type Certificate No. KEMA 07ATEX0046 XENON FLASHING SIGNAL LIGHT LED STATUS LIGHT With With...
- Page 2 If these instructions are not followed the explosion safety of the equipment cannot be guaranteed. The equipment could then endanger the life of the user and could cause the ignition of an explosive atmosphere. Consequently, Artidor as the manufacturer will waive any responsibility. User manual explosion-safe AR-077 signal light...
- Page 3 Description The explosion-safe signal lights AR-077 have been designed to attract attention in a safe manner in environments where explosion hazards may exist. For example to indicate a telephone call, indicating the status of a machine or report a malfunction or hazard that requires immediate action. The signal light comprises a metal housing with a transparent dome covering the light source.
- Page 4 Voltage 24V = 24 V AC/DC 48V = 48 V AC/DC 60V = 60 V AC/DC 115V = 115 V AC/DC 230V = 230 V AC Light Source XE = Xenon LED = LED’s Material 1 = aluminum anodized Mounting Bracket 1 = with bracket Version 0 = factory sealed cable (Ex d)
- Page 5 Flashing signal light (Xenon) Voltages 230 V 115 V 60 V 48 V 24 V Min / max 200…245 V 95…120 V 44…62 V 44…62 V 20…27 V Current 65 mA 130 mA 170 mA 170 mA 300 mA Frequency 50…60 Hz 0…60 Hz 0…60 Hz...
- Page 6 The parts used are all manufactured from corrosion resistant materials and are therefore resistant to the effects of most common chemicals. If use in special environmental conditions is required, please contact the manufacturer Artidor Explosion Safety B.V. User manual explosion-safe AR-077 signal light...
- Page 7 Technical Data Explosion safety category: ATEX II 2GD Protection against ignition: Ex d IIC T6, Ex tD A21 IP65 T80˚C (cable version) Ex de IIC T6, Ex tD A21 IP65 T80˚C (cable gland version) Conformity: 2014/34/EU (ATEX 114) and 2014/30/EU (EMC) Standards applied: EN 60079-0:2006, EN 60079-1:2004, EN 60079-7:2003, EN 61241-0:2006, EN 61241-1:2004 EN 50081-1 and EN-50082-1...
- Page 8 Dimensions Blind plug M20 x 1,5 Cable gland M20 x 1,5 User manual explosion-safe AR-077 signal light Issue April 2020 8 / 16...
- Page 9 Mounting bracket SS Factory sealed cable D = 6 mm 3 meter (Standard length) Holes 9 (2x) M8 (2x) User manual explosion-safe AR-077 signal light Issue April 2020 9 / 16...
- Page 10 One of the two marking labels shown below will be attached to the signal light. The specific marking label depends on the applicable model of the signal light ‘Ex d’ or ‘Ex de’. Ex d - version ARTIDOR Explosion Safety B.V. Emopad 38, 5663 PB Geldrop, The Netherlands, www.artidor.com II 2G Ex d IIC T6 II 2D Ex tD A21 IP65 T80°C...
- Page 11 Installation instructions General Installation of explosion-safe equipment must be carried out by personnel specially trained and qualified to do this following the relevant requirements of the installation standard EN 60079-14. For the installation and use of this product the relevant safety regulations and the generally recognized latest state of the technology apply.
- Page 12 For the model "with cable gland & terminals" Follow the instructions as stated under the previous heading ‘General’. The signal light with cable gland & terminals is suitable for wall-mounting by using the bracket. It is also suitable for assembly using a pipe clamp across the cylindrical part (D=60) of the housing. In that case, remove the mounting bracket and reverse the cover of the connection compartment along with its cover screws.
- Page 13 locked against unintentional opening and may only be opened under non-hazardous safe conditions. To do this follow the instructions as described under the heading ‘Repair’. Connection compartment with terminals (Ex de version) The compartment that contains the connection terminals is accessible to the user by unscrewing the three cover screws.
- Page 14 Make sure that the locking screw has been unscrewed before unscrewing the housing from the foot. In reverse, it is important that the locking screw is tightened after the housing has been screwed back on the foot sufficiently. Prior to screwing the foot into the housing, acid free grease must be applied to the thread preventing seizing of the threaded surfaces.
- Page 15 Instructions for connection of the Ex e connection terminals User manual explosion-safe AR-077 signal light Issue April 2020 15 / 16...
- Page 16 This document can be subject to change without notice. User manual explosion-safe AR-077 signal light Issue April 2020 16 / 16...
