PROTRONIX UR10-AIR User Manual

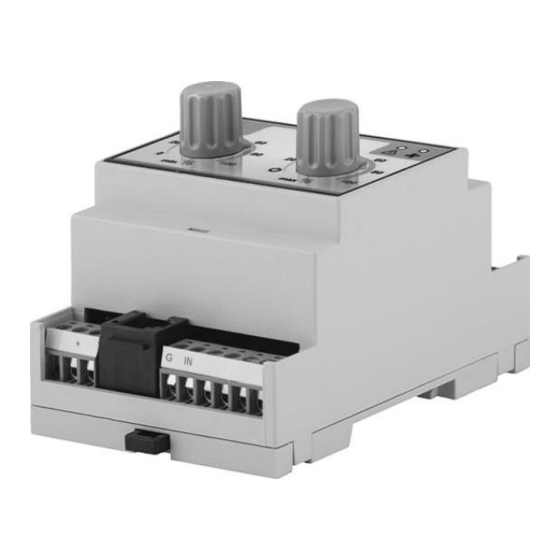

UR10-AIR is an electronic controller
designed for switching, for example fans,
depending on the concentration of
gaseous pollutants in air. It is suitable for
use in workplaces, households, public
areas, etc.

very easy to use

simple installation

easy DIN rail mounting

small dimensions

analog output 0 – 10 V

control output – NO-C-NC relay
contacts

simply adjustable switching limits

remembers the last state after AC
power is restored

Description:

The controller allows you to easily set the lower and
upper switching limit of the output relay with use of
two rotary elements. The output is equipped with a
NO-C-NC switching relay. Current status of the
controller is clearly displayed by indicator lights.
Controller is intended for air quality sensors with
standard analog output 0 – 10 V.
Explanation of abbreviations and technical terms can
be found on our website in the
Protronix s.r.o., Pardubická 177, Chrudim 537 01, Czech Republic
um-ur10-air-en-v1-210603.docx
Controller for air quality sensors
UR10-AIR |
Glossary section.

Technical data:

Parameter
Power supply
Power consumption
Analog output
Switching voltage
Switching current
Input resolution
Protective time*
Other parameters
Working temperature
Ingress protection
Dimensions
* From the moment of connecting the power supply, the
protective time of 60 seconds begins to run. During this
time, output relay switching is blocked. This time is used to
stabilize the parameters of air quality sensors after power
on.
www.protronix.cz/en/ www.careforair.eu/en/
User manual
Value Unit
230 V AC
5 VA
0 - 10 V DC
max. 250 V AC
max. 10 A
10 mV
60 s
-20 to +40 °C
IP20
257x100x60 mm
