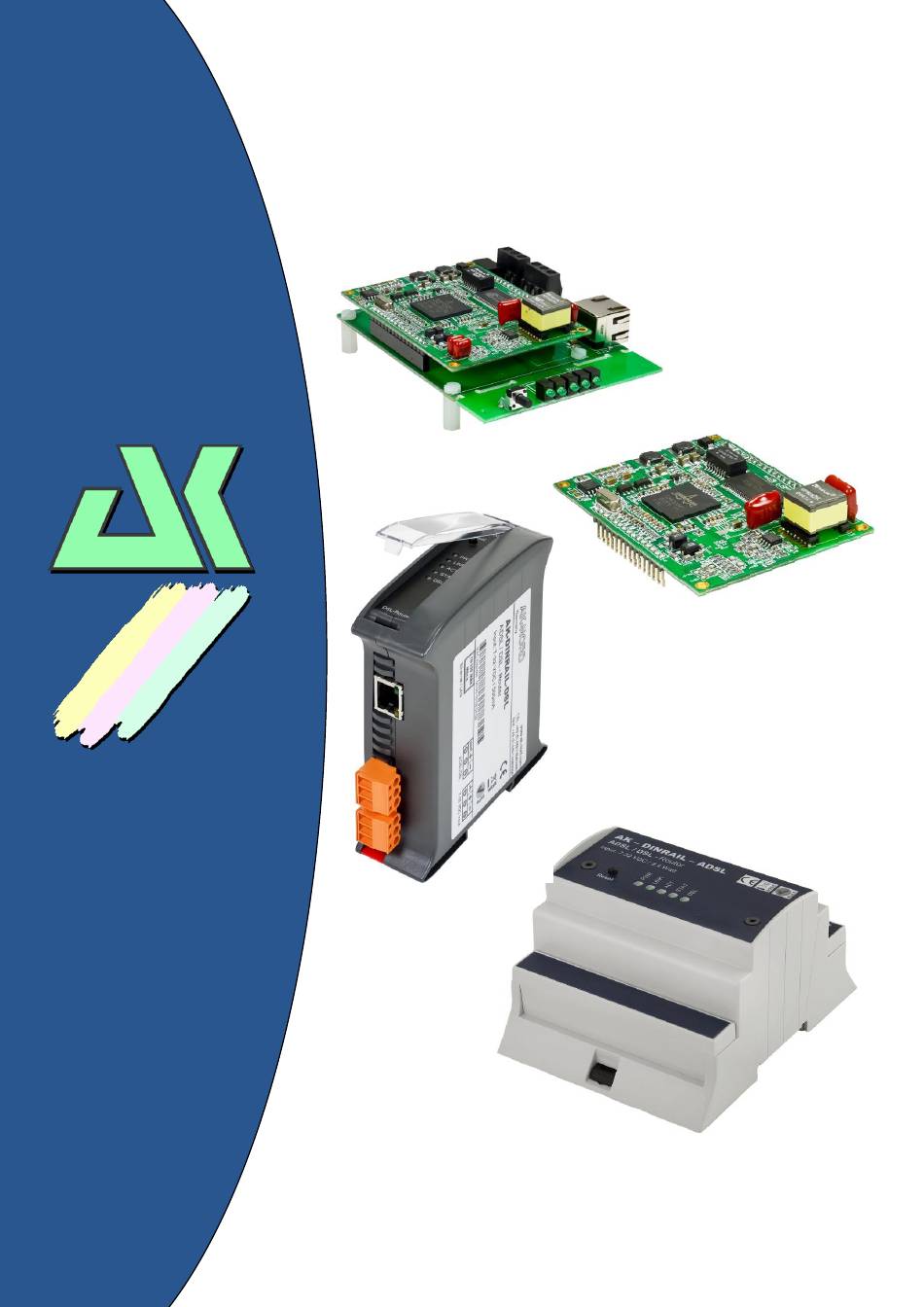

- Page 1 Manual AK-ADSL EVA-KIT-ADSL ADSL-Modul AK – Nord GmbH Werner-von-Siemens-Str. 14 49584 Fürstenau Germany Phone: +49 (0) 5901 9389010 Fax: +49 (0) 5901 93 89024 AK-DinRail - ADSL AK-RailPort - ADSL...
-
Page 2: Table Of Contents
AK-DinRail-ADSL ............................4 Description and connection assignment ....................... 5 AK-RailPort-ADSL ............................6 AK-RailPort-ADSL ............................6 Description and connection assignment ....................... 7 AK-ADSL module ............................8 ADSL module ..............................8 Pin assignment.............................. 9 Dimensioning .............................. 10 EVA-KIT-ADSL ............................... 11 AK-EVA-KIT-ADSL ............................. 11 Description and connection assignment ..................... - Page 3 Contents Exemplary provider settings ........................46 T-Online ..............................46 Alice ..48 1und1 .. 50 Versatel ............................... 52 Explanations ..............................54 AK-ADSL manual...
-
Page 4: Ak-Dinrail-Adsl
RFC2684 Bridge and Routed, LLC and VC Mux support, RFC2364 PPPoA Client, RFC2516 PPPoE Client, RFC2225/RFC1577 Classical IP, Transparent Bridge, PAP/CHAP/MS-CHAP for Password Authentication Connections: 1 x ADSL 1 x Power supply Removable female connector strips with screwed connection grid 5.08mm AK-ADSL manual... -
Page 5: Description And Connection Assignment
ADSL Shield / Housing DSL-Signal b ADSL connection DSL Signal a Power supply Power supply Shield / Housing + 7-32 0.96 watts - 7-32 0.96 watts Power LED Reset button Network link Network activities Status LED DSL activity AK-ADSL manual... -
Page 6: Ak-Railport-Adsl
RFC2684 Bridge and Routed, LLC and VC Mux support, RFC2364 PPPoA Client, RFC2516 PPPoE Client, RFC2225/RFC1577 Classical IP, Transparent Bridge, PAP/CHAP/MS-CHAP for Password Authentication Connections: 1 x ADSL 1 x Power supply Removable female connector strips with screwed connection grid 5.08mm AK-ADSL manual... -
Page 7: Description And Connection Assignment
Description and connection assignment Power supply Shield / Housing + 7-32 0,96 watts - 7-32 0,96 watts ADSL Shield / Housing DSL-Signal b DSL Signal a Network ADSL Power supply Power LED Network link Network activities Status LED DSL activity Reset AK-ADSL manual... -
Page 8: Ak-Adsl Module
AK-ADSL module ADSL module Technical description Dimensions: 60 x 80 x 14mm Temperature range: From -20°C to +70°C Power consumption: 5 volts (DC) / 2.5 watts Network connections: Ethernet 10/100MBit (M-DIX) Network speeds: 10/100 MBit Full/Half Duplex Supported protocols: Static IP, Dynamic RIP routing,... -
Page 9: Pin Assignment
AK-ADSL module Pin assignment PINS PINS +3.3V +5V_IN PWR_CTR ETH_RX - ETH_RX + ETH_TX - ETH_TX + LED_DATA +3.3V_OUT LED_DATA LED_DATA LED_DATA LED_DATA LED_DATA LED_Session_Fail LED_Session_Fail LED_Session_Fail LED_Session_Fail LED_Session_Fail LED_Session_Fail LED_Session_Fail LED_ FAIL RESET LED_PWR LED_PWR LED_PWR LED_PWR LED_PWR LED_PWR... -
Page 10: Dimensioning
AK-ADSL module Dimensioning AK-ADSL manual... -
Page 11: Eva-Kit-Adsl
ITU-T G.992.5 Annex M (ADSL2+M) Routing and encapsulation: RFC2684 Bridge and Routed, LLC and VC Mux support, RFC2364 PPPoA Client, RFC2516 PPPoE Client, RFC2225/RFC1577 Classical IP, Transparent Bridge, PAP/CHAP/MS-CHAP for Password Authentication Connections: 1 x ADSL 1 x Power supply AK-ADSL manual... -
Page 12: Description And Connection Assignment
EVA-KIT-ADSL Description and connection assignment Shield/ / Housing Power + Power - Shield/ / Housing DSL-Signal b DSL Signal a Power supply Network ADSL connection DSL activity Status LED Network activity Network link Reset button Power LED AK-ADSL manual... -
Page 13: Description For Adsl Connection
(T568A or T568B) with 8 PINs the two signals are transferred on the pin pair 1 (4=a, 5=b). Pair 1: 4,5 12345678 Pair 2: 1,2 Pair 3: 7,8 Pair 4: 3,6 Splitter ADSL connection Amt RJ11 DSL RJ45 DSL-Signal b DSL Signal a RJ45 plug AK-ADSL manual... -
Page 14: 2Nd Option
La Lb W E b2 a2 a b In order to connect the splitter and the DinRail-ADSL / EVA-KIT-ADSL two wires are clamped in the DSL a and b connections. Splitter strip ADSL connection Shield/ Housing DSL-Signal b DSL Signal a AK-ADSL manual... -
Page 15: Setting The Tcp/Ip
To do so, select under “Network and Internet“ -> “Network connections“ -> by right-clicking on your “LAN connection“ and go to “Properties“. Then the following window should open Then double-click on IPv4 or select IPv4 and click on “Properties“. AK-ADSL manual... - Page 16 Setting the TCP/IP 1.1 No IPv4 address is available / PC refers automatically to the IPv4 address: The IPv4 address is automatically assigned to your PC by the integrated DHCP server AK-ADSL manual...
- Page 17 Setting the TCP/IP 1.2 IPv4 address available: Click on “Extended…“ AK-ADSL manual...
- Page 18 Here you can see the already available IPv4 address(es) and then you have to add the IPv4 address for AK-DinRail-ADSL / EVA-KIT-ADSL required for the configuration. To do so, simply select “Add…“ and the IPv4 address 192.168.1.1 as well as the subnet mask 255.255.255.0 need to be entered: Select “Add“ AK-ADSL manual...
- Page 19 Example for installation: Then open up your web browser and enter http://192.168.1.1 in the address field. After successfully establishing a connection to the router, you are prompted to enter the user name and password. User name: admin Password: admin AK-ADSL manual...
-
Page 20: Configuration Adsl
On the first page which shows up the “Quick Setup“ menu is available and if you do not possess any exact configuration data, you can also perform this setup. The only disadvantage is the long time required to perform this setup. The “Advanced Setup” is considerable more rapid! AK-ADSL manual... -
Page 21: Device Info
- ARP: Overview of the address data records for the translation of IP to physical addresses. - DHCP: All DHCP-Clients are listed to which your router assigns an IP address. For the single Client the Hostname, MAC address, IP address and DHCP Lease Time are displayed. AK-ADSL manual... -
Page 22: Advanced Setup
3.2) LAN (Local Area Network) for the existing Ethernet connection to the router 3.3) Quality of Service to classify/prioritize the IP packages 3.4) Routing to determine the path fort he message flow 3.5) DSL for an exact setting of the DSL AK-ADSL manual... -
Page 23: The Wan Menu
Configuration ADSL 3.1) The WAN menu You can generally manage accounts with the functions Add, Remove, Save/Reboot and Edit, if there is already an account existing. AK-ADSL manual... -
Page 24: Adding A Wan Account
Enter for VPI (Virtual Path Identifier), VCI (Virtual Channel Identifier) as well as Service Category and Enable QoS the data from ISP(Internet Service Provider). If your ISP did not make any indications for the last two items, just leave them as they are. AK-ADSL manual... - Page 25 3.1e) Bridging The selection of your connection type is depending on your ISP or on the fact, if you would like to use your router as Bridge. Most providers in Germany offer PPPoE connections in the most common cases. AK-ADSL manual...
-
Page 26: Service Category / Encapsulation
Encapsulation We recommend to use the standard setting “LLC/ SNAP-Bridging“. If you would like to perform another setting, please be informed beforehand by your Internet service provider. AK-ADSL manual... -
Page 27: A/B) Pppoa / Pppoe
(Only for PPPoE there is the option to use “Bridge PPPoE Frames Between WAN and Local Ports“, which allows you to start PPPoE connections from your PC! And the field PPP Service Name which is left empty or assigned by default, depending on your provider.) AK-ADSL manual... - Page 28 Enable IGMP Multicast - Internet Group Management Protocol must only be set, if the devices support Multicast. Enable WAN Service – should be activated (if you have several WAN accounts, you can also deactivate them using this function) Service Name – Name of the Internet account AK-ADSL manual...
-
Page 29: C) Mer
Configuration ADSL 3.1c) MER If you an MER (MAC Encapsulation Routing), you have configure the IP address, Gateway and DNS server by indicating your ISP in the following step. AK-ADSL manual... - Page 30 One step further you have the following setting options: Enable NAT Enable Firewall IGMP Multicast - Internet Group Management Protocol must only be set, if the devices support Multicast. WAN Service – should be activated Service Name –Name of the Internet account AK-ADSL manual...
-
Page 31: D) Ipoa
Configuration ADSL 3.1d) IPoA For the IP over ATM connection you have to set your WAN data and, if required, Gateway and DNS server according to the indications of the ISP. AK-ADSL manual... - Page 32 IGMP Multicast - Internet Group Management Protocol must only be set, if the devices support Multicast. WAN Service – should be activated (if you have several WAN accounts, you can also deactivate them using this function) Service Name –Name of the Internet account AK-ADSL manual...
-
Page 33: E) Bridging
By selecting “Bridging“, you have the option to use your router as Bridge. Bridge Service – should be activated (if you have several WAN accounts, you can also deactivate them using this function) Service Name – Name of the Bridge AK-ADSL manual... - Page 34 Flash memory and are coming into force after a restart of the router. Since you are back to your WAN menu, click on Save/Reboot in order to activate the setting. This process will take about two minutes. AK-ADSL manual...
-
Page 35: The Lan Menu
DHCP Settings – Dynamic Host Configuration Protocol is the integration of PC in an existing network without its manual configuration. Static IP Lease List – Reserving a certain IP address for a PC. Second IP Address and Subnet Mask – Adding another IP address and subnet mask for the router. AK-ADSL manual... -
Page 36: The Qos Menu
You can prioritize critical traffic such as Voice or the streaming of media and make available a lower latency and simultaneously for the remaining non-critical traffic, such as Web traffic or data transfer by applying the Best-Effort principle. AK-ADSL manual... -
Page 37: Routing
In the Routing menu the standard setting is “Enable Automatic Assigned Default Gateway“. At this, the system automatically searches for a path for the message flow. However, you can determine a default Gateway yourself. It is also possible to set a static route. AK-ADSL manual... -
Page 38: Dsl
Configuration ADSL 3.5) DSL Serves to configure your DSL. In the Advanced Settings the following options are available: AK-ADSL manual... -
Page 39: Nat
Serves for NAT configuration of virtual servers in order to direct the incoming traffic as well as to activate the Port Triggering for programs (some programs require certain port releases in order to be able to control them) and the DMZ Host determination (DMZ = Demilitarized Zone). AK-ADSL manual... -
Page 40: Security
Configuration ADSL 3.7) Security The Security menu is used to set the IP filtering for incoming as well as for outgoing traffic. AK-ADSL manual... -
Page 41: Parental Control
Configuration ADSL 3.8) Parental Control Using this menu, you can limit the Internet usage for participants in the Internet and block Internet sites using the URL filter. AK-ADSL manual... -
Page 42: Dns
Configuration ADSL 3.9) DNS Using the DNS menu, it is possible to configure the DNS server. Furthermore, you can also set up a Dynamic DNS. Standard setting is “Enable Automatic Assigned DNS“. AK-ADSL manual... -
Page 43: Dyndns
Konfiguration ADSL 3.10) DynDNS Please press „ADD“ in order to create an DynDNS - Connection AK-ADSL manual... -
Page 44: Diagnostics
Configuration ADSL 4) Diagnostics Using the function Diagnostics you can test the settings fort he accounts. The router shows, if the settings are right by indicating “ FAIL“ or “PASS“. Under "Help" you will find possible error sources. AK-ADSL manual... -
Page 45: Management
Under Management you have the option to edit the Backup/Update settings to reset the router to the default settings to create System-Logs, to determine Internet time, to set the access rights for the router, to perform an update and to save/restart. AK-ADSL manual... -
Page 46: Exemplary Provider Settings
Username/Password, PPPoE service name made by your Internet provider!!! For Encapsulation Mode and Service Category, please use our standard setting: - Encapsulation Mode: LLC/SNAP-Bridging - ATM Service Category: UBR without PCR T-Online Port: VPI: VCI: -> PPPoE connection AK-ADSL manual... - Page 47 Connection recognition and T-Online number with 12 digits (if the T-Online number does not have 12 digits, you have to place a # between the T-Online number and the associated user) PPP Password: Assigned password of T-Online PPPoE Service Name: z.B.: 00097655234502652138975#0001@t-online.de 975#0001@t-online.de “Next“ AK-ADSL manual...
-
Page 48: Alice
Exemplary provider settings Alice Port: VPI: VCI: -> PPPoE connection AK-ADSL manual... - Page 49 PPP Password: Assigned password of Alice (if you did not receive a password from Alice, please enter something. Furthermore, you should observe the information in the letter of Alice regarding your access data) PPPoE Service Name: e.g.: 123456789@alice-dsl.de “Next“ AK-ADSL manual...
-
Page 50: 1Und1
Exemplary provider settings 1und1 Port: VPI: VCI: -> PPPoE connection AK-ADSL manual... - Page 51 Exemplary provider settings PPP Username: 1und1/Username@online.de or Username@onlinehome.de PPP Password: Assigned password of 1und1 PPPoE Service Name: e.g.: 1und1/1234-5678@online.de “Next“ AK-ADSL manual...
-
Page 52: Versatel
Exemplary provider settings Versatel Port: VPI: VCI: -> PPPoE connection AK-ADSL manual... - Page 53 Exemplary provider settings PPP Username: Assigned user name of Versatel PPP Password: Assigned password of Versatel PPPoE Servicename: johndoe@versatel e.g.: “Next“ AK-ADSL manual...
-
Page 54: Explanations
MER – The ISP uses the Mac address of a PC in order to authenticate it in the network; this function is only used, if the ISP does not support IP -Routing. MER works similar to NAT: more safety and more IP addresses are available in the internal network. AK-ADSL manual...
