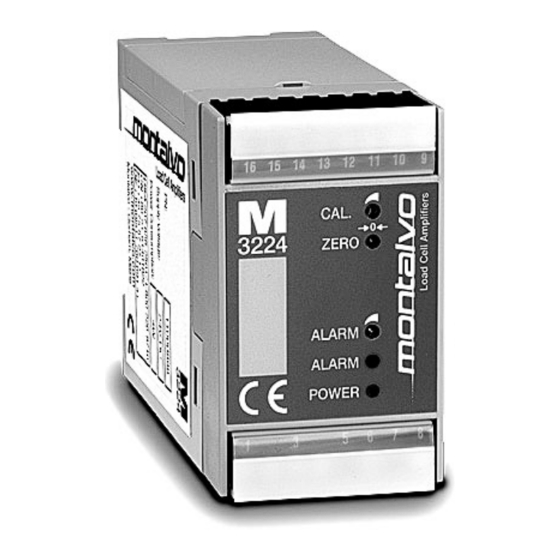

M Series Amplifi er Modules
For Models M3200 / M3224 / M3200LTR / M3300 / M3324
Publication Date: 10/21/2019
www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo
TECHNICAL MANUAL
Need help installing?
207-856-2501 / 800-226-8710
+86-21-52188010
+45 75 57 27 11
+49 (0)511 760 691 41
www.montalvo.com
1947
.
EST
Advertisement
Table of Contents
Related Manuals for Montalvo M Series
Summary of Contents for Montalvo M Series
- Page 1 +45 75 57 27 11 +49 (0)511 760 691 41 www.montalvo.com M Series Amplifi er Modules For Models M3200 / M3224 / M3200LTR / M3300 / M3324 Publication Date: 10/21/2019 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo...
- Page 2 M Series Amplifi er NOTES __ ___________________________________________________________________________________ Technical Manual 1947 p. 2 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo...
-
Page 3: Table Of Contents
M3200 ......................6 M3224 ......................8 M3200LTR ....................10 M3300 ....................12 M3324 ....................14 Calibration Zero Point ....................16 Calibration ....................16 Alarm Level Adjustment ................17 Specifi cations Technical Data ..................18 1947 p. 3 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo... -
Page 4: Configuration
(115V or 230V - ships with both) DIP Switches (1 thru 6) Cover (Fuse NOT installed on new units - must be installed before operation) p. 4 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo... -
Page 5: Dimensions
M Series Amplifi er CONFIGURATION __ ___________________________________________________________________________________ Technical Manual Dimensions Load Cell Amplifiers 1947 p. 5 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo... -
Page 6: Wiring
0 to 10V/ x1-60 0 to 100μA 100kΩ +100% +100% -100% Alarm Output Alarm Zero 24VDC ±15% Level Load > 650Ω Load Cell -Signal ±250mV 1947 p. 6 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo... -
Page 7: M3200
M Series Amplifi er WIRING __ ___________________________________________________________________________________ Technical Manual M3200 Wiring for Montalvo ES / U / DRD / DRC** Series Load Cells (Dual Half Bridge Semiconductor Strain Gauge Load Cells) (15) Ground (0V DC) (12) - 2.5V Supply (excitation) (11) - Input ±... - Page 8 0 to 10V/0 to 100μA x1-60 100kΩ +100% +100% -100% Alarm Output Alarm Zero 24VDC ±15% Level Load > 650Ω Load Cell -Signal ±250mV 1947 p. 8 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo...
-
Page 9: M3224
M Series Amplifi er WIRING __ ___________________________________________________________________________________ Technical Manual M3224 Wiring for Montalvo ES / U / DRD / DRC** Series Load Cells (Dual Half Bridge Semiconductor Strain Gauge Load Cells) (15) Ground (0V DC) (12) - 2.5V Supply (excitation) (11) - Input ±... - Page 10 Level Load > 650Ω Load Cell Left Gain Gain -Signal x1-60 Left Output ±250mV 0 to 10V/ 100kΩ +100% -100% 0 to 100μA Zero 1947 p. 10 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo...
- Page 11 WIRING __ ___________________________________________________________________________________ Technical Manual M3200LTR Wiring for Montalvo ES / U / DRD / DRC** Series Load Cells (Dual Half Bridge Semiconductor Strain Gauge Load Cells) (15) Ground (0V DC) (12) - 2.5V Supply (excitation) (11) Left - Input ± 250mV (signal) (10) Right + Input ±...
- Page 12 0 to 10V/ x1-60 0 to 100μA 100kΩ +100% +200% -200% Alarm Output Alarm Zero 24VDC ±15% Level Load > 650Ω Load Cell -Signal ±30mV 1947 p. 12 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo...
-
Page 13: M3300
(10) + Input ± 30mV (signal) (9) + 5V Supply (excitation) BK WH BN 16 15 14 13 12 11 10 9 Load Cell 1947 p. 13 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo... - Page 14 0 to 10V/ x1-60 0 to 100μA 100kΩ +100% +200% -200% Alarm Output Alarm Zero 24VDC ±15% Level Load > 650Ω Load Cell -Signal ±30mV 1947 p. 14 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo...
-
Page 15: M3324
(10) + Input ± 30mV (signal) (9) + 5V Supply (excitation) BK WH BN 16 15 14 13 12 11 10 9 Load Cell 1947 p. 15 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo... -
Page 16: Zero Point
CALIBRATION __ ___________________________________________________________________________________ Technical Manual Zero Point 1 Connect power and load cells to M Series Amplifi er as described in WIRING section. 2 With web removed and no tension on load cell roller, adjust ZERO potentiometer using a voltmeter:... -
Page 17: Alarm Level Adjustment
Output voltage value = V. Calculated by the following formula: V = (calibration weight/CAL. full-scale value) x 10 volts Note: A remote meter can be used to calibrate the M Series. Connect meter (see WIRING section) and adjust CAL. potentiometer until meter displays calibration weight. -
Page 18: Specifications
Gain Adjustment M3300 / M3324 90 to 4400 Accuracy Better Than 1% Alarm Output Voltage 24 VDC ±15% Alarm Output Load > 650 Ω 1947 p. 18 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo... - Page 19 M Series Amplifi er NOTES __ ___________________________________________________________________________________ Technical Manual 1947 p. 19 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo...
- Page 20 Tel: +45 75 57 27 11 info.eu@montalvo.com Montalvo Deutschland Hannover, Germany Tel: +49 (0)511 760 691 41 info.de@montalvo.com Montalvo (Shanghai) Trading Co., Ltd. Shanghai, China Tel: +86-21-52188010 info.cn@montalvo.com 1947 p. 20 www.montalvo.com / Technical details subject to change without notice. Mamp-technical manual-US-09 © Montalvo...
