Mills S13-0966 Instructions

S13-0966 Mills Hydraulic Manhole Cover 4C

Parts Listing

1.
1 x S13-0966A Main Beam Assembly
2.
1 x S13-0966B Main Frame Assembly combining Hydraulic Jack
3.
2 x S13-0966C Wheel Assemblies with fixing screws
4. 2 x S13-0966D Hook Box Assemblies C/W 400kg Fused Link
5.
1 x S13-0966E Pulling Handle
6.
1 x S13-0966F Hydraulic Pump Handle
7.
1 x S13-0971 Part 1A – Pair of lifting keys for use on Elkington type manhole covers
8.
1 x S13-0970 Part 2A – Pair of lifting keys for use on Unit type manhole covers
9.
1 x S13-0969 Part 3B – Pair of lifting keys for use on triangular type covers such as Silent Knight and
Covers Carriageway C and D.
10. 1 x S13-0968 Part 4A – Pair of lifting keys for use on old style BT manhole covers.

Assembly Instructions

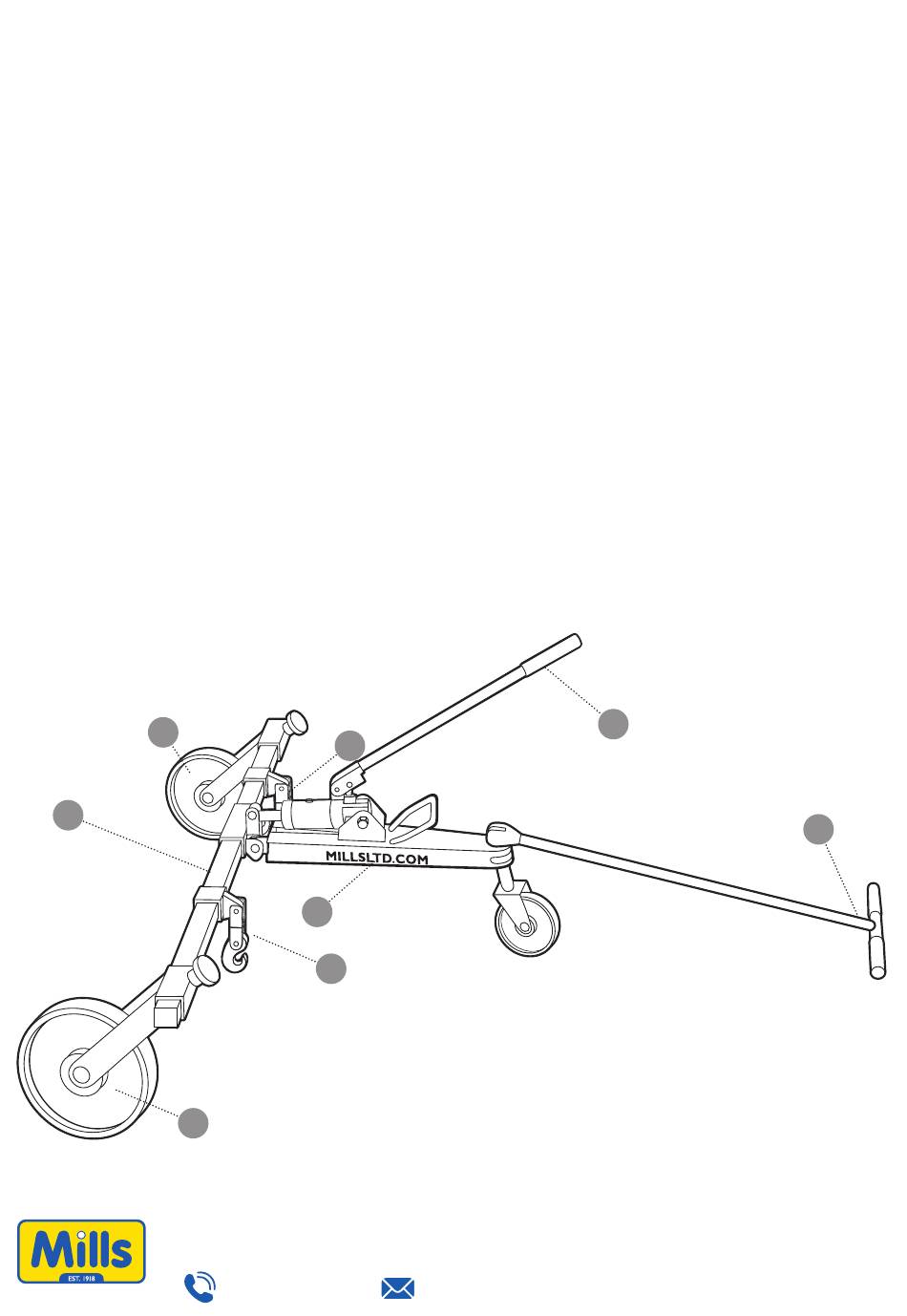

1. Insert the main beam assembly (1) centrally into the main frame combining hydraulic unit assembly (2)
2. Slide the hook box assemblies (4) onto the main beam assembly (1) followed by the wheel assemblies (3)
Please ensure the hook assemblies (4) face backwards and the wheels assemblies (4) face forward of the beam.
3. Finally, instal the pulling and pumping handles (5 and 6) .
